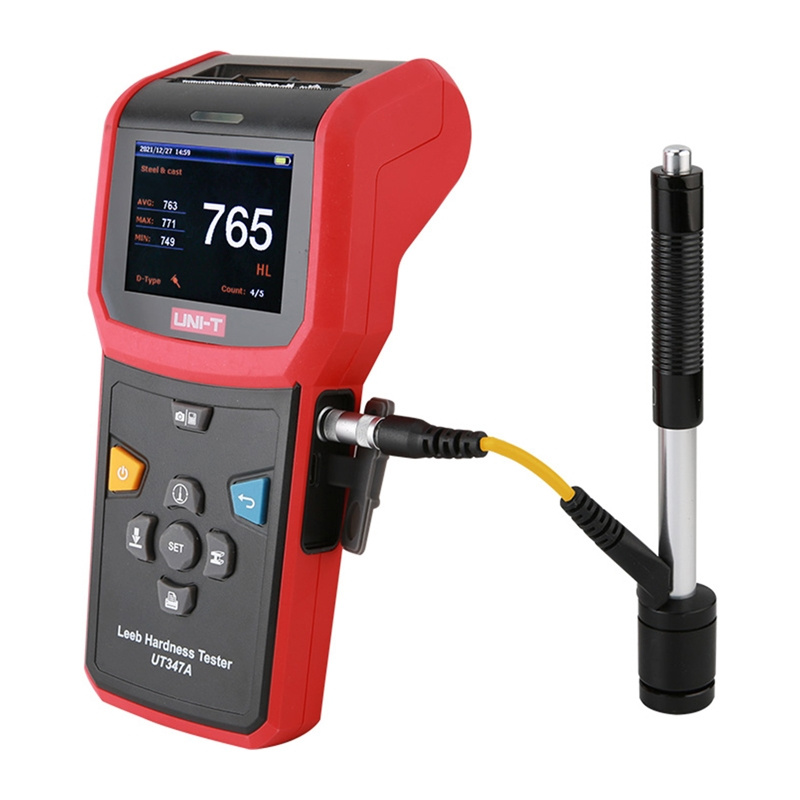

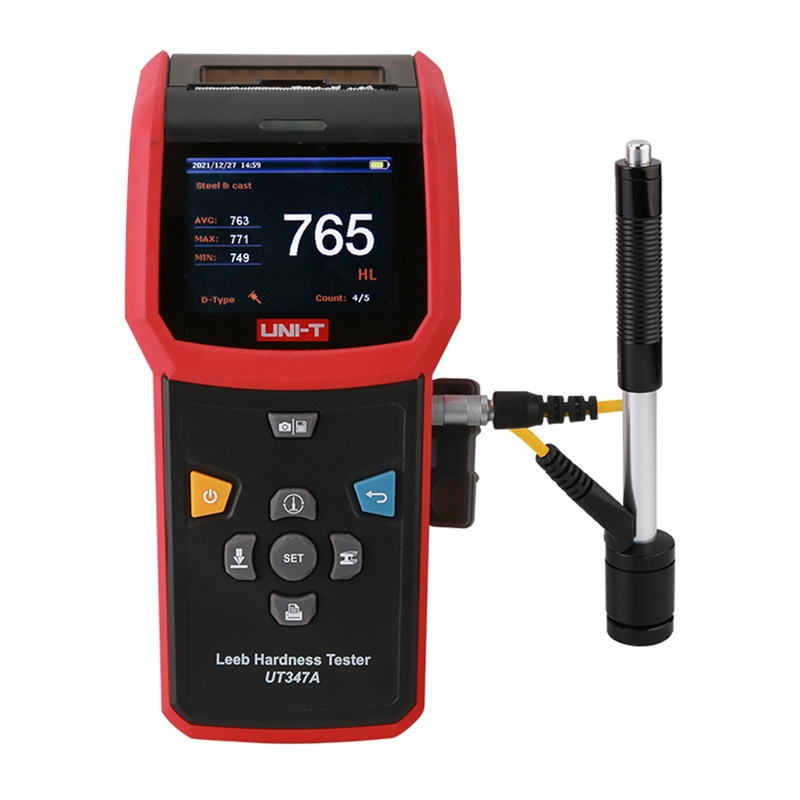

Uni-T UT347A Leeb Hardness Tester with Bluetooth and Thermal Printer
414.30 €
Products ID: 177025
In supplier warehouse
Available to order: 10+ pcs.
Delivery Time 5–12 business days
Delivery options to:

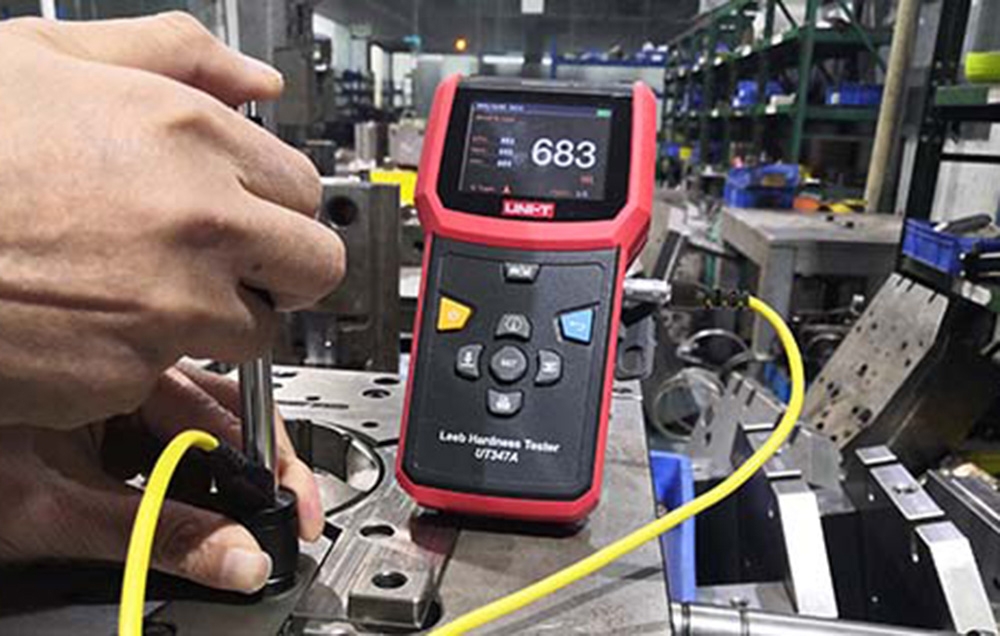

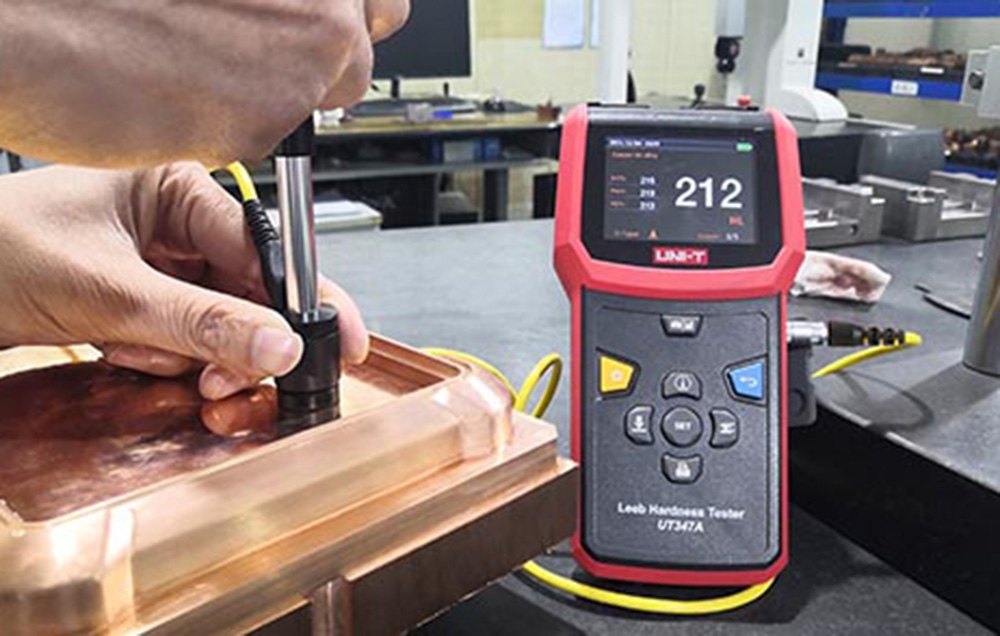

Choose countryThe Uni-T UT347A is a portable Leeb hardness tester designed for field inspections and testing large metal components such as turbines, pressure vessels, and shafts.
Key Features
- Supports 6 hardness scales (HL, HB, HRC, HRB, HV, HS) and tensile strength measurement
- Built-in thermal printer for on-site report generation

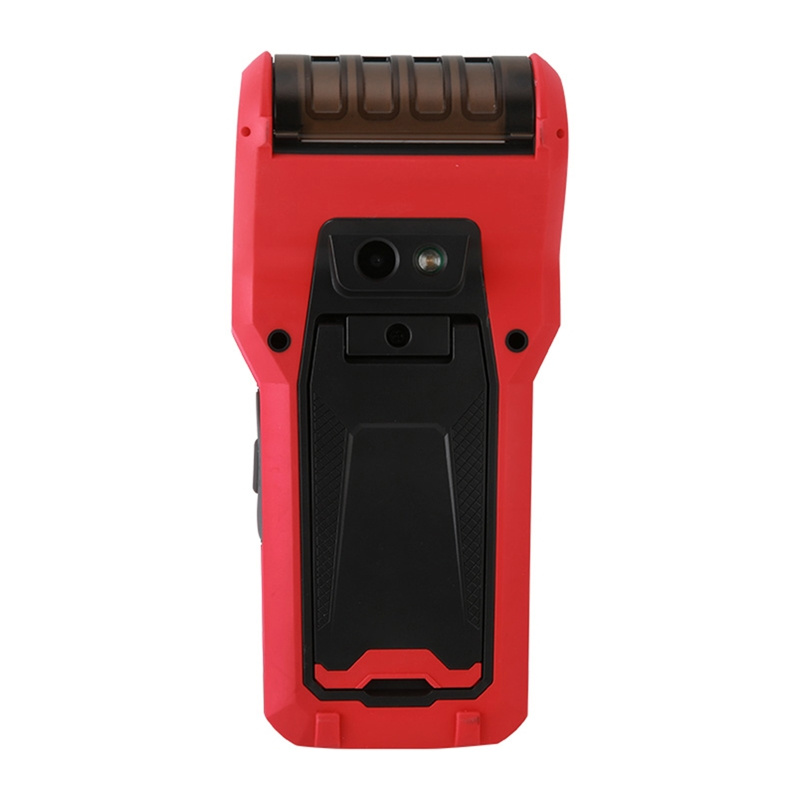

- 2.8″ TFT color screen and 640×480 camera to document test points
- Bluetooth and USB connectivity for PC software and mobile app integration
- Internal memory storing up to 900 data sets with 5 impact directions
- Powered by a rechargeable 3.7V 2500 mAh Li-Po battery
| Manufacturer | Uni-T |
|---|---|
| Model | UT347A |
| Hardness scales | HL, HB, HRC, HRB, HV, HS |
| Strength measurement | σb (tensile strength) |
| Impact angles | 0°, 45°, 90°, 135°, 180° |
| Measurement modes | statistical, multi-unit, line graph, histogram |
| Statistics | max / min / avg |
| Memory | up to 900 data sets |
| Camera | 640×480 (up to 900 BMP images) |
| Display | 2.8″ TFT 320×240 |
| Printing | 57 mm thermal paper |
| Connectivity | Bluetooth (APP), USB, PC software |
| Over-limit alarms | yes (3-color LED) |
| Backlight | adjustable |
| Voice prompts | yes |
| Power supply | 3.7V 2500 mAh Li-Po battery |
| Charging | DC 5V 2A (USB-C), approx. 2–4 hours |
| Auto power off | 1 / 5 / 10 / 30 min or off |
| Drop test | 1 m |
| Certifications | CE (pending), UKCA |
| Materials | steel, alloy steel, stainless steel, cast iron, aluminum, copper, and their alloys |
| EAN | 6935750534724 |
|---|
What is included in the Uni-T UT347A package?
The package includes the UT347A hardness tester, a Type D impact probe, a Leeb hardness reference block, a nylon brush, a USB-C cable, a user manual, downloadable guidelines, and 2 rolls of thermal printer paper.
How many measurement results can be stored in the device?
The internal memory can store up to 900 data sets and up to 900 BMP images from the built-in camera.
