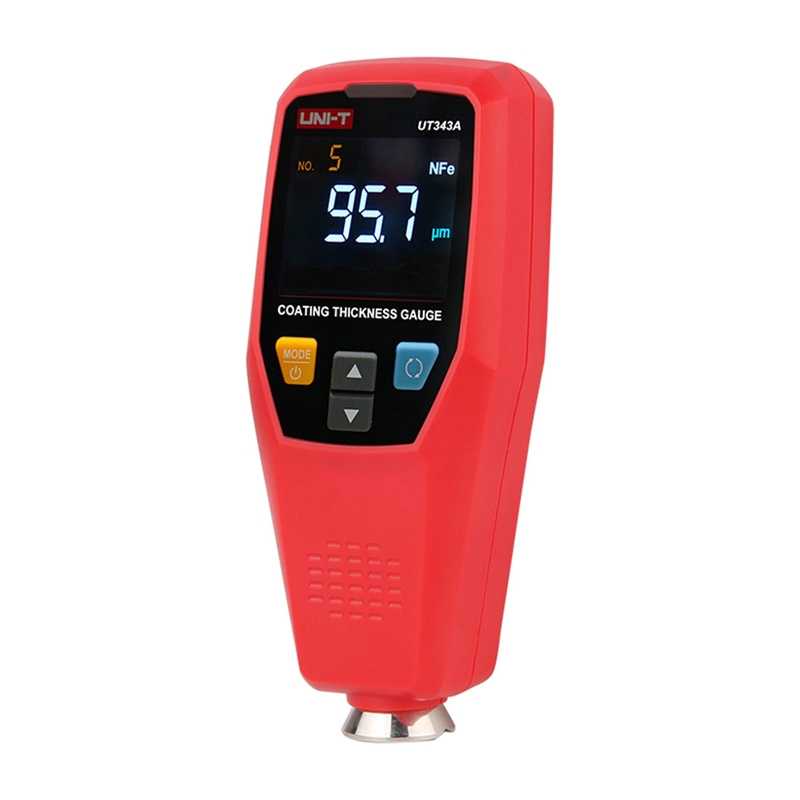

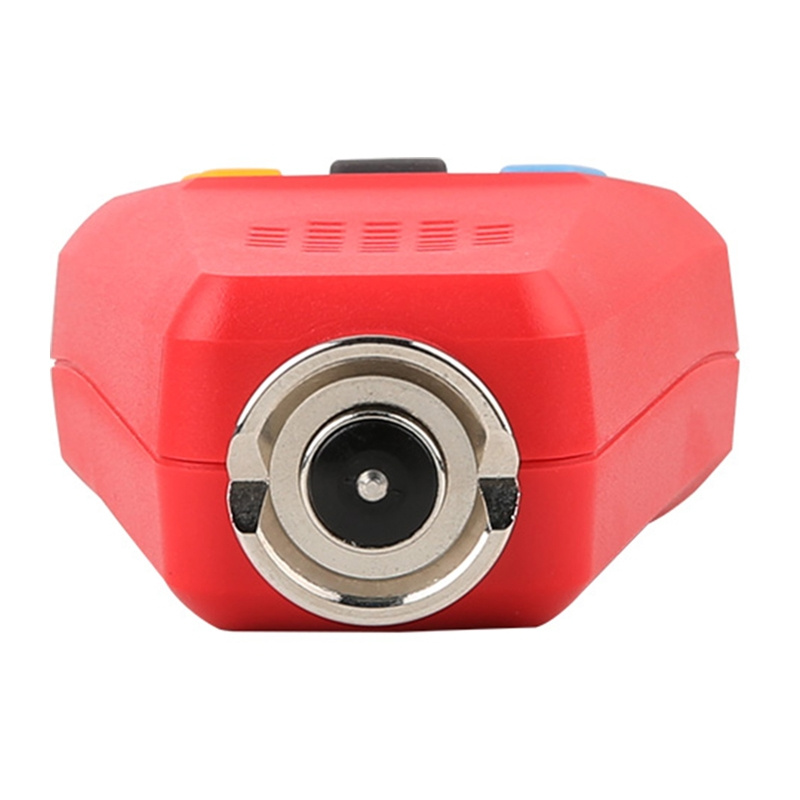

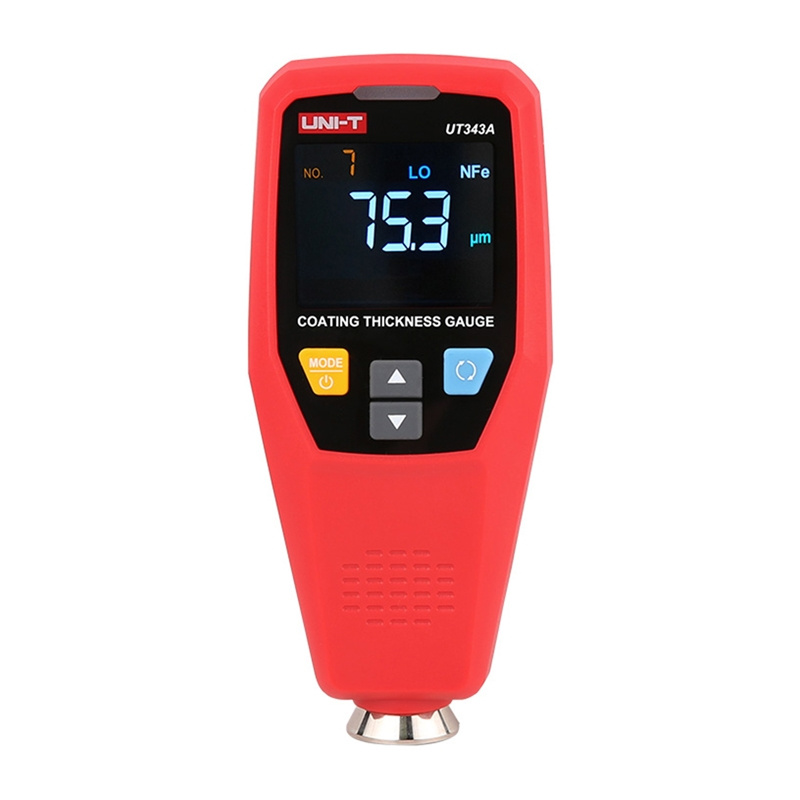

Uni-T UT343A Coating Thickness Gauge
318.00 €
Products ID: 176304
In supplier warehouse
Available to order: 10+ pcs.
Delivery Time 5–12 business days
Delivery options to:
Choose countryThe Uni-T UT343A is a compact coating thickness gauge designed to measure coating thickness on ferrous and non-ferrous metals up to 1750 µm.
Key Features
- Measurement range from 0 to 1750 µm with ±(3%H+1) µm accuracy
- Compatible with ferrous and non-ferrous metals
- Single-point and continuous measurement modes
- Max, Min, and Average (Max/Min/Avg) statistical analysis
- Internal memory storing up to 199 result groups
- Rotatable EBTN display with adjustable brightness
- Audible and LED limit alarm indicators
- Auto power off and low battery indicator
| Manufacturer | Uni-T |
|---|---|
| Model | UT343A |
| Measurement range | 0–1750 µm |
| Accuracy | ±(3%H+1) µm |
| Measurement methods | single / continuous |
| Operating modes | Max / Min / Avg |
| Supported metals | ferrous and non-ferrous |
| Display | EBTN |
| LCD brightness adjustment | yes |
| Data memory | 199 groups |
| Auto power off | yes |
| Low battery indicator | yes |
| Power supply | 2 × 1.5V (LR03) |
| Dimensions | 117 × 53 × 37 mm |
| Weight | 111 g |
| EAN | 6935750534328 |
|---|
What metal types does the Uni-T UT343A support?
The gauge supports measurements on both ferrous and non-ferrous metal substrates.
What items are included in the package?
The package includes the Uni-T UT343A meter, a ferrous substrate, a non-ferrous substrate, a user manual, and the manufacturer's packaging.
How many measurement results can be stored?
The device features an internal memory that can store up to 199 measurement groups.
