UNI-T UT25CL Wire and Cable Detector
Price: 150.00 €
| Products ID: | 175536 |
|---|---|
| Manufactured by: | Uni-T |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 6935750525081 |
Delivery options to:

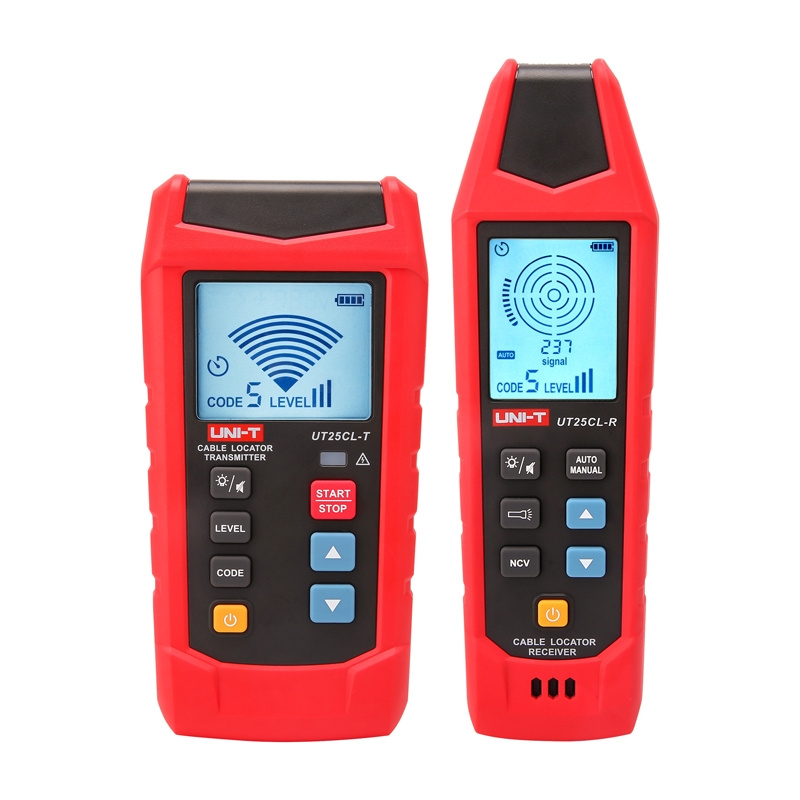

Choose countryThe UNI-T UT25CL cable detector combines a transmitter and a receiver for locating cables and diagnosing installation faults.
Key Features
- Detects wires in walls, locates breaks and short circuits, and traces underground cables
- Traces metal water and heating pipes and detects faults in metal floor heating systems
- Live wire detection range from AC/DC 8V to 480V
- Supports operation with up to 8 transmitters on a single receiver
- Built-in flashlight and screen backlighting for low-light environments
- CAT III 480V surge category and IP54 ingress protection rating
| Manufacturer | UNI-T |
|---|---|
| Model | UT25CL |
| Signal frequency | 33KHz |
| Live wire voltage range | AC/DC 8-480V; AC: 50/60Hz |
| NCV voltage range | 80V-1000V, 50Hz/60Hz |
| Tracking depth (unipolar mode) | approx. 0-2.5 m |
| Tracking depth (bipolar mode) | approx. 0-0.5 m |
| Voltage detection depth | approx. 0-0.4 m |
| Sensitivity adjustment | Receiver: 3 levels; Transmitter: 9 levels |
| Surge category | CAT III 480V |
| Protection class | IP54 |
| Pollution class | 2 |
| Certifications | CE, RoHS |
What is the maximum tracking depth of the UT25CL?
In unipolar mode, the tracking depth is approximately 0–2.5 m, while in bipolar mode it is approximately 0–0.5 m.
How many transmitters can be used with one receiver?
The receiver supports operation with up to 8 transmitter units.
