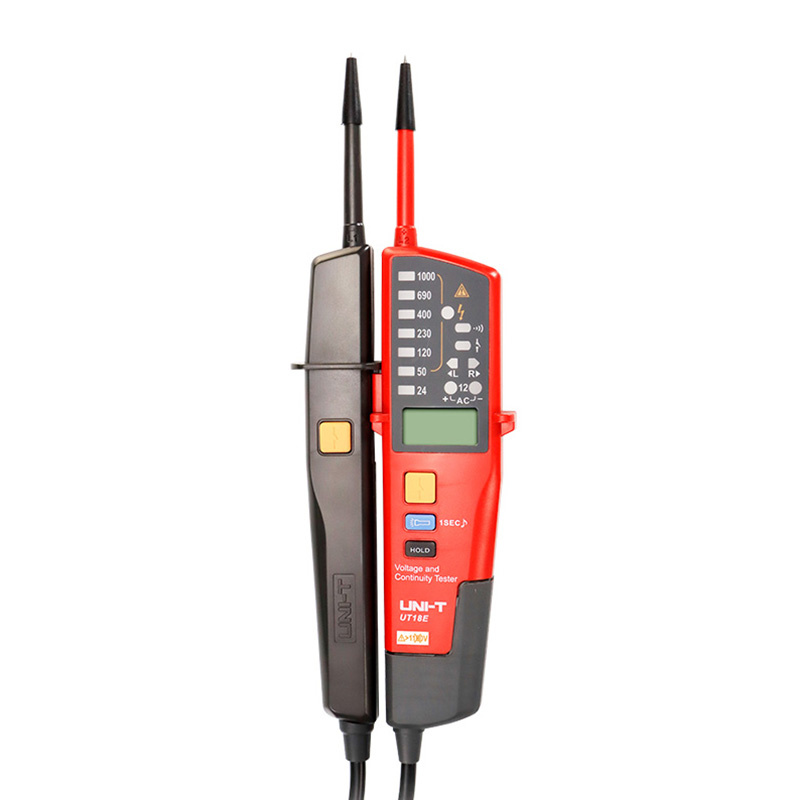

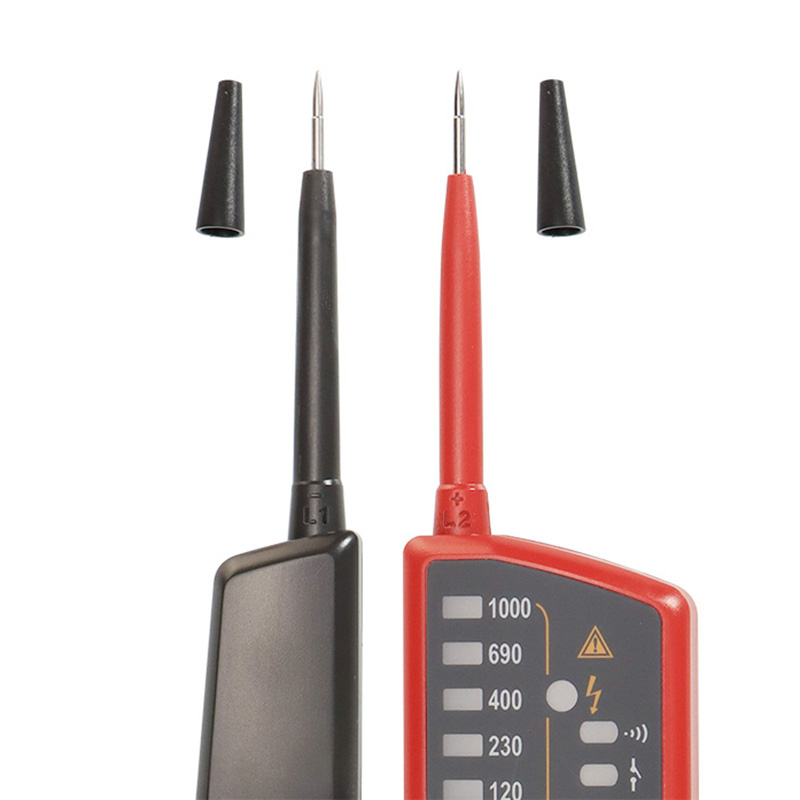

UNI-T UT18E Voltage and Continuity Tester
Price: 50.80 €
| Products ID: | 175239 |
|---|---|
| Manufactured by: | Uni-T |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 6935750518076 |
Delivery options to:
Choose countryThe UNI-T UT18E is a voltage and continuity tester designed for quick diagnostics of electrical installations. It enables measurement of AC/DC voltages up to 1000 V, circuit continuity testing, phase rotation checking, and RCD operation testing, providing clear readings via an LCD screen and LED indicators.
Key Features
- Measures AC and DC voltage from 6 V to 1000 V with automatic polarity detection
- Circuit continuity testing from 0 Ω to 60 kΩ with audible and visual alerts
- Residual current device (RCD) testing at 230 V (50–400 Hz)
- 3-phase rotation test from 100 V AC to 400 V AC (50/60 Hz)
- LCD screen showing voltage and frequency from 40 Hz to 400 Hz
- IP65-rated dust and splash resistance with built-in flashlight
| Manufacturer | UNI-T |
|---|---|
| Model | UT18E |
| Voltage range (AC/DC) | 6V, 12V, 24V, 50V, 120V, 230V, 400V, 690V, 1000V |
| Phase rotation test | 100V ac～400V ac (3 phases); frequency 50/60 Hz |
| Continuity test | Resistance: 0Ω~60kΩ; sound and light indicator |
| RCD test | Operating voltage: 230V (50~400 Hz) |
| Polarity detection | Positive and negative |
| Self-verification | LED or LCD |
| Power failure test | 100~1000V |
| Standby current | ＜10μA |
| Overvoltage protection | 1100 V |
| LCD display (voltage) | 6V~1000V |
| LCD display (frequency) | 40 Hz ~ 400 Hz |
| Waterproof rating | IP65 |
| Dimensions | 272 x 85 x 31 mm |
| Weight (with batteries) | 277 g |
What is the voltage measurement range of the UNI-T UT18E?
The UT18E measures both AC and DC voltages from 6 V up to 1000 V across 8 stepped levels and on the LCD display.
Does this tester support continuity testing?
Yes, it tests circuit continuity within a 0 Ω to 60 kΩ range using both an audible buzzer and an LED light indicator.
