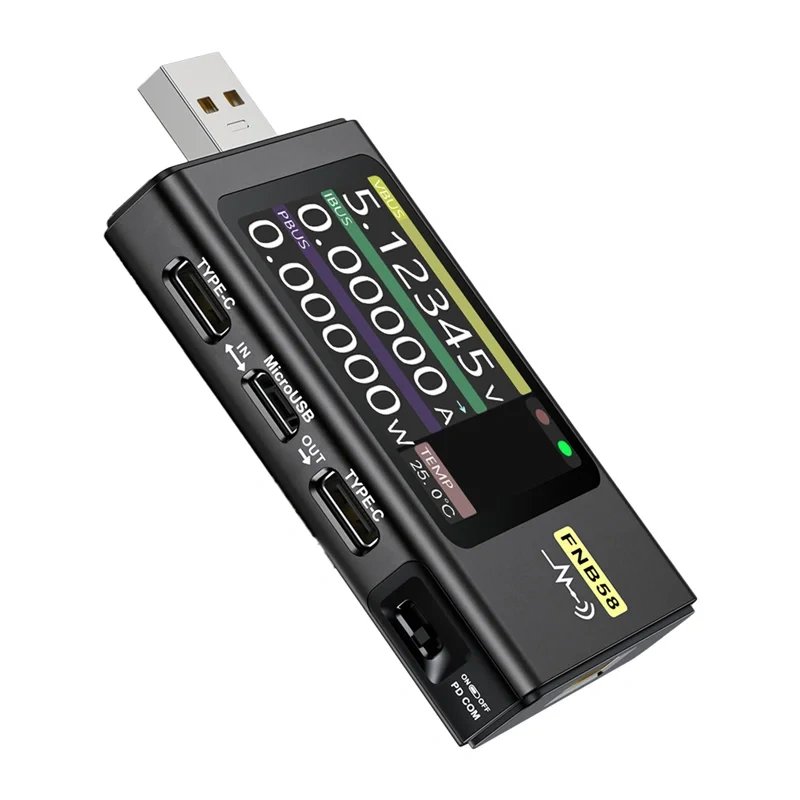

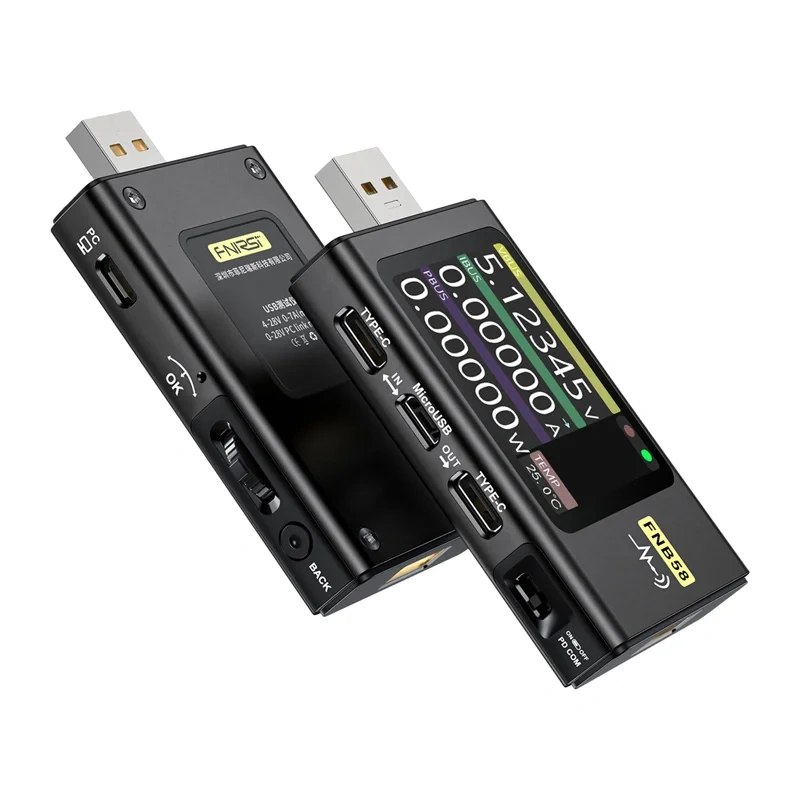

FNIRSI FNB58 USB Port Tester, 2.0" LCD, PD3.1 240W, Black
Price: 49.40 €
| Products ID: | 185020 |
|---|---|
| Manufactured by: | Fnirsi |
| Availablity: | Ready to Order |
| Delivery Time | 5-12 business days |
| EAN: | 5905156102200 |
Delivery options to:
Choose country
The FNIRSI FNB58 is an advanced USB port and fast charging protocol tester designed to inspect power parameters, protocol compatibility, and accessory quality.
Key Features
- Clear 2.0-inch LCD display with measurement resolution up to 0.0001
- Support for PD 3.1 with EPR AVS up to 28 V and PD cable detection up to 240 W
- Power ripple analysis to evaluate charger output quality
- Real-time voltage and current waveform display with up to 9 hours of offline recording
- Cable diagnostics including E-Marker chip reading and internal resistance measurement
- Comprehensive connectivity featuring high-current USB-A, Type-C with 24-pin copper contacts, and Micro USB
| Manufacturer | FNIRSI |
|---|---|
| Model | FNB58 |
| Color | Black |
| Dimensions | 42 x 13 x 82 mm |
| Display | 2.0" LCD |
| Measurement resolution | 0.0001 |
| Fast charging support | PD 2.0, PD 3.0, PD 3.1 (EPR AVS up to 28 V) |
| Cable detection | PD E-Marker (up to 240 W), DASH cables |
| Supported charging protocols | PPS, QC 2.0, QC 3.0, FCP, SCP, AFC, PE, DASHVOOC, SuperVOOC |
| Fast charging compatibility | Huawei, Xiaomi, OPPO (Super Fast Charge), Apple (Power Delivery), Samsung (Fast Charge) |
| Ports and interfaces | USB-A (input and output, high current 5P), USB-C (input), USB-C (output), Micro USB (input), PC interface |
| USB-C port design | 24-pin copper contacts |
| Measurement functions | Real-time voltage, current, power |
| Power ripple measurement | Quick charger quality analysis |
| Curve display | Real-time voltage and current |
| Offline curve recording | up to 9 hours |
| Battery capacity calculation | built-in calculation algorithm |
What power standards does the FNIRSI FNB58 support?
It supports PD 2.0, PD 3.0, and PD 3.1 with EPR AVS up to 28 V, as well as PPS, QC 2.0, QC 3.0, FCP, SCP, AFC, PE, DASHVOOC, and SuperVOOC.
Can the FNIRSI FNB58 record charging data offline?
Yes, it supports offline curve recording for up to 9 hours, enabling data analysis after charging is finished.
