FNIRSI FNB58 BT USB Port Tester with Bluetooth

Price: 52.20 €

Products ID:	176513
Manufactured by:	Fnirsi
Availablity:	Ready to Order
Delivery Time	5-10 business days
EAN:	5905156102194

Delivery options to:

Choose country

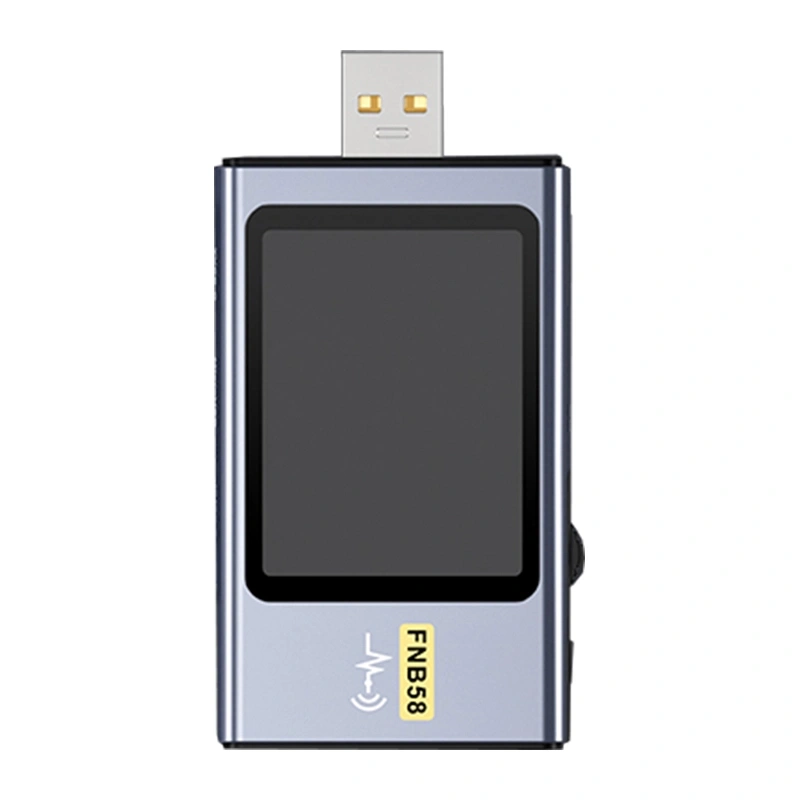

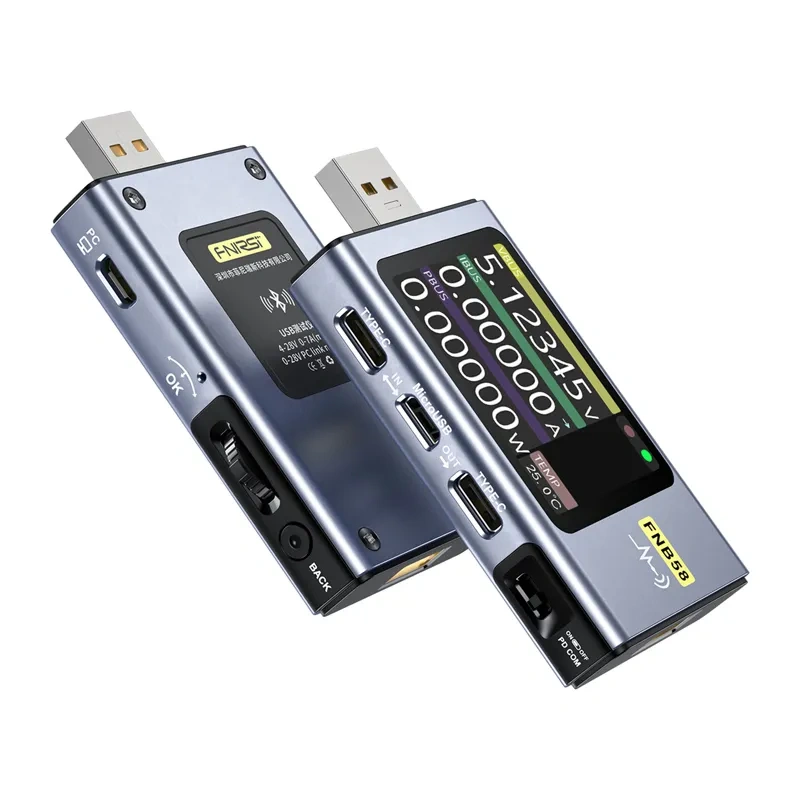

FNIRSI FNB58 BT USB Port Tester with Bluetooth

The FNIRSI FNB58 BT is a measuring tool designed to test USB ports, cables, and fast charging protocols, featuring a 2.0-inch LCD display and Bluetooth connectivity.

Key Features

High measurement resolution of up to 0.0001 for real-time voltage, current, and power monitoring
Supports PD 3.1 with EPR AVS mode up to 28 V and detection of PD cables up to 240 W
Broad protocol compatibility including PPS, QC 2.0/3.0, FCP, SCP, AFC, PE, DASHVOOC, and SuperVOOC
Equipped with USB-A, USB-C, and Micro USB ports featuring 24-pin copper Type-C contacts
Power ripple measurement and offline curve recording for up to 9 hours
Bluetooth connection for mobile app data monitoring and driver-free PC interface

Manufacturer	FNIRSI
Model	FNB58
Dimensions	42 x 13 x 82 mm
Display	2.0" LCD
Measurement resolution	0.0001
Fast charging support	PD 2.0, PD 3.0, PD 3.1 (EPR AVS up to 28 V)
Cable detection	PD E-Marker (up to 240 W), DASH cables
Supported charging protocols	PPS, QC 2.0, QC 3.0, FCP, SCP, AFC, PE, DASHVOOC, SuperVOOC
Ports and interfaces	USB-A (input/output, 5P), USB-C (input/output), Micro USB (input), PC interface
USB-C port design	24-pin copper contacts
Offline curve recording	Up to 9 hours
Wireless connectivity	Bluetooth
