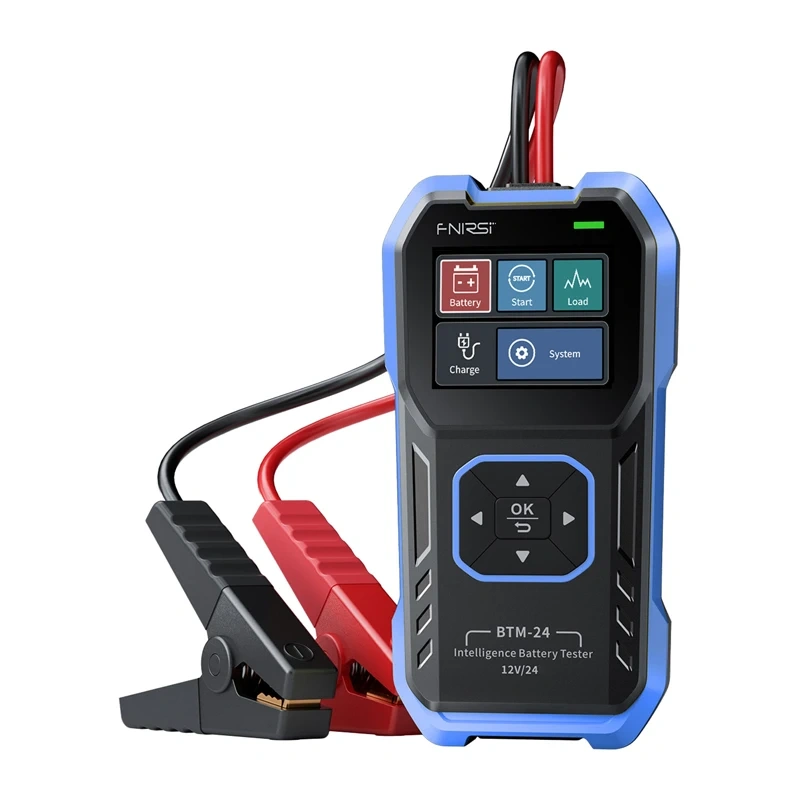

FNIRSI BTM-24 Multifunctional 12V 24V Car Battery Tester
Price: 41.00 €
| Products ID: | 176491 |
|---|---|
| Manufactured by: | Fnirsi |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 5905156102323 |
Delivery options to:
Choose countryThe FNIRSI BTM-24 is a multifunctional 12V and 24V battery and charging system tester designed to diagnose battery health without applying a load. It measures voltage, starting current up to 2000A CCA, state of health (SOH), state of charge (SOC), internal resistance, and cranking/charging system operation.
Key Features and Functions
- Supports 12V and 24V AGM, GEL, EFB, and conventional lead-acid batteries
- Compatible with CCA, EN, DIN, IEC, JIS, and GB standards
- Real-time cranking test and alternator waveform monitoring
- 2.4-inch color TFT display with day and night modes
- Reverse polarity, overvoltage, and short-circuit protection
- Integrated 61 cm test leads with insulated crocodile clamps
| Manufacturer | FNIRSI |
|---|---|
| Model | BTM-24 |
| Supported battery voltage | 12 V / 24 V |
| Voltage measurement range | 6–30 V |
| Starting current range | Up to 2000 A |
| Supported standards | CCA / EN / DIN / IEC / JIS / GB |
| Supported battery types | AGM (flat plate, spiral), EFB, GEL, lead-acid (flooded) |
| Display | 2.4" color TFT screen |
| Cable length | Approximately 61 cm |
| Dimensions | 80.5 × 155.8 × 28.2 mm |
| Weight | Approximately 479 g |
Which battery types are supported by the FNIRSI BTM-24?
The tester supports 12V and 24V AGM (flat plate and spiral), GEL, EFB, and standard lead-acid flooded batteries.
What is included in the package?
The set includes the FNIRSI BTM-24 tester, test leads with insulated clamps, user manual, data cable, and a carrying case.
