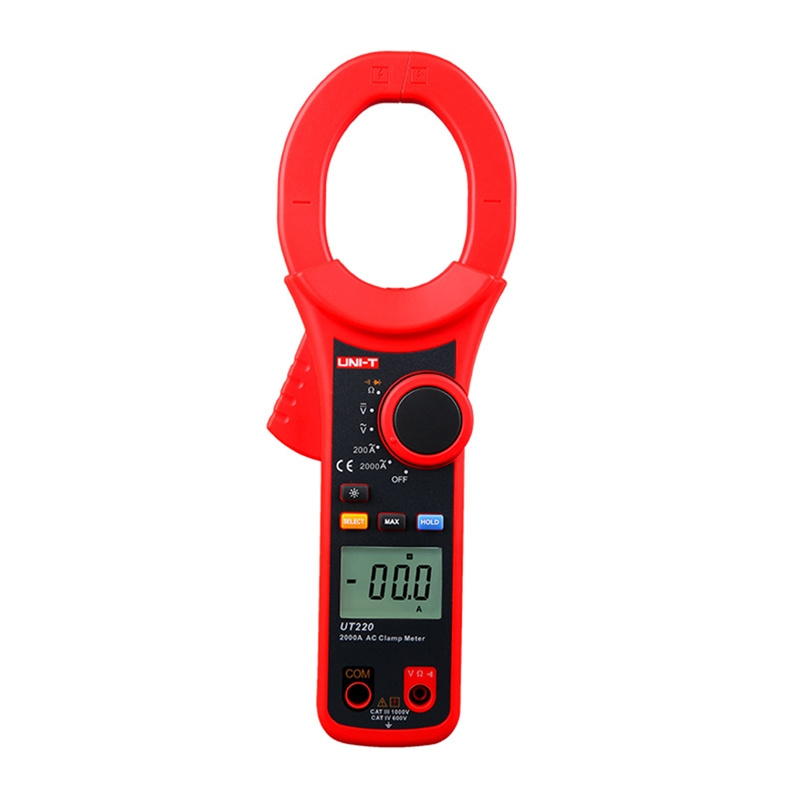

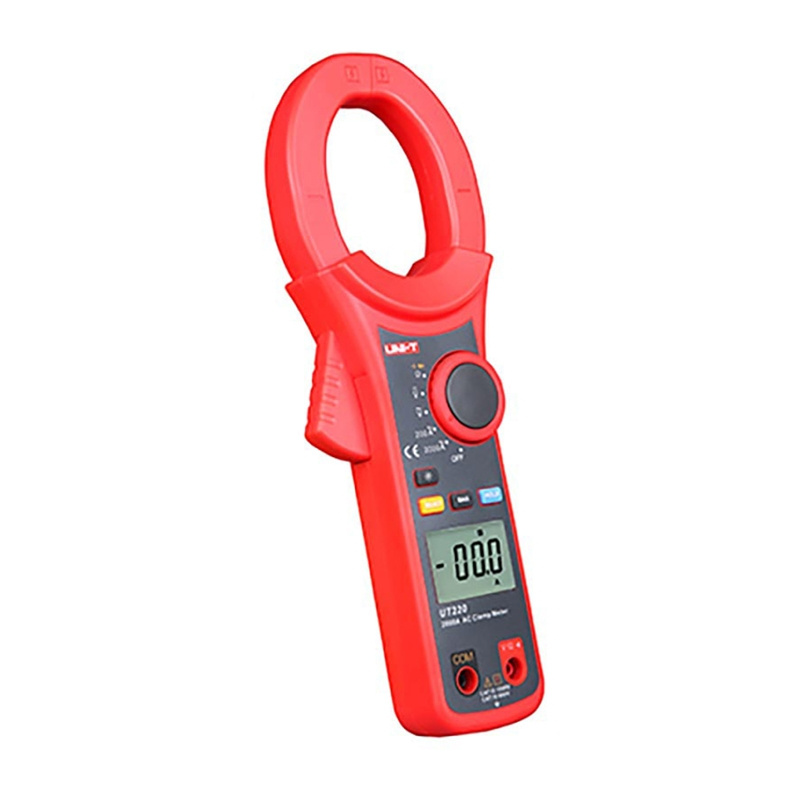

Digital Clamp Meter Uni-T UT220, 2000 A
47.70 €
Products ID: 176888
In supplier warehouse
Available to order: 10+ pcs.
Delivery Time 5–12 business days
Delivery options to:
Choose countryThe Uni-T UT220 is a digital clamp meter designed for measuring AC currents up to 2000 A, as well as voltage and resistance during electrical diagnostics and testing.
Key Features
- AC current measurement up to 2000 A with a 63 mm jaw opening
- AC voltage measurement up to 750 V and DC voltage up to 1000 V
- Resistance measurement up to 20 MΩ
- Automatic range selection for convenient operation
- Diode testing and continuity buzzer
- Data Hold and MAX display functions
| Manufacturer | Uni-T |
|---|---|
| Model | UT220 |
| Product type | Digital clamp meter |
| AC current range | 2000 A ±(2.5% + 5) |
| AC voltage range | 750 V ±(1.2% + 5) |
| DC voltage range | 1000 V ±(0.8% + 1) |
| Resistance measurement range | 20 MΩ ±(1% + 2) |
| Maximum display reading | 2000 |
| Functions | Diode test, continuity test, Data Hold, MAX, auto-range, low battery indicator |
| Jaw opening | 63 mm |
| Power supply | 9V battery (6F22) |
| Display dimensions | 43 × 30 mm |
| Dimensions | 298 × 107 × 47 mm |
| Weight | 389 g |
| Certifications | CE, UKCA, cETLus |
| EAN | 6935750522080 |
|---|
What is included in the package with the Uni-T UT220?
The package includes the clamp meter, one pair of test leads, a 9V battery (6F22), a carrying case, and a user manual.

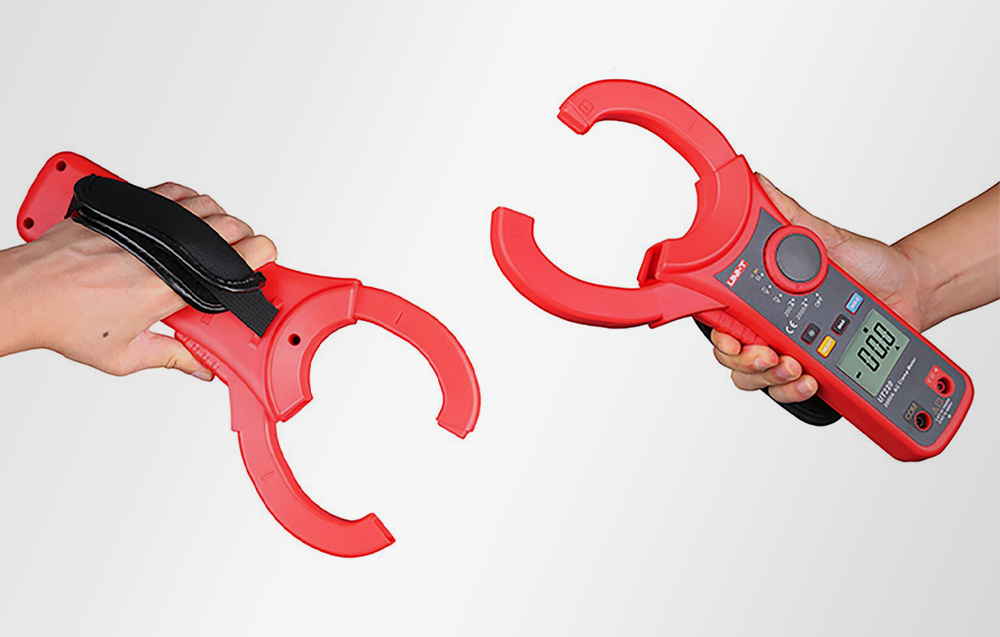

What is the jaw opening capacity of the UT220?
The jaw opening measures 63 mm.
What battery does this meter use?
It is powered by a single 9V 6F22 battery, which is included in the box.
