Digital Cable Locator UNI-T UT683KIT

Price: 54.70 €

Products ID:	175241
Manufactured by:	Uni-T
Availablity:	Ready to Order
Delivery Time	5-10 business days
EAN:	6935750568323

Delivery options to:

Choose country

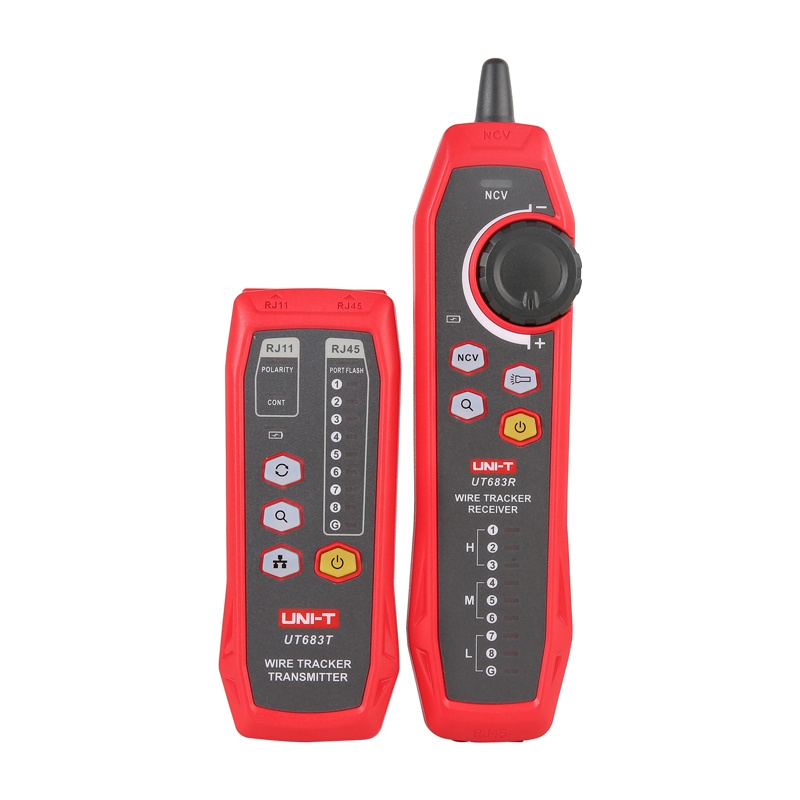

The UNI-T UT683KIT digital cable locator is a diagnostic tool with transmitter and receiver designed for tracing cable runs and detecting faults in low-voltage installations up to 60V DC.

Key Features

Cable tracking for RJ11 (over 3000 m) and RJ45 (over 100 m) lines
Break and short-circuit testing up to 10 kΩ, line alignment, and polarity detection
Non-contact voltage detection (NCV) and 3.5mm headphone jack on the receiver
Built-in 1050 mAh lithium-ion rechargeable batteries

Manufacturer	Uni-T
Manufacturer code	UT683KIT
Certifications	CE, RoHS
Power supply	1050 mAh lithium-ion rechargeable battery
Flashing port (transmitter)	Yes
Cable tracking (transmitter)	Yes
Line alignment (transmitter)	Yes
Break/short-circuit test (transmitter)	Up to 10 kΩ
Polarity test (transmitter)	Yes
Transmitter operating time	>8 hours
Cable tracking (receiver)	RJ11 >3000 m; RJ45 >100 m
NCV function (receiver)	Yes
Headphone jack (receiver)	3.5 mm
Low power indicator	Yes
Receiver operating time	>5 hours
Transmitter dimensions	130 × 51 × 28 mm
Dimensions of receiver	197 × 48 × 34 mm
Weight of the transmitter	approx. 95 g
Weight of the receiver	approx. 127 g

What is included in the UT683KIT package?

The package includes the UT683KIT transmitter and receiver, USB charging cable, RJ11 test cable with crocodile clips, RJ45 test cable, RJ11 test cable, English user manual, carrying bag, and original gift box.

How long do the built-in batteries last?

The built-in 1050 mAh lithium-ion batteries provide more than 8 hours of operating time for the transmitter and more than 5 hours for the receiver.
