Price: 2871.30 €

Products ID:	174681
Manufactured by:	Xtool
Availablity:	Ready to Order
Delivery Time	5-10 business days
EAN:	5906168436598

Delivery options to:

Choose country

xTool S1 40W 2-in-1 Laser Engraver - All-in-One Kit, Black

The xTool S1 40W is a closed-chassis laser engraver and cutter offering a 498 x 319 mm working area and speeds up to 600 mm/s. The All-in-One Kit provides complete accessories for versatile material processing and workspace air filtration.

Key Features and Inclusions

40W Laser Module: Features a fine 0.08 x 0.10 mm spot size for precise cutting and engraving.
SafetyPro AP2 Fume Extractor: 3-layer filtration system capturing particles and odors with operating noise up to 55 dB.
Smart Air Assist 2.0: Automatic airflow adjustment from 30 L/min to protect the lens and keep cuts clean.
S1 Riser Base: Raises the unit to accommodate material thicknesses up to 125 mm within an enclosed work area.
RA2 Pro Rotary Attachment: 4-in-1 configurable module for engraving cylindrical, spherical, and ring items.
Broad Compatibility: Connects via USB or Wi-Fi, supporting XCS and LightBurn software.

Brand	xTool
Model	S1
Laser Power	40W
Spot Size	0.08 x 0.10 mm
Working Speed	600 mm/s
Working Area	498 x 319 mm
Connection Method	USB / Wi-Fi
Supported Operating Systems	Android, iOS, Windows 10 and above, macOS
Supported Software	XCS / LightBurn
Supported File Formats	SVG, DXF, JPG, JPEG, PNG, BMP, TIF
Engraver Dimensions	765 x 561 x 183 mm (without base), 765 x 561 x 268 mm (with base)
Engraver Weight	20 kg
Fume Extractor Power	150W
Fume Extractor Noise Level	up to 55 dB
Air Assist Flow Rate	≥30 L/min
Color	Black

What maximum material thickness does the Riser Base support?

With the Riser Base installed, the device accommodates material thicknesses up to 125 mm.

Which software applications are compatible with the xTool S1?

The engraver is compatible with xTool Creative Space (XCS) and LightBurn software.

What items are included in the All-in-One Kit?

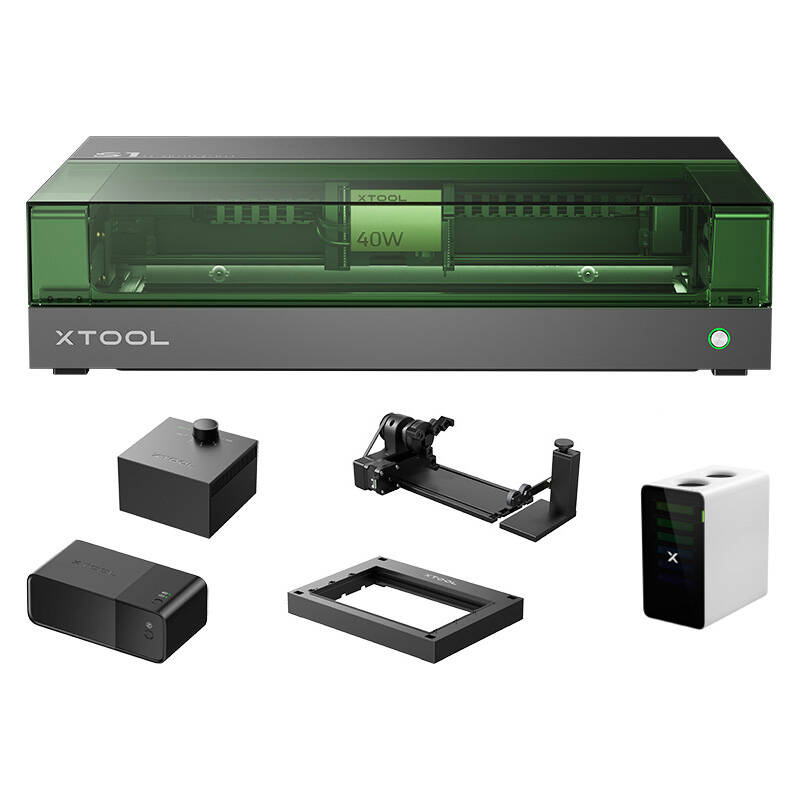

The set includes the xTool S1 40W laser engraver, honeycomb cutting panel, Smart Air Assist, material kit, RA2 Pro rotary attachment, S1 Riser Base, and AP2 fume extractor.
