Longer RAY5 minis 3.5W Laser Engraver, 130 x 140 mm
Price: 152.60 €
| Products ID: | 178690 |
|---|---|
| Manufactured by: | Longer |
| Availablity: | Ready to Order |
| Delivery Time | 5-12 business days |
| EAN: | 5905156103221 |
Delivery options to:

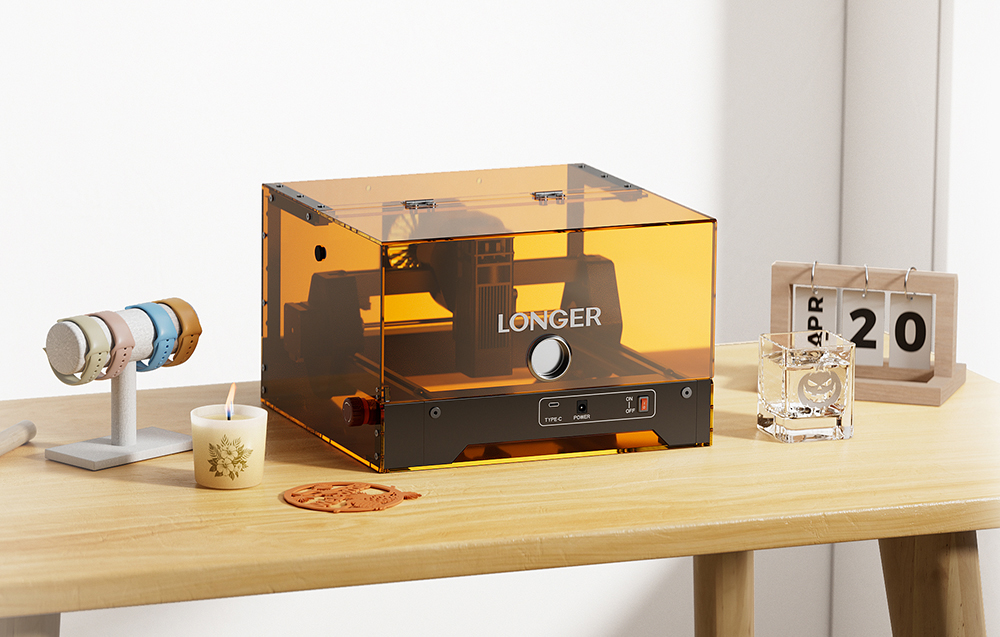

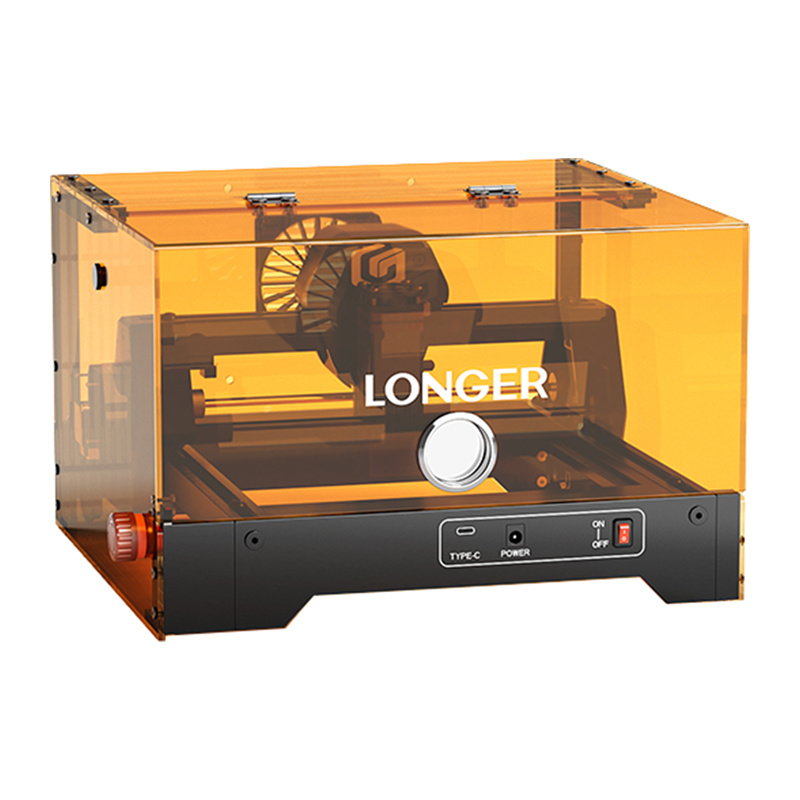

Choose countryThe Longer RAY5 minis 3.5W is a compact desktop laser engraver designed for precise engraving and cutting across hundreds of materials. Supplied pre-assembled, it allows you to begin projects immediately without time-consuming setup.
Key Features

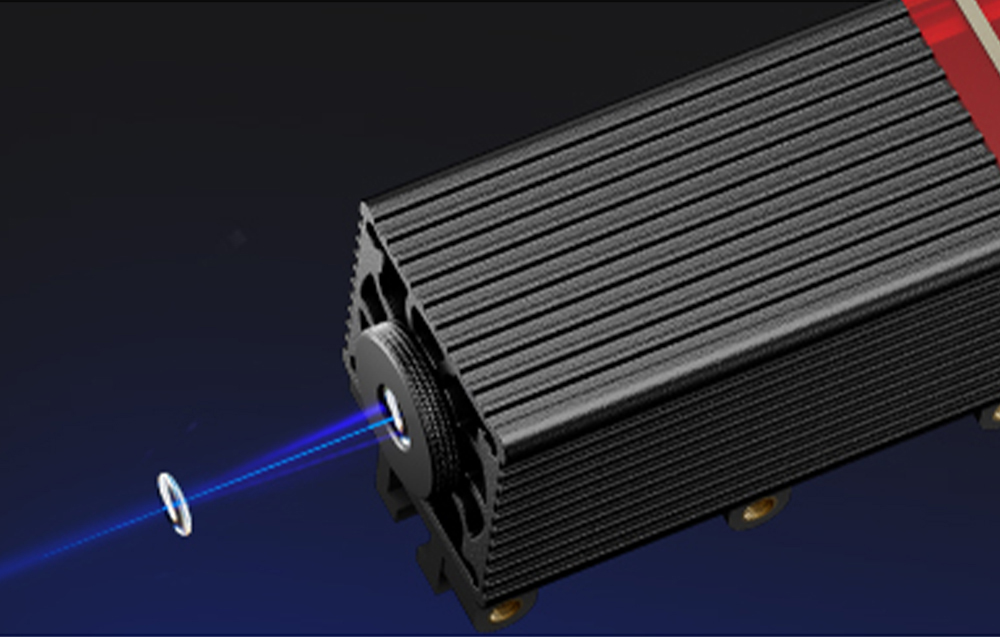

- 3.5 W 450 nm diode laser with a 0.04 x 0.04 mm spot size and 0.04 mm accuracy
- 130 x 140 mm working area with engraving speeds up to 12,000 mm/min
- Enclosed housing featuring a door safety sensor, emergency stop button, and exhaust fan
- Wi-Fi and USB connectivity supporting offline operation via mobile apps or computer
- Compatible with LightBurn and LaserGRBL on Windows, macOS, Linux, Android, and iOS
| Manufacturer | Longer |
|---|---|
| Model | RAY5 minis 3.5W |
| Laser power | 3.5 W |
| Laser source | Single laser diode with FAC |
| Laser wavelength | 450 nm |
| Working area | 130 x 140 mm |
| Cutting depth | 12 mm |
| Engraving speed | 12 000 mm/min |
| Engraving precision | 0.04 mm |
| Supported formats | JPG, BMP, PNG, DXF |
| Lifespan | 10 000+ hours |
| Machine material | Aluminum alloy |
| Connection | Wi-Fi, USB, app |
| Safety certifications | CE, FCC, FDA, RoHS |
| Supported systems | Windows, macOS, Linux, Android, iOS |
| Dimensions | 307 x 320 x 197 mm |
| Weight | 2.89 kg |
| Power supply | 100-240V 50/60Hz 1.5A / 12V-2A (24W) or 12V-3A (36W) |
| Compatible materials | Wood, acrylic, leather, fabric, metal, ceramics, etc. |
What is included in the package?

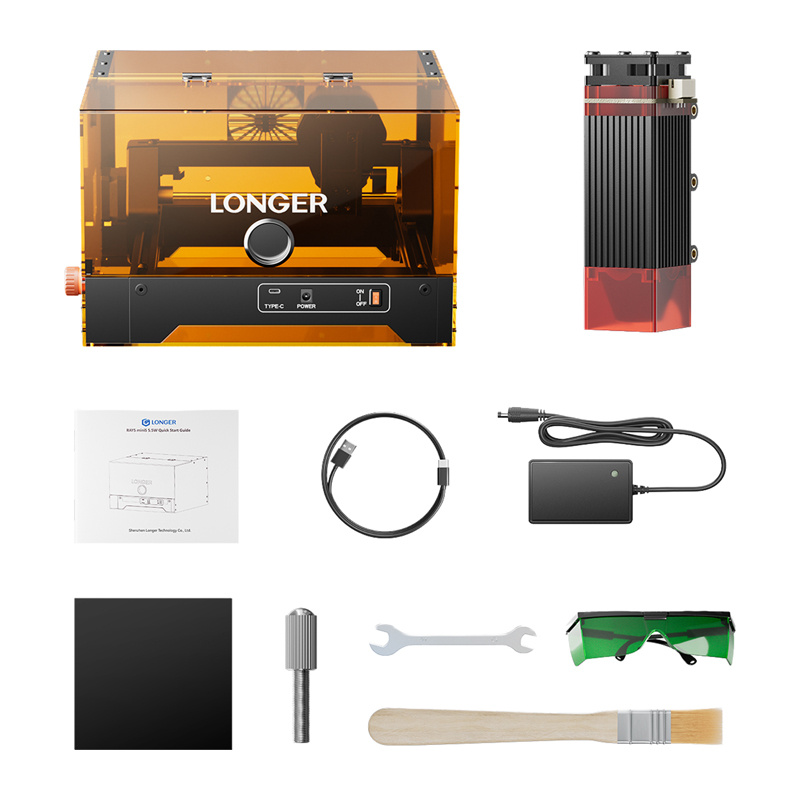

The package includes the machine frame, laser module, power supply, data cable, safety glasses, focusing block, wrench, and a wooden brush.
What are the dimensions of the working area?
The working area measures 130 x 140 mm.
Can the engraver operate offline?
Yes, once the design file is transferred via Wi-Fi, USB, or the app, the device can operate offline without a continuous computer connection.
