Longer RAY5 minis 2.5W Laser Engraver, 130 x 140 mm
Price: 128.40 €
| Products ID: | 178691 |
|---|---|
| Manufactured by: | Longer |
| Availablity: | Ready to Order |
| Delivery Time | 5-12 business days |
| EAN: | 5905156103214 |
Delivery options to:

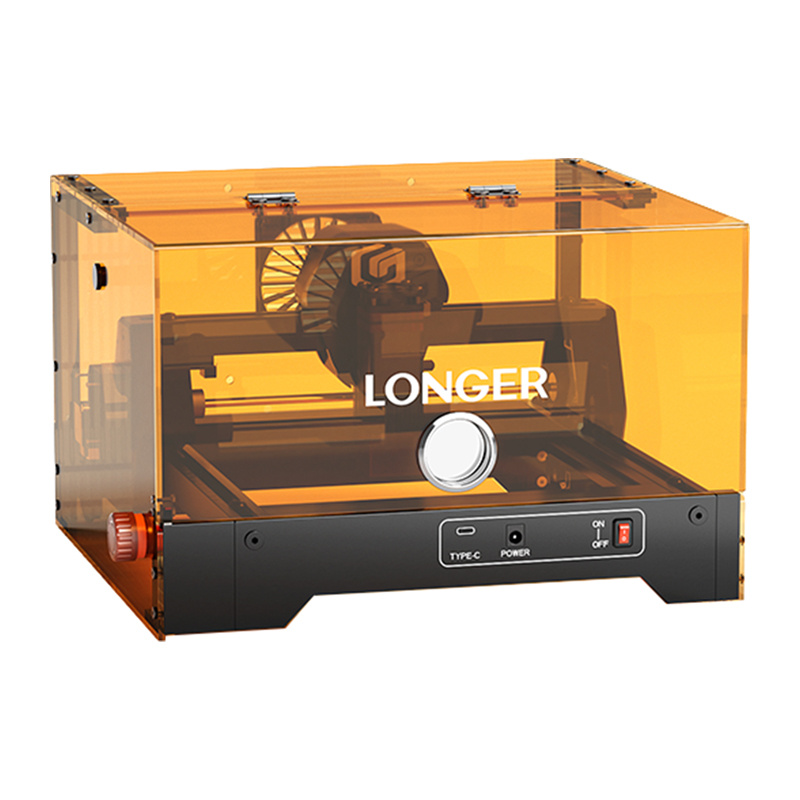

Choose countryThe Longer Ray5 miniS 2.5W is a compact diode laser engraver pre-assembled and ready to use out of the box for crafting, marking, and decorating various materials.
Key Features

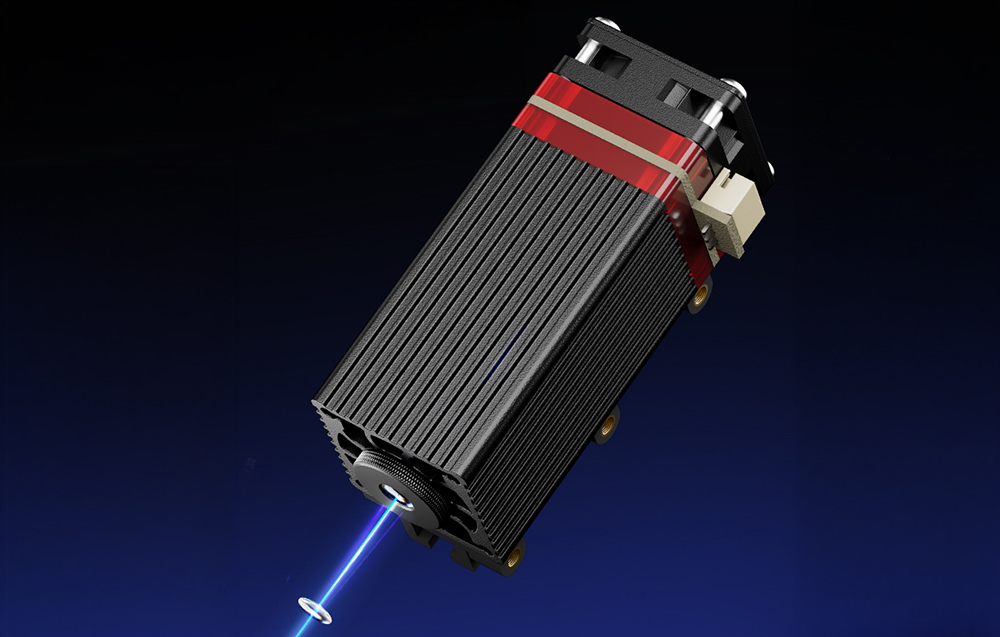

- 2.5 W 450 nm diode laser with 0.04 x 0.04 mm laser spot and 0.04 mm engraving accuracy
- 130 x 140 mm working area with engraving speeds up to 12 000 mm/min
- Wi-Fi and USB connectivity, mobile app support, and offline operation
- Protective enclosure with cover, door sensor, limit switches, and exhaust fan
- Aluminum alloy construction with a total weight of 2.89 kg
| Manufacturer | Longer |
|---|---|
| Model | RAY5 minis 2.5W |
| Laser power | 2.5 W |
| Laser source | Single laser diode with FAC |
| Laser wavelength | 450 nm |
| Working area | 130 x 140 mm |
| Cutting depth | 12 mm |
| Engraving speed | 12 000 mm/min |
| Engraving precision | 0.04 mm |
| Supported formats | JPG, BMP, PNG, DXF |
| Lifespan | 10 000+ hours |
| Machine material | Aluminum alloy |
| Connection | Wi-Fi, USB, app |
| Safety certifications | CE; FCC; FDA; RoHS |
| Supported systems | Windows; MacOS; Linux; Android; iOS |
| Dimensions | 307 x 320 x 197 mm |
| Weight | 2.89 kg |
| Power supply | 100-240V 50/60Hz 1.5A/12V-2A (24W) or 12V-3A (36W) |
| Compatible materials | Wood, acrylic, leather, fabric, metal, ceramics, etc. |

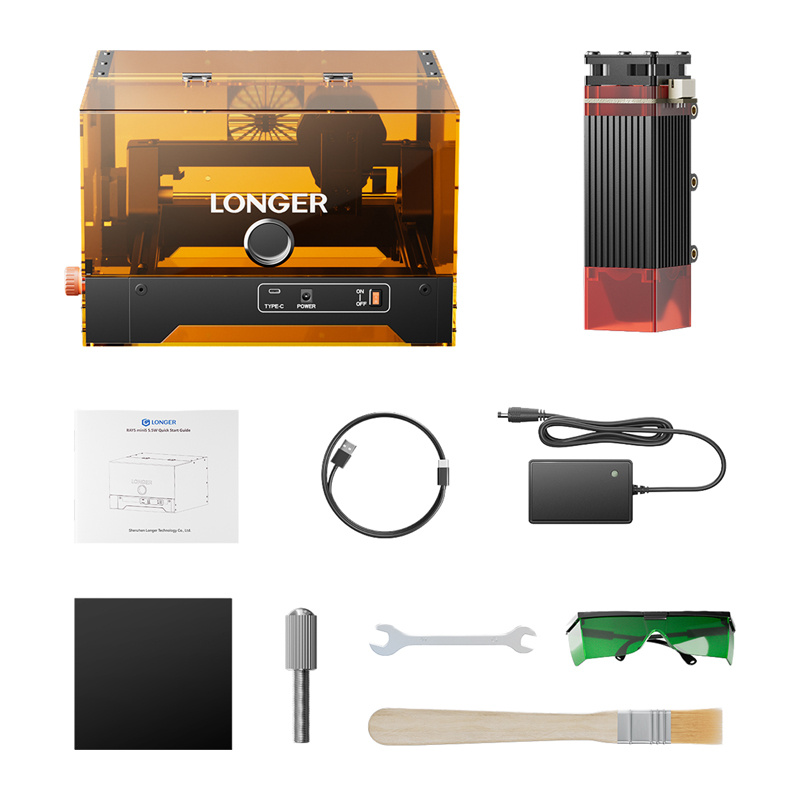

What items are included in the package?
The package includes the machine frame, laser module, power supply, data cable, safety glasses, focusing block, wrench, and a wooden brush.
How is the laser focused?
Focusing is done mechanically using the included 2 mm spacer block by lowering the laser module until it contacts the block.
Which software and operating systems are supported?
The engraver supports LaserGRBL and LightBurn software on Windows, macOS, and Linux, as well as mobile apps on Android and iOS.
