MCB Enclosure Box TIBOX 440x450x115mm, 2x16P, Surface Mount, Grey
Price: 48.40 €
| Products ID: | 171821 |
|---|---|
| Manufactured by: | Tibox |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 9990000992676 |
Delivery options to:

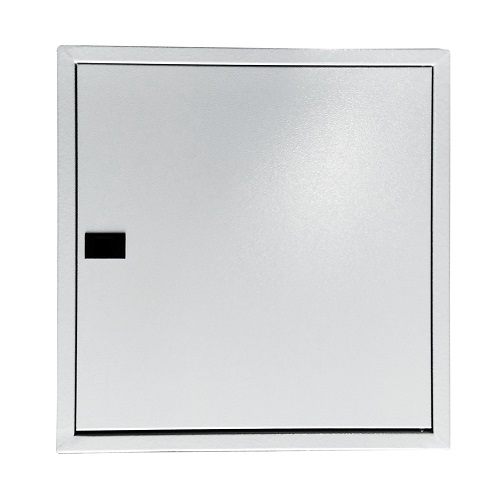

Choose countryThe TIBOX surface-mounted metal distribution enclosure is designed for installing circuit breakers in residential or industrial indoor environments.
Key Features
- Accommodates 2 rows x 16 contacts (2x16P) on DIN rails
- IP54 protection rating against dust and moisture
- Made of 1.2mm thick sheet steel
- Epoxy polyester powder-coated textured finish in RAL 7035 light grey
- Knock-outs on all sides for neat wire routing
- Package includes enclosure body, door with lock system, DIN rails, and front frame with cutouts
| Brand | TIBOX |
|---|---|
| Mounting type | Surface mount |
| Number of breakers | 2 rows x 16P |
| Protection class | IP54 |
| Body material | Sheet steel (1.2mm thickness) |
| Finish and color | Epoxy polyester powder coating, RAL 7035 light grey |
| Width | 440mm |
| Height | 450mm |
| Depth | 115mm |
| Intended environment | Indoor use |
What is included in the package?
The package includes the enclosure body, door and lock system, DIN rails, and front frame with cutouts.

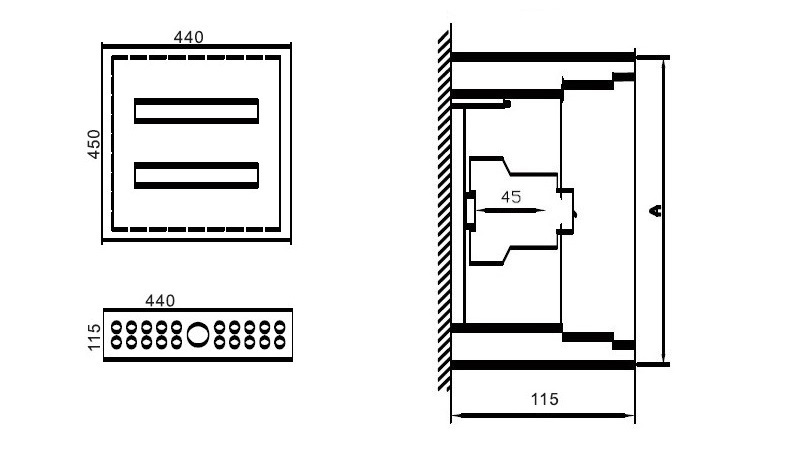

What are the dimensions and wall thickness of this enclosure?
The enclosure measures 440mm in width, 450mm in height, and 115mm in depth, with a wall and door thickness of 1.2mm.
