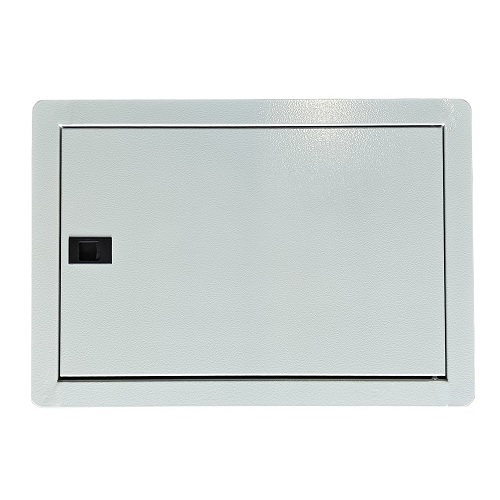

Flush Mount Metal MCB Box TIBOX 440x300x115mm 1x16P IP54
40.50 €
Tibox
Products ID: 171805
In supplier warehouse
Available to order: 3 pcs.
Delivery Time 5–10 business days
Delivery options to:
Choose countryThe TIBOX flush mount metal distribution enclosure with 1 DIN rail is designed for installing circuit breakers in residential or industrial indoor premises.
Key Features
- Accommodates 1 row of up to 16 breaker poles (1x16P)
- Constructed from 1.2 mm sheet steel with epoxy polyester powder coating textured finish
- IP54 safety class for moisture and dust protection
- Frame with knock-outs on all sides for organized wiring
- Complete set includes enclosure body, door with lock, DIN rail, and front frame
| Brand | TIBOX |
|---|---|
| Installation type | Flush mount |
| Number of breakers | 1 row x 16P |
| Safety class | IP54 |
| Body material | Sheet steel |
| Wall and door thickness | 1.2 mm |

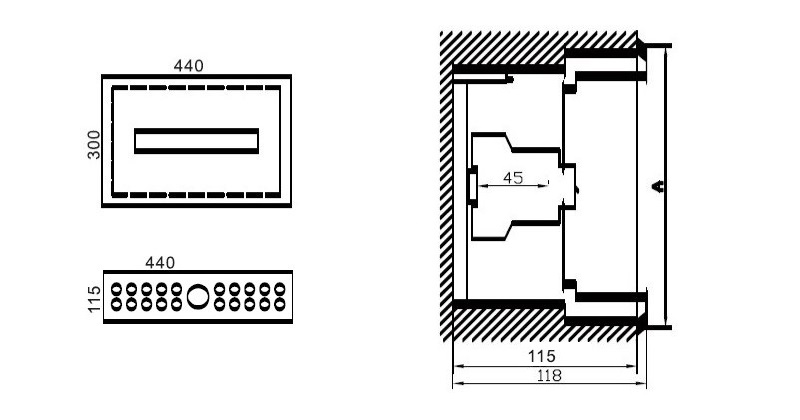

| Width | 440 mm |
| Height | 300 mm |
| Depth | 115 mm |
| Color | RAL 7035 light gray |
| Application | Indoors use |
| EAN | 9990000992720 |
|---|
How many breaker poles does this box support?
The box includes 1 DIN rail and accommodates 1 row of 16 breaker contacts (1x16P).
What is included in the package?
The package includes the box body, door and lock system, DIN rail, and front frame with cutouts.
