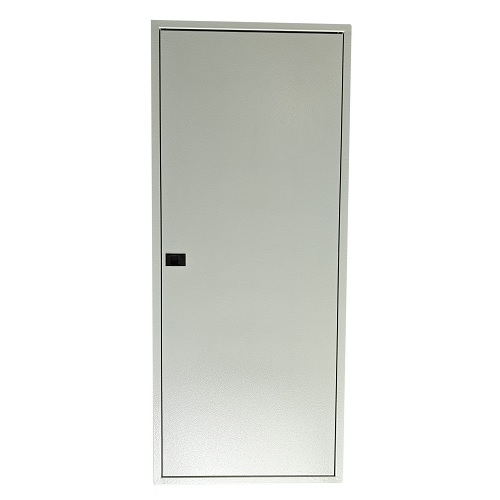

MCB Distribution Box TIBOX 440x1050x115mm, 6x16P, Surface Mount, IP54
Price: 82.20 €
| Products ID: | 171424 |
|---|---|
| Manufactured by: | Tibox |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 9990000992713 |
Delivery options to:
Choose countryThe TIBOX surface mount metal distribution enclosure is designed for circuit breaker installation in residential or industrial indoor environments. It accommodates 6 rows of DIN rails with up to 16 poles per row.
Key Features
- Capacity: 6 rows x 16 poles (6x16P)
- IP54 safety class for moisture and dust protection
- Constructed from 1.2mm sheet steel (body and door)
- Epoxy polyester powder coating textured finish in RAL 7035 light gray
- Frame with knock-outs on all sides for neat wire management
- Includes enclosure body, door with lock system, DIN rails, and front frame with cutouts

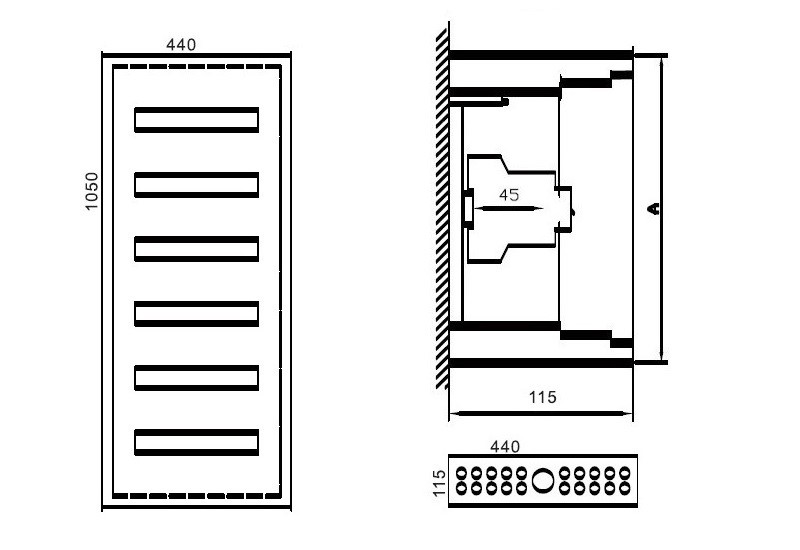

| Brand | TIBOX |
|---|---|
| Mounting Type | Surface mount |
| Capacity | 6 rows x 16P |
| Protection Rating | IP54 |
| Body Material | Sheet steel |
| Wall & Door Thickness | 1.2 mm |
| Surface Finish | Epoxy polyester powder coating, textured |
| Color | RAL 7035 (Light gray) |
| Height | 1050 mm |
| Width | 440 mm |
| Depth | 115 mm |
| Application | Indoor use |
What is the breaker capacity of this distribution box?
It is configured for 6 rows with 16 poles per row, providing a total 6x16P module capacity.
What components are included in the package?
The package includes the enclosure body, door with lock system, DIN rails, and front frame with cutouts.
What is the ingress protection level?
The box has an IP54 safety rating, offering resistance to dust and moisture for indoor installations.
