Flush Mount Metal MCB Box TIBOX 585x750x115mm, 4x24P, IP54
Price: 77.70 €
| Products ID: | 171419 |
|---|---|
| Manufactured by: | Tibox |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 9990000992751 |
Delivery options to:

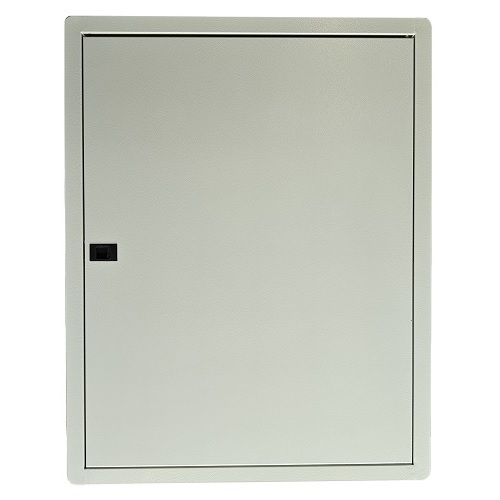

Choose countryThe TIBOX flush mount metal distribution enclosure is designed for the installation of modular circuit breakers in residential or industrial indoor premises.
Features
- Capacity of 4 DIN rails accommodating 24 breaker contacts per row.
- Constructed from 1.2 mm sheet steel with textured epoxy polyester powder coating.
- IP54 ingress protection rating against dust and moisture.
- Knock-outs on all sides of the frame for neat cable routing.
- Includes enclosure body, door with lock system, DIN rails, and front frame with cutouts.
| Brand | TIBOX |
|---|---|
| Installation type | Flush mount |
| Number of breakers | 4 rows x 24 P |
| Safety class | IP54 |
| Body material | Sheet steel |
| Wall and door thickness | 1.2 mm |

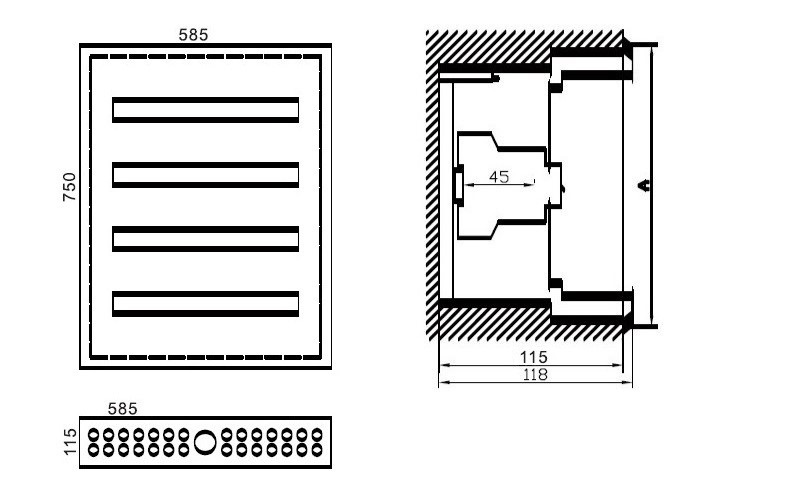

| Width | 585 mm |
| Height | 750 mm |
| Depth | 115 mm |
| Color | RAL 7035 light gray |
| Intended use | Indoors |
How many modules can be installed in this enclosure?
The enclosure accommodates up to 96 modules across 4 rows of 24 positions each.
What is included in the package?
The package includes the box body, door with lock system, DIN rails, and front frame with cutouts.
