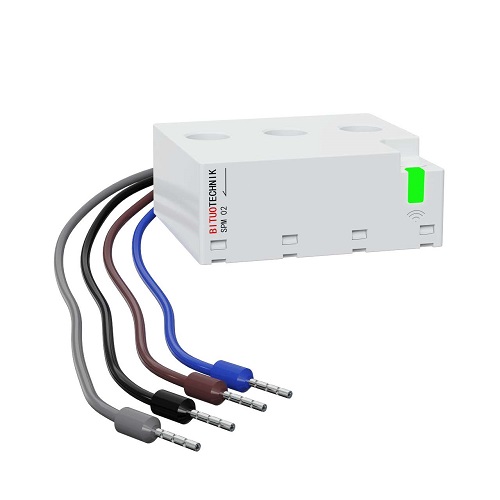

Tuya Smart Three-Phase Energy Sensor 3P+N 63A Wi-Fi
Price: 78.00 €
| Products ID: | 171428 |
|---|---|
| Manufactured by: | Tuya |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 9990001083847 |
Delivery options to:
Choose countryThe Tuya smart energy sensor provides precise energy monitoring in three-phase systems with a neutral wire (3P+N) as well as single-phase configurations up to 63A.
Key Features
- Real-time voltage, current, power, frequency, and consumption tracking
- Phase balance analysis for three-phase networks
- 2.4GHz Wi-Fi connectivity with Tuya Smart and Smart Life app support
- Voice control compatibility with Amazon Alexa and Google Assistant
- Compact design installed directly into circuits without taking up DIN rail space
| Max. current (Imax) | 63 A (3P+N) |
|---|---|
| Operating voltage | 208~415V AC |
| Frequency | 50/60 Hz |
| Rated insulation voltage (Ui) | 400V |
| Energy measurement accuracy | 1%; Class 1 |
| Operating consumption | 0.7W |
| Rated impulse withstand voltage (Uimp) | 4 kV |
| Surge category | III |
| Communication type | Wi-Fi (2.4 GHz), BK7231 SoC |
| App | Tuya Smart / Smart Life (Android, iOS) |
| Voice control | Amazon Alexa & Google Assistant |
| Reset button | Yes |
| Indicator light | Yes |
| Protection class | IP20 |
| Operating temperature | -25°C~+60°C |
| Measuring cavity diameter | 9.8mm |
| Dimensions | 46.8x52.8x21.3mm |
| Warranty | 24 months |
Which electrical systems are supported by this sensor?
It is designed for three-phase systems with neutral (3P+N) and can also be used in single-phase systems.
Which applications work with this device?
It connects via the Tuya Smart and Smart Life applications on Android and iOS devices.
What is the maximum rated current?
The maximum current measurement limit is 63A.
