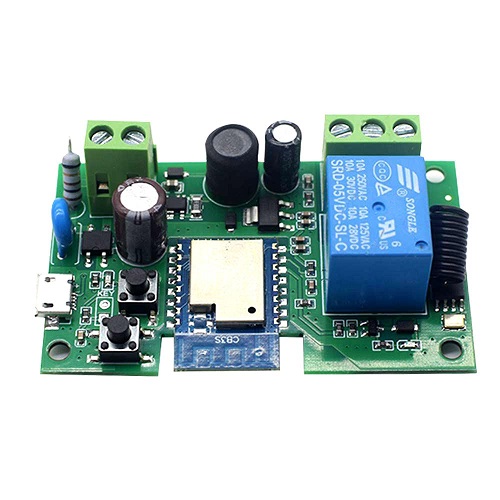

TUYA Smart Gate Opener Relay Module 1CH 85-250V Wi-Fi RF
Price: 30.10 €
| Products ID: | 171413 |
|---|---|
| Manufactured by: | Tuya |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 9990001083700 |
Delivery options to:
Choose countryThe TUYA 1-channel wireless relay switch module is designed for automating and remotely controlling gates, garage doors, shutters, and household electrical appliances.
Key Features
- Remote control from anywhere via Tuya Smart and Smart Life apps
- Supports 2.4 GHz Wi-Fi, Bluetooth for fast connection, and 433MHz RF remote control
- Dual power supply support via AC 85-250V or USB 5V port
- Voice control compatibility with Amazon Alexa and Google Assistant
- Scheduling, timer, and countdown functionality in the app
- Self-locking operating mode with manual switch button and status indicator
| Input voltage | AC 85-250V / USB 5V |
|---|---|
| Max. current | 10A |
| Max. power | 2200W |
| Wi-Fi frequency | 2.4 GHz (IEEE802.11b/g/n) |
| RF frequency | 433MHz |
| Power consumption | approx. 80mA |
| Mobile app | Tuya Smart / Smart Life (Android, iOS) |
| Voice control | Amazon Alexa, Google Assistant |
| Relay life | > 1,000,000 times |
| Operating temperature | -20°C ~ +70°C |
| Dimensions | 69x41x20mm |
| Weight | 24g |
| Warranty | 24 months |
What power input options are supported by this relay?
The device can be powered either via AC 85-250V mains voltage or through a standard USB 5V port.
Which applications are used to configure and operate the switch?
It is configured and managed via the Tuya Smart or Smart Life applications for iOS and Android.
Does this module support RF remote controllers?
Yes, it features a built-in 433MHz RF receiver for operation with compatible RF remote controls.
