Tuya Smart Energy Sensor, 1P+N, 63A, Wi-Fi
Price: 52.80 €
| Products ID: | 171834 |
|---|---|
| Manufactured by: | Tuya |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 9990001083823 |
Delivery options to:

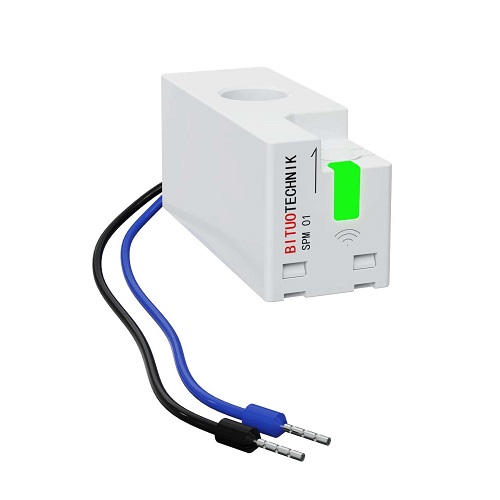

Choose countryThe Tuya smart energy sensor is a compact device engineered for accurate real-time monitoring of energy consumption in single-phase systems with a neutral wire (1P+N).
Key Features
- Measures voltage, current, power, and total energy consumption
- Single measurement channel for monitoring one circuit or phase
- Connects via 2.4 GHz Wi-Fi using the Tuya Smart or Smart Life app
- Supports voice control with Amazon Alexa and Google Assistant
- Compact design fits easily into distribution panels downstream of circuit breakers
- View consumption history and real-time data analytics on iOS and Android
| Max. current (Imax) | 63 A (1P+N) |
|---|---|
| Operating voltage | 220~240V AC |
| Frequency | 50/60 Hz |
| Rated insulation voltage | 250 V |
| Energy measurement accuracy | 1% (Class 1) |
| Operating power | 0.5W |
| Rated impulse withstand voltage (Uimp) | 4 kV |
| Surge category | III |
| Connection type | Wi-Fi (2.4 GHz), BK7231 SoC |
| App | Tuya Smart / Smart Life (Android, iOS) |
| Voice control | Amazon Alexa, Google Assistant |
| Protection class | IP20 |
| Operating temperature | -25°C~+60°C |
| Measuring cavity diameter | 9.8mm |
| Dimensions | 46.8x17.8x21.3mm |
What electrical systems is this sensor compatible with?
It is designed for single-phase systems with a neutral wire (1P+N) with loads up to 63 A.
What parameters does the sensor measure?
The sensor measures voltage, current, power, and cumulative energy consumption.

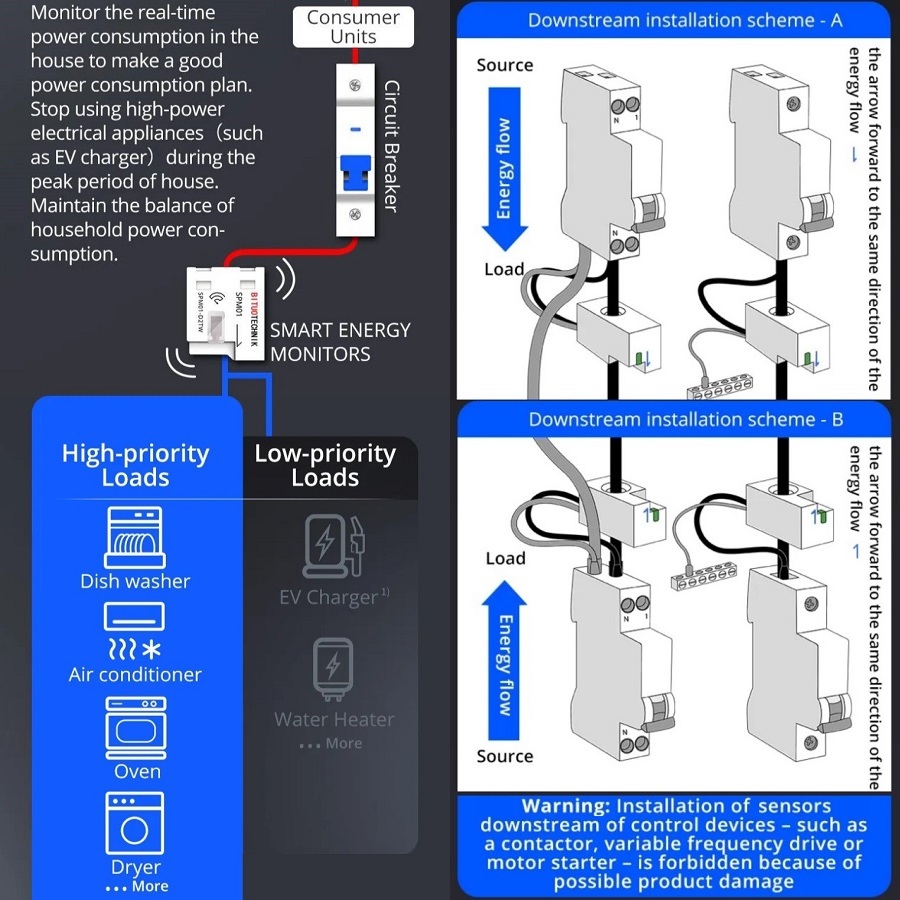

How should this device be installed in a distribution board?
It must be installed downstream of a main circuit breaker or fuse in a dry environment.
