Tuya Smart Energy Monitor 3P+N 120A DIN Rail Wi-Fi
Price: 108.70 €
| Products ID: | 171453 |
|---|---|
| Manufactured by: | Tuya |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 9990001083809 |
Delivery options to:
Choose country
The Tuya smart energy monitor is designed for real-time tracking of electricity consumption in three-phase (3P+N) and single-phase electrical systems with DIN rail installation.
Key features
- Measures voltage, current up to 120A per phase, power, frequency, and energy consumption in real time.
- Includes three 16mm split-core current transformers for quick installation without disconnecting wiring.

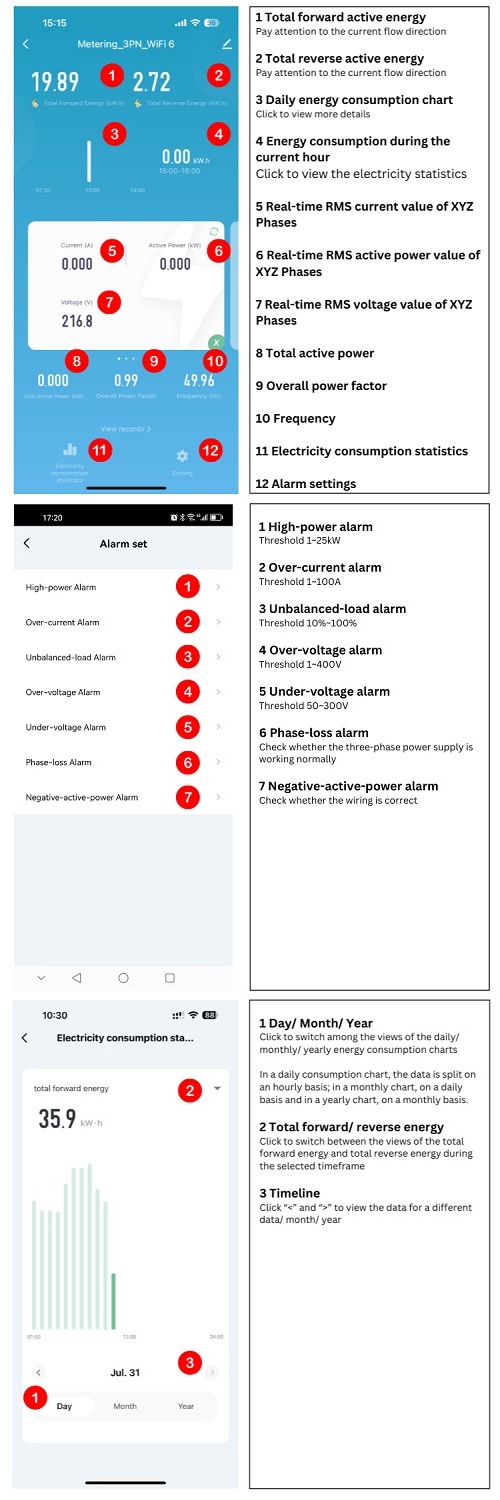

- Connects via 2.4GHz Wi-Fi to the Tuya app for iOS and Android devices.
- Compatible with Amazon Alexa and Google Assistant voice control.
| Max. current (Imax) | 120 A |
|---|---|
| Operating voltage | 220~240V AC (phase-neutral) / 380~415V AC (phase-phase) |
| Frequency | 50/60 Hz |
| Insulation voltage (Ui) | 440 V |
| Energy measurement accuracy | 1% (Class 1) |
| CT diameter | 16 mm |
| Wireless connection | Wi-Fi 2.4 GHz |
| Mounting | DIN rail |

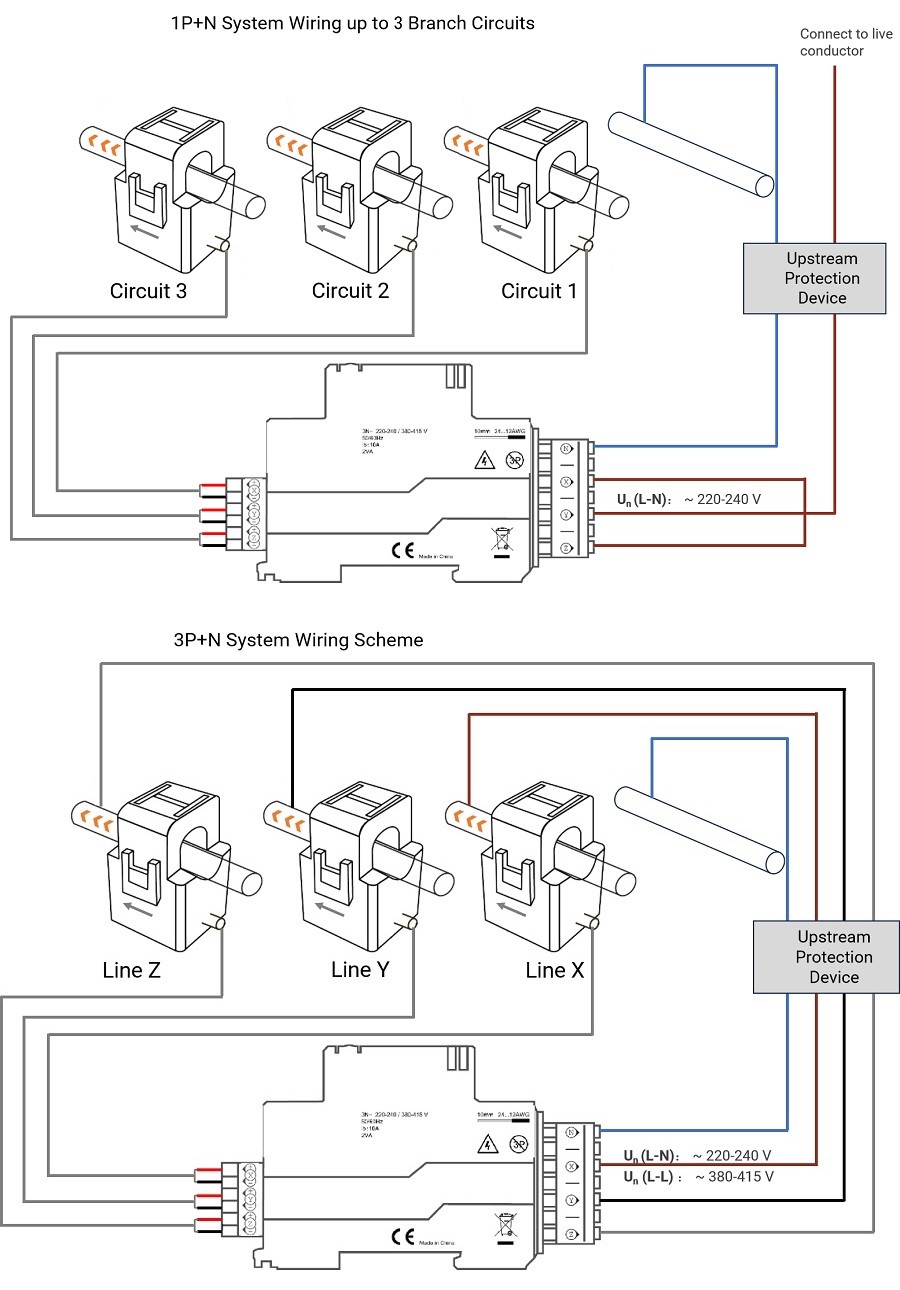

Can this device be used on a single-phase system?
Yes, it is designed for three-phase systems with a neutral wire (3P+N) and can also be applied to single-phase systems.
What is included in the package?

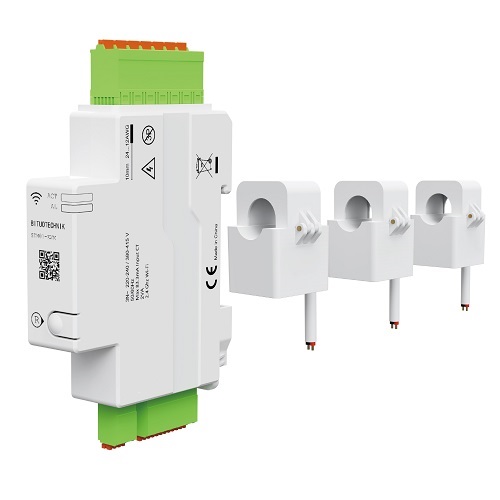

The package includes one DIN rail energy monitor and three 16mm split-core current transformers (CTs).
Which voice assistants are supported?
The device supports voice control via Amazon Alexa and Google Assistant.
