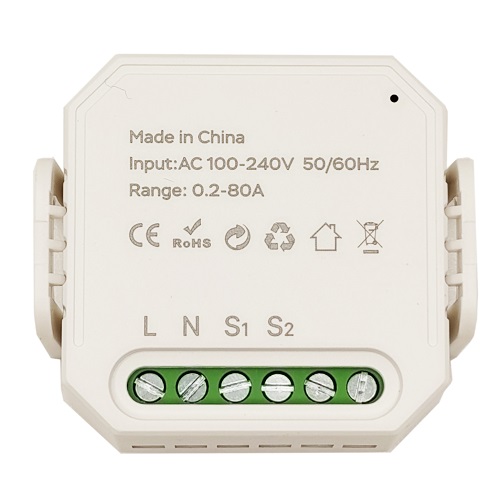

Tuya Smart Energy Meter 1P+N 80A Wi-Fi with CT Current Sensor
Price: 25.00 €
| Products ID: | 171888 |
|---|---|
| Manufactured by: | Tuya |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 9990001084080 |
Delivery options to:
Choose countryA compact single-phase smart energy meter with neutral wire (1P+N) designed for monitoring voltage, current, power, and energy consumption on a single circuit.
Key Features
- Current measurement up to 80A using a split-core CT sensor without interrupting power supply
- Wireless connectivity over 2.4GHz Wi-Fi via Tuya Smart and Smart Life apps
- Voice control compatibility with Amazon Alexa and Google Assistant
- Mounting options for standard 35mm DIN rail or wall installation with included bracket
- Integrated LED status indicator and reset button
| Number of channels | 1 |
|---|---|
| Measurement current | 0.2–80 A |
| Operating voltage | 100–240V AC |
| Frequency | 50/60 Hz |
| Energy measurement accuracy | ±2% |
| Wi-Fi frequency | 2.4 GHz |
| Wi-Fi standards | 802.11b/g/n |
| App | Tuya Smart / Smart Life (Android, iOS) |
| Voice control | Amazon Alexa, Google Assistant |
| Operating temperature | -10°C to +55°C |
| CT aperture diameter | 10.5 mm |
| CT cable length | 0.7 m |
| Dimensions | 46 x 46 x 21.3 mm |
How should the CT current sensor be installed?
Only one wire (either L or N) should pass through the CT module. Passing both wires through the sensor will result in a zero reading.
What mounting options are available?
The meter comes with a bracket supporting installation on a 35mm DIN rail or direct mounting on a wall.
