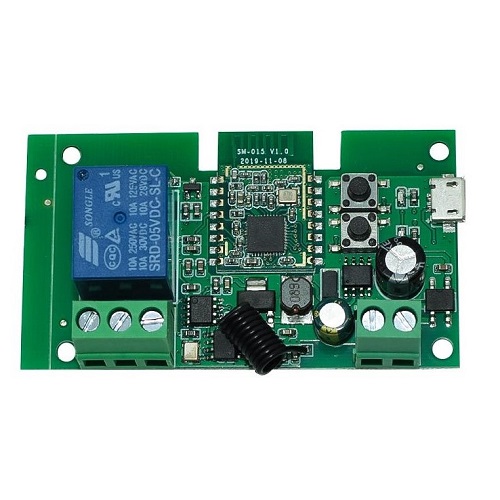

TUYA Gate Opener Relay Module 1CH 7-32V Wi-Fi RF
Price: 30.10 €
| Products ID: | 171412 |
|---|---|
| Manufactured by: | Tuya |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 9990001083694 |
Delivery options to:
Choose countryThe TUYA 1-channel wireless relay module is designed for remote control and automation of gates, garage doors, shutters, and other electronic devices using Wi-Fi and 433MHz RF.
Key Features
- Remote operation via Tuya Smart and Smart Life smartphone apps
- Voice control support with Amazon Alexa and Google Assistant
- RF remote control compatibility at 433MHz
- Built-in Bluetooth module for rapid initial pairing
- Supports scheduling, countdown timers, and status monitoring
- Dual power input via DC 7-32V terminals or standard USB 5V port
| Input voltage | DC 7-32V / USB 5V |
|---|---|
| Max current | 10A |
| Max power | 2200W |
| Wi-Fi standard | IEEE 802.11b/g/n (2.4 GHz) |
| RF frequency | 433MHz |
| Power consumption | approx. 80mA |
| Application | Tuya Smart / Smart Life (Android, iOS) |
| Voice control | Amazon Alexa, Google Assistant |
| Operating temperature | -20°C ~ +70°C |
| Relay lifespan | > 1,000,000 operations |
| Dimensions | 69x41x20mm |
| Weight | 27g |
| Warranty | 24 months |
What power sources are supported by this TUYA relay?
It can be powered via DC 7-32V terminal input or through a standard USB 5V port.
Can this device be controlled using RF remotes?
Yes, the module supports gate control with 433MHz RF remote controllers.
