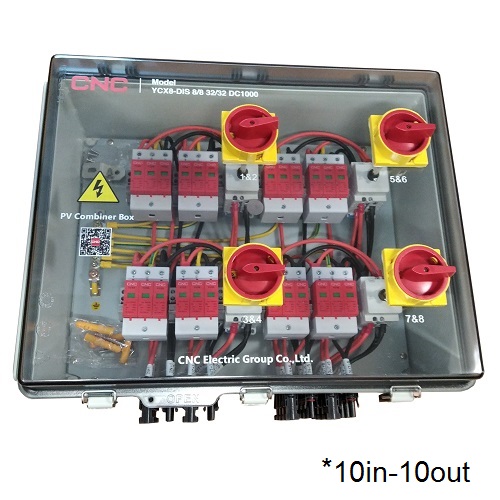

Solar PV Combiner Box DC 10 In 10 Out, 1000V, IP66
Price: 567.00 €
| Products ID: | 171866 |
|---|---|
| Manufactured by: | CNC |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 6978567817413 |
Delivery options to:
Choose countryDC string combiner box designed for 10 string in and 10 string out solar PV systems, providing surge protection and isolation at the solar DC side.
Key Features
- 10 inputs and 10 outputs rated for 1000V DC
- IP66 waterproof enclosure with UV resistance and V0 flame retardant rating
- Fitted with MC4 connectors
- Includes 4 DC switches (1000V, 50A) with lockable handle
- Includes 10 DC surge protection devices SPD (1000V, 40kA)
- Dimensions: 528 x 458 x 358 mm
| Inputs / Outputs | 10 in / 10 out |
|---|---|
| Rated Voltage | 1000V DC |
| Ingress Protection | IP66 |
| Flame Retardant Rating | V0 |
| Connectors | MC4 |
| DC Switches | 4 pcs (1000V, 50A) |
| DC SPD | 10 pcs (1000V, 40kA) |
| Dimensions | 528 x 458 x 358 mm |
| Standards | IEC60529, UL508i, IEC60947-3 Pv2 |
What is the voltage rating of this combiner box?
The combiner box and its integrated components are rated for 1000V DC.
What type of connectors does the box feature?
It is equipped with standard MC4 connectors.
What protection standards does the enclosure meet?
The enclosure has an IP66 waterproof rating, UV resistance, and a V0 flame retardant rating according to IEC60529 standards.
