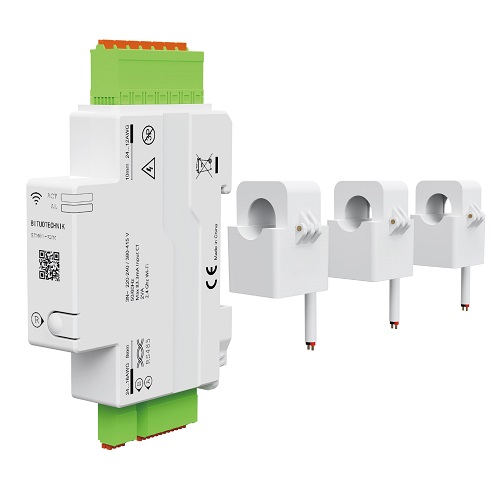

Smart Energy Monitor 3P+N, 120A, DIN, Modbus RS485
Price: 108.70 €
| Products ID: | 171454 |
|---|---|
| Manufactured by: | Tuya |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 9990001083816 |
Delivery options to:
Choose countryThis smart energy monitoring device is designed for tracking electricity consumption in three-phase systems with a neutral wire (3P+N) and single-phase setups.
Key Features
- Real-time measurements of voltage, current, power, frequency, and electricity consumption
- Current measurement up to 120A per phase
- Includes three 16mm split-core current transformers for quick installation
- Modbus RTU (RS485) communication model for industrial control systems
| System type | 3P+N (also applicable to single-phase systems) |
|---|---|
| Max. current (Imax) | 120 A |
| Operating voltage | 220~240V AC (phase-neutral) / 380~415V AC (phase-phase) |
| Frequency | 50/60 Hz |
| Insulation voltage (Ui) | 440 V |
| Energy measurement accuracy | 1%; Class 1 |
| Communication | Modbus RTU (RS485) |
| Mounting | DIN rail |
| CT internal diameter | 16 mm |
| Package contents | DIN rail monitor, 3 split-core CTs |
What is the maximum current rating per phase?
The monitor supports current measurement up to 120A per phase.
What communication protocol is supported?
It uses the Modbus RTU communication model over RS485.
What is included in the package?
The package includes one DIN rail energy monitor and three 16mm split-core current transformers.
