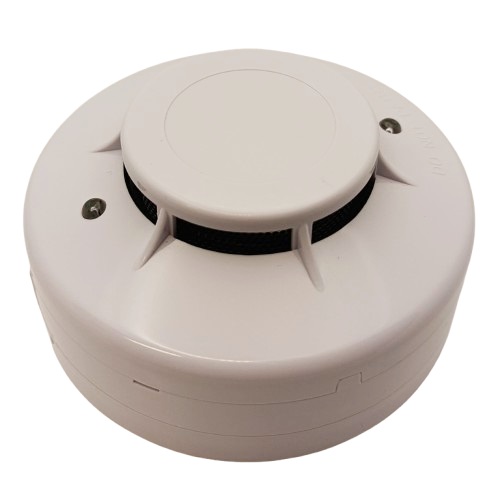

Photoelectric Smoke Detector, 2-Wire

Price: 15.70 €

Products ID:	171402
Manufactured by:	Hismart
Availablity:	Ready to Order
Delivery Time	5-10 business days
EAN:	9990000993178

Delivery options to:

Choose country

Photoelectric smoke detector with mounting base, designed for integration into multiple-station security systems via a standard 2-wire connection.

Features

Photoelectric chamber detects smoke early from any direction
2-wire connection allows for straightforward integration into the security system
Base mounts directly onto electrical junction boxes without additional adapters
Standby mode indicator light flashes every 32 seconds
Red LED lights up and transmits an alarm signal to the security system upon smoke detection

Type	Photoelectric smoke detector
Wiring	2-wire
Sensitivity	0.08 - 0.16 dB/m
Voltage	DC 9V (min.) - 35V (max.)

What is the operating voltage range for this detector?

The detector operates on a DC voltage ranging from 9V (min.) to 35V (max.).

How does the status indicator function?

In standby mode, the indicator light flashes every 32 seconds. When smoke is detected, the red LED illuminates and a signal is transmitted to the security system alarm.
