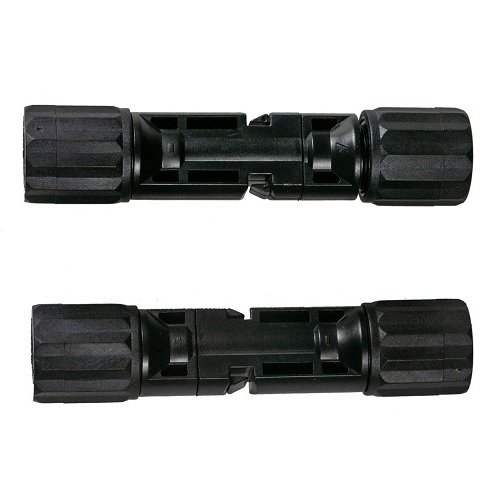

MC4 Solar Connector Set, 30A, 1000V DC, 10 pcs.
Price: 12.90 €
| Products ID: | 171383 |
|---|---|
| Manufactured by: | Extra Digital |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 9990000820238 |
Delivery options to:

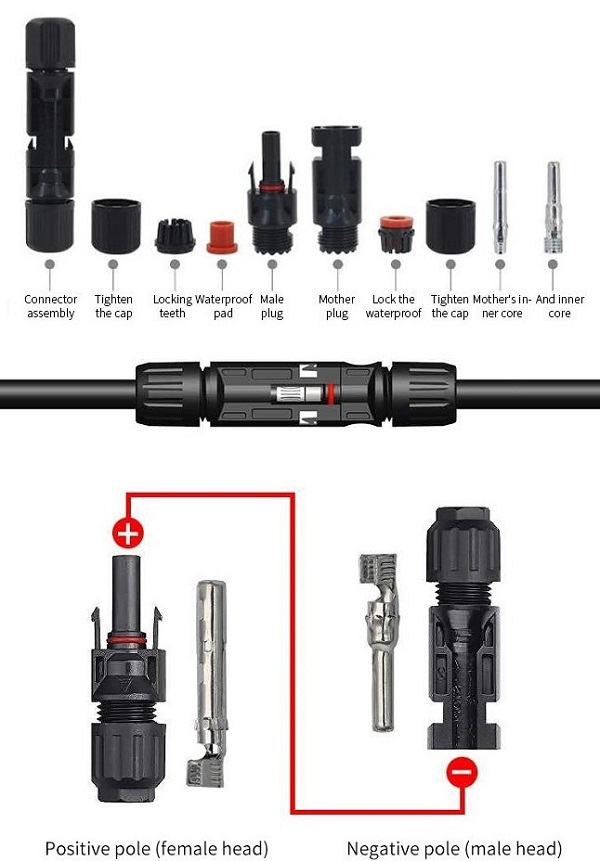

Choose countrySet of 10 MC4 photovoltaic solar connectors with crimp connection, designed for solar cables with a cross-section of 2.5 mm², 4 mm², and 6 mm².
Key Features
- Compatible with 2.5 mm², 4 mm², and 6 mm² solar cables
- Crimp connection system with self-locking mechanism for secure mating
- Inner core made of tin-plated copper
- PPO insulation material with IP67 protection rating
- Resistant to UV, impact, high temperatures, water, and dust
- Operating temperature range: -40°C to +85°C
| Connector type | MC4 |
|---|---|
| Quantity per set | 10 pcs. |
| Working current | 30A |
| Nominal voltage | < 1000V DC |
| Cable cross-section | 2.5 mm², 4 mm², 6 mm² |
| Connecting system | Crimp connection |
| Insulation material | PPO |
| Inner core material | Copper / tin plating |
| Plug connector resistance | 1 mOhm |
| Safety class | IP67 |
| Operating temperature | -40°C ~ +85°C |
| Certification | CE |
| Warranty | 24 months |
What cable sizes are compatible with these MC4 connectors?
These connectors are suitable for photovoltaic cables with wire sizes of 2.5 mm², 4 mm², and 6 mm².
What is the ingress protection rating of these connectors?
The connectors have an IP67 rating, offering protection against dust and water ingress.
