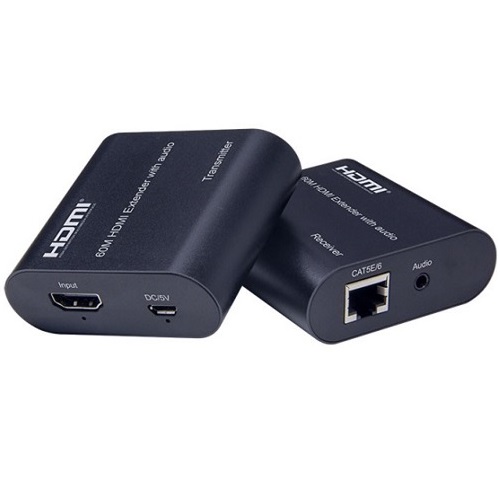

HDMI Extender over Cat5e/Cat6 up to 60m, 1080P, EDID
Price: 27.60 €
| Products ID: | 171886 |
|---|---|
| Manufactured by: | Extra Digital |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 9990000916139 |
Delivery options to:

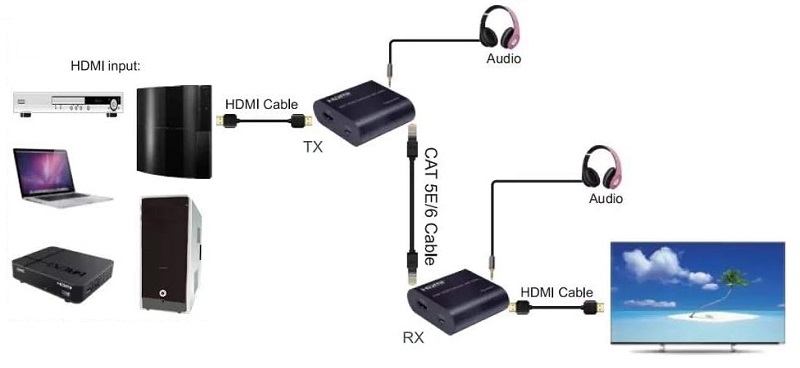

Choose countryThis HDMI extender transmits high-definition video and audio signals up to 60 meters using a single Cat5e or Cat6 Ethernet cable instead of an HDMI cable. It features plug-and-play operation and is powered via micro USB.
Key Features
- Supports resolution up to 1080p@60Hz
- EDID switch button for 720P/1080P selection (3-second press)
- 3.5mm stereo audio output on both TX and RX units
- Plug and play setup with no driver installation required
- Compatible with TVs, PCs, projectors, laptops, DVD players, and consoles
| Max transmission distance | Up to 60m (CAT5e/CAT6) |
|---|---|
| Supported resolutions | 1080p/1080i/720p/576p/576i/480p/480i (up to 1080p@60Hz) |
| Max bandwidth | 150MHz |
| Max data rate | 4.5Gbps |
| Audio ports | 3.5mm stereo (TX and RX) |
| Input cable distance | Up to 10m AWG26 HDMI |
| Output cable distance | Up to 15m AWG26 HDMI |
| Power supply | DC 5V (Micro USB) |
| Operating temperature | -15°C ~ +45°C |
| Dimensions | 60x56x19mm |
| Weight | TX 53g; RX 53g |
What cable is required to connect the transmitter and receiver?
A single Cat5e or Cat6 Ethernet cable up to 60 meters in length is used for transmission.
How do you switch the EDID resolution?
Press and hold the EDID button for 3 seconds to toggle between 720P and 1080P resolution.
What is included in the package?
The package includes one transmitter (TX), one receiver (RX), two micro USB cables, and a user manual.
