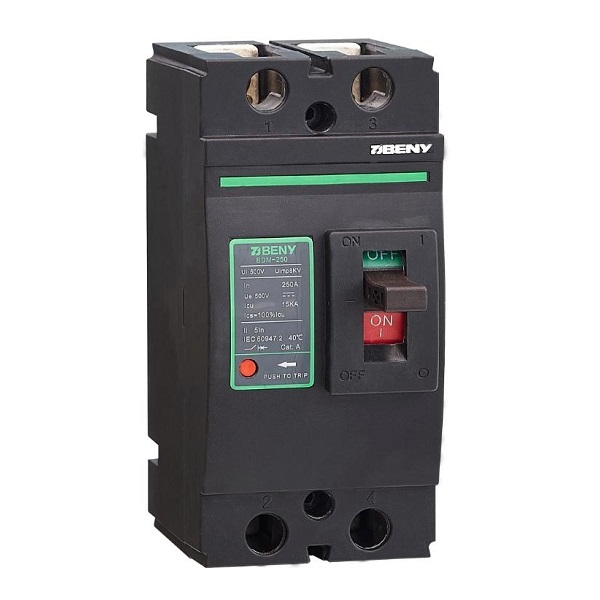

Molded Case DC Circuit Breaker 2P, 250A, 500VDC, Black
Price: 126.30 €
| Products ID: | 174007 |
|---|---|
| Manufactured by: | Beny |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 9990000821389 |
Delivery options to:
Choose countryMolded case DC circuit breaker designed for over-current protection and circuit control in solar photovoltaic installations, battery energy storage systems (BESS), and UPS applications.
Key Features
- 2-pole non-polarity design suitable for charging and discharging circuits.
- Protection against overload and short circuit.
- Compatible with grounded and ungrounded systems.
- Tested for operating temperatures from -40°C to 85°C.
| Poles | 2P |
|---|---|
| Rated current (In) | 250A |
| Rated voltage (Ue) | 500V DC |
| Insulation voltage (Ui) | 500V DC |
| Ultimate breaking capacity (Icu) | 15kA |
| Run breaking capacity (Ics) | 15kA |
| Rated impulse voltage (Uimp) | 8kV |
| Mechanical life | 10000 cycles |
| Electrical life | 2000 cycles |
| Protection class | IP20 |
| Certifications | AS/NZS IEC 60947.2, TUV-027276-E |
| Dimensions | 164.5x79.5x118 mm |
| Operating temperature | -40°C to 85°C |
| Color | Black |
What systems can this DC circuit breaker be used with?
It is suitable for solar PV systems, commercial battery energy storage systems (BESS), EV charging stations, and UPS applications.
Does this breaker support non-polarity connection?
Yes, it features a non-polarity design suitable for bidirectional charge and discharge.
