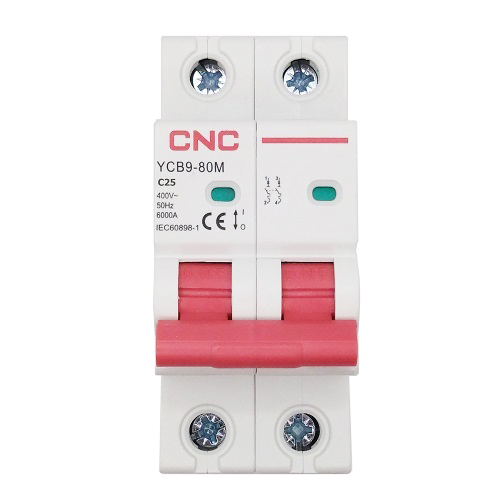

Miniature Circuit Breaker 2P 25A Class C 6kA
Price: 10.70 €
| Products ID: | 171182 |
|---|---|
| Manufactured by: | CNC |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 6942034315412 |
Delivery options to:
Choose countryTwo-pole miniature circuit breaker (2P) featuring a 25A rated current, Class C tripping characteristic, and 6kA breaking capacity for electrical circuit protection.
Key Features
- Protection against overload and short circuits
- Visual contact position indication (red for closed, green for open)
- Flame-retardant body with high temperature and impact resistance
- Top and bottom connection for cables and pin-type busbars up to 25mm²
- Convenient mounting on standard 35mm DIN rail (EN 60715)
| Number of Poles | 2 |
|---|---|
| Rated Current (In) | 25 A |
| Tripping Characteristic | Class C |
| Rated Voltage (Ue) | AC 400 V |
| Insulation Voltage (Ui) | 500 V |
| Rated Frequency | 50/60 Hz |
| Rated Breaking Capacity (Icu) | 6000 A (6 kA) |
| Rated Impulse Withstand Voltage (Uimp) | 6000 V |
| Mechanical Life | 20000 operations |
| Electrical Life | 8000 operations |
| Safety Class | IP20 |
| Wire / Busbar Cross-Section | up to 25mm² / 18-3 AWG |
| Installation | DIN rail EN 60715 (35mm) |
| Operating Temperature | -5°C ~ +40°C |
What type of mounting does this circuit breaker require?
It is designed for fast clip mounting on standard 35mm DIN rail according to EN 60715.
What wire sizes are supported by the terminals?
The terminals support cable or pin-type busbar connections up to 25mm² (18-3 AWG) from both the top and bottom.
