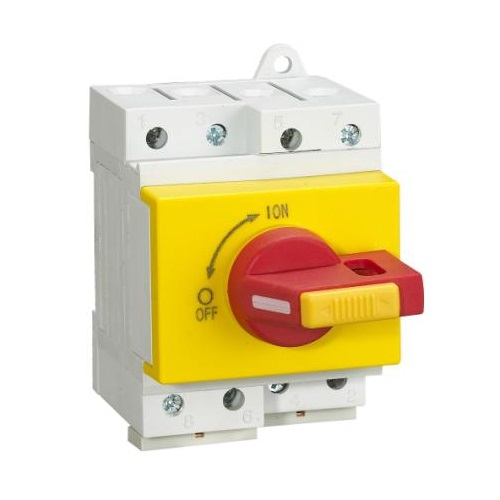

DC Isolator Switch 4P 32A 1200V DC DIN Rail Mount
Price: 27.80 €
| Products ID: | 178686 |
|---|---|
| Manufactured by: | Hismart |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 9990000821402 |
Delivery options to:
Choose countryDIN rail mounting DC isolator switch rated up to 1200V and 32A with a lockable handle for safe operation and maintenance.
Key Features
- Applied to 1-20kW inverters, controllers, and DC combiner boxes in on-grid and off-grid PV solar systems
- Arcing time of less than 3ms for effective disconnection
- Complies with IEC60947.3 and AS60947.3 DC-PV2 standards
- Lockable handle and door clutch mechanism for secure handling
| Number of contacts | 4 |
|---|---|
| Rated working voltage (Ue) | DC 1200V |
| Insulation voltage (Ui) | DC 1200V |
| Rated current (In) | 16A / 25A / 32A |
| Max rated current | 32A |
| Rated impulse voltage (Uimp) | 8kV |
| Mechanical life cycles | 20 000 |
| Electrical life cycles | 2 000 |
| Installation | On a DIN rail |
| Connector type | M4 |
| Wire cross-sections | Max. 4-16 mm² |
| Arcing time | < 3 ms |
| Standards | IEC60947.3, AS60947.3 DC-PV2 |
What systems can this DC isolator switch be used with?
It is designed for 1-20kW inverters, controllers, and DC combiner boxes in residential or commercial on-grid and off-grid solar PV systems.
How is the switch mounted?
The switch is designed for standard DIN rail installation.
