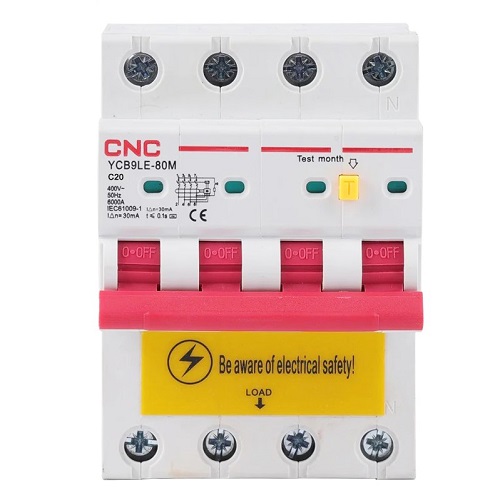

Residual Current Breaker with Overcurrent RCBO 4P 20A Class C 30mA 6kA
Price: 39.20 €
| Products ID: | 171190 |
|---|---|
| Manufactured by: | CNC |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 6942034324117 |
Delivery options to:
Choose countryResidual current circuit breaker with overcurrent protection (RCBO) designed for combined protection against overloading, short-circuiting, and earth leakage currents.
Key Features
- 4-pole configuration with 20A rated current and class C tripping characteristic
- 30mA rated sensitivity and 6kA breaking capacity
- Contact position indicator (red indicates closed, green indicates open)
- Flame retardant construction with impact and high temperature resistance
- Anti-mistake contact terminal block
| Number of poles | 4 |
|---|---|
| Rated current (In) | 20 A |
| Class / Curve | C |
| Rated voltage (Ue) | AC 230 V |
| Rated sensitivity | 30mA |
| Breaking capacity | 6kA |
What type of protection does this RCBO provide?
It provides combined protection against overloading, short circuits, and earth leakage currents.
How does the contact position indicator work?
Red indicates that the contacts are closed, while green indicates that the contacts are open.
