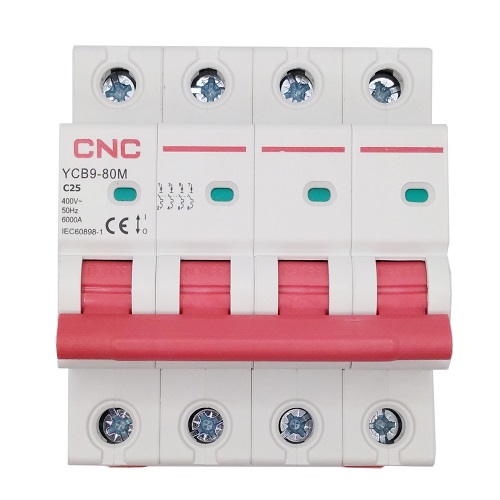

Miniature Circuit Breaker 4P, 25A, Class C, 6kA
Price: 18.90 €
| Products ID: | 171151 |
|---|---|
| Manufactured by: | CNC |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 6942034316143 |
Delivery options to:
Choose country4-pole miniature circuit breaker with a rated current of 25 A and tripping characteristic Class C, designed for electrical circuit protection.
Key Features
- Protection against overload and short circuit
- Contact position indicator (red indicates closed, green indicates open)
- Flame retardant, high temperature resistant, and impact resistant housing
- Top and bottom connection supporting wire or pin-type busbar up to 25 mm²
- Fast-clip mounting on standard 35 mm DIN rail EN 60715
| Number of poles | 4 |
|---|---|
| Rated current (In) | 25 A |
| Tripping characteristic | C |
| Rated voltage (Ue) | AC 400 V |
| Insulation voltage (Ui) | 500 V |
| Rated frequency | 50/60 Hz |
| Rated breaking capacity (Icu) | 6000 A |
| Rated impulse withstand voltage (Uimp) | 6000 V |
| Mechanical life | 20000 operations |
| Electrical life | 8000 operations |
| Protection rating | IP20 |
| Terminal connection type | Cable / pin-type busbar |
| Wire/busbar cross-section | up to 25 mm² / 18-3 AWG |
| Connection | Top and bottom |
| Mounting | On DIN rail EN 60715 (35 mm) |
| Operating temperature | -5°C ~ +40°C |
How is this circuit breaker mounted?
It is mounted on a standard 35 mm DIN rail (EN 60715) using an integrated fast-clip device.
What wire sizes are supported by the terminals?
The terminals support cables and pin-type busbars with a cross-sectional area of up to 25 mm² (18-3 AWG).
What do the contact position indicator colors mean?
Red indicates that the contacts are closed (circuit ON), and green indicates that the contacts are open (circuit OFF).
