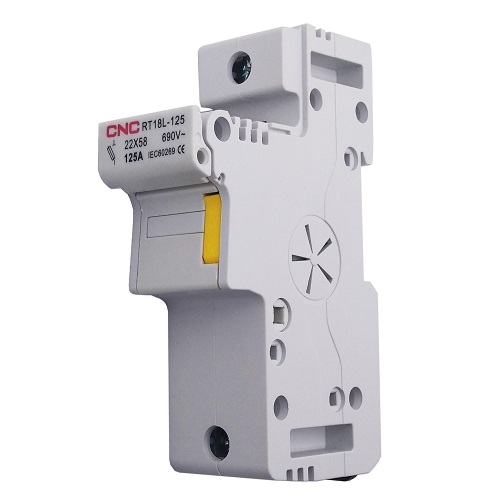

Fuse Holder 1P 690V 125A DIN Rail Mount (22x58 mm)
10.00 €
CNC
Products ID: 171780
In supplier warehouse
Available to order: 5 pcs.
Delivery Time 5–10 business days
Delivery options to:
Choose countrySingle-pole fuse holder designed for holding, protecting, and mounting standard 22x58 mm gG fuses on a DIN rail to provide circuit protection against overloads and short circuits.
Key Features
- Suitable for 22x58 mm gG standard fuses
- Mounting on standard 35 mm DIN rail
- Rated voltage up to 690 V
- Maximum conventional heating current of 125 A
- Complies with IEC 60269 standard and CE certified
| Number of poles | 1 |
|---|---|
| Rated voltage | 690V |
| Conventional heating current (max.) | 125A |
| Suitable fuse size | 22x58 mm |
| Installation | On 35mm DIN rail |
| Dimensions | 126x78x36 mm |
| Standard & Certificates | IEC 60269, CE |
| EAN | 6942108772196 |
|---|
What size fuse is compatible with this holder?
This holder is compatible with standard gG fuses sized 22x58 mm.
How is this fuse holder mounted?
It is designed for mounting on a standard 35 mm DIN rail.
