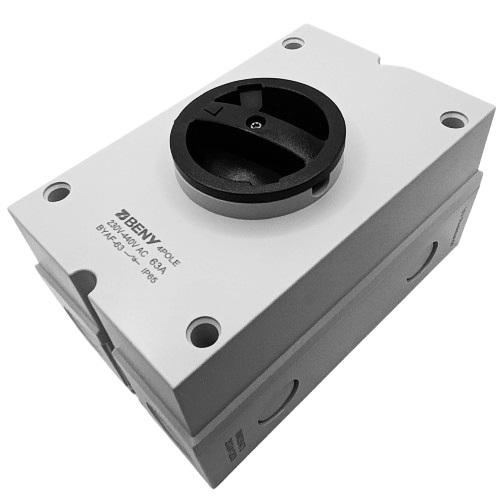

AC Isolator Switch 4P, 230-440V AC, IP65, White
Price: 34.20 €
| Products ID: | 171418 |
|---|---|
| Manufactured by: | Beny |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 9990000822638 |
Delivery options to:
Choose countryEnclosed rotary 4-pole AC isolator switch with IP65 protection, designed for external applications and solar inverter AC connections within the 230-440V range.
Key features
- 4-pole configuration for 230-440V AC systems
- Weatherproof IP65 enclosed casing for outdoor installations
- Lockable rotary handle for safe maintenance and operation
- Base-mounted mechanism offering ample wiring room
- Compatible with cable cross-sections from 4.0 to 16.0 mm²
- Includes mounting screws
| Number of poles | 4 |
|---|---|
| Rated voltage (Ue) | AC 230-440V |
| Rated current (In) | 32A |
| Insulation voltage (Ui) | 1000V |
| Rated impulse withstand voltage (Uimp) | 2.5kV |
| Mechanical service life | 10000 cycles |
| Electrical service life | 1500 cycles |
| Protection class | IP65 |
| Suitable cable cross-section | 4.0 - 16.0 mm² |
| Switch rating | AC-21A |

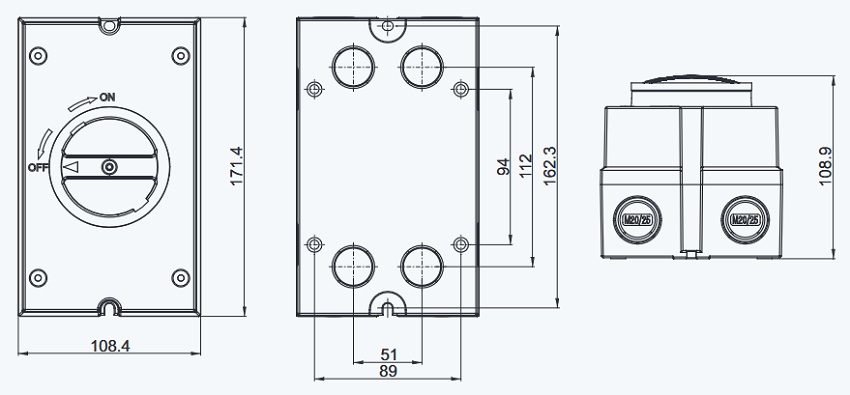

| Dimensions | 171.4 x 108.4 x 108.9 mm |
| Color | White |
| Standards | IEC 60947-3, EESS |
What cable sizes are compatible with this switch?
This isolator switch accommodates cable cross-sections ranging from 4.0 to 16.0 mm².
Is this switch suitable for outdoor installations?
Yes, it features an IP65 weatherproof enclosure suitable for outdoor environments.
