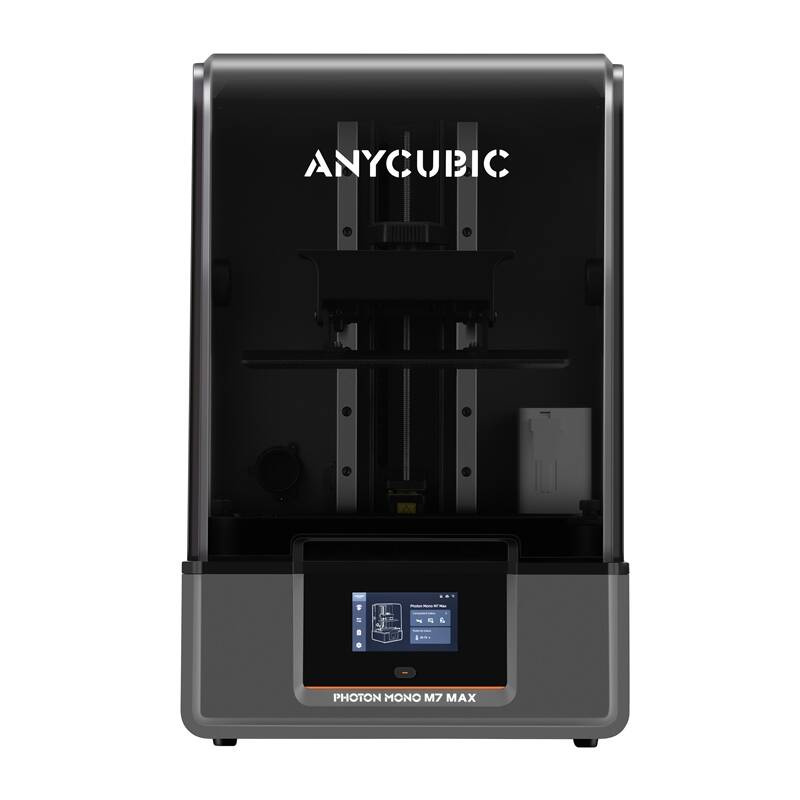

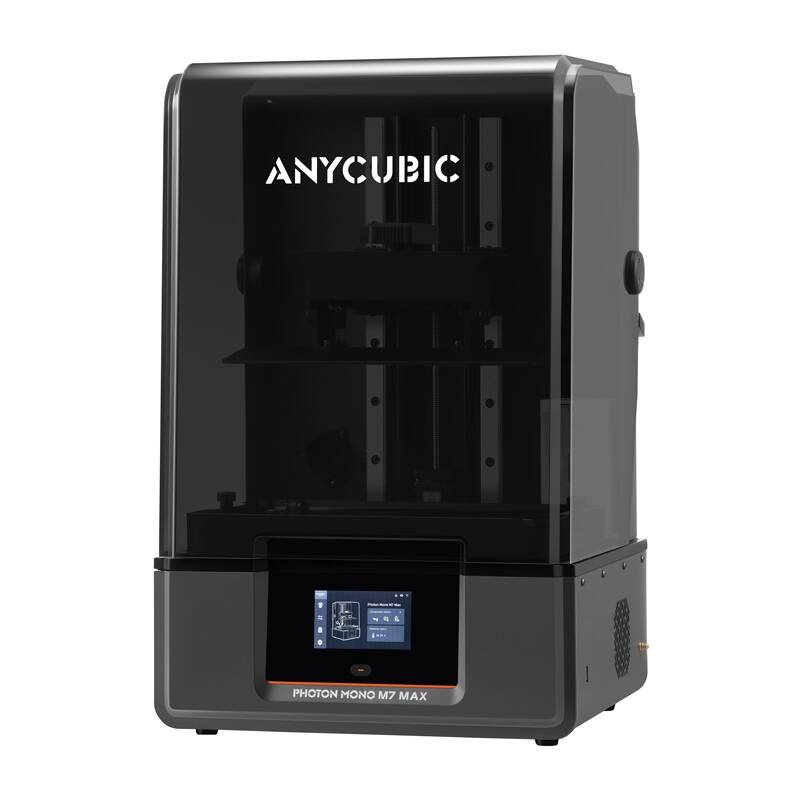

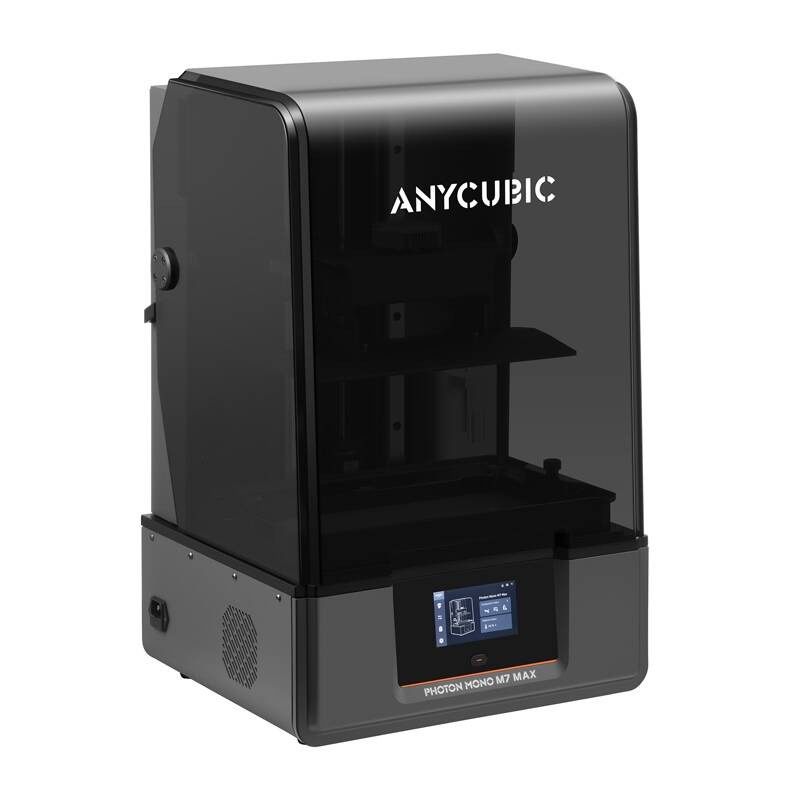

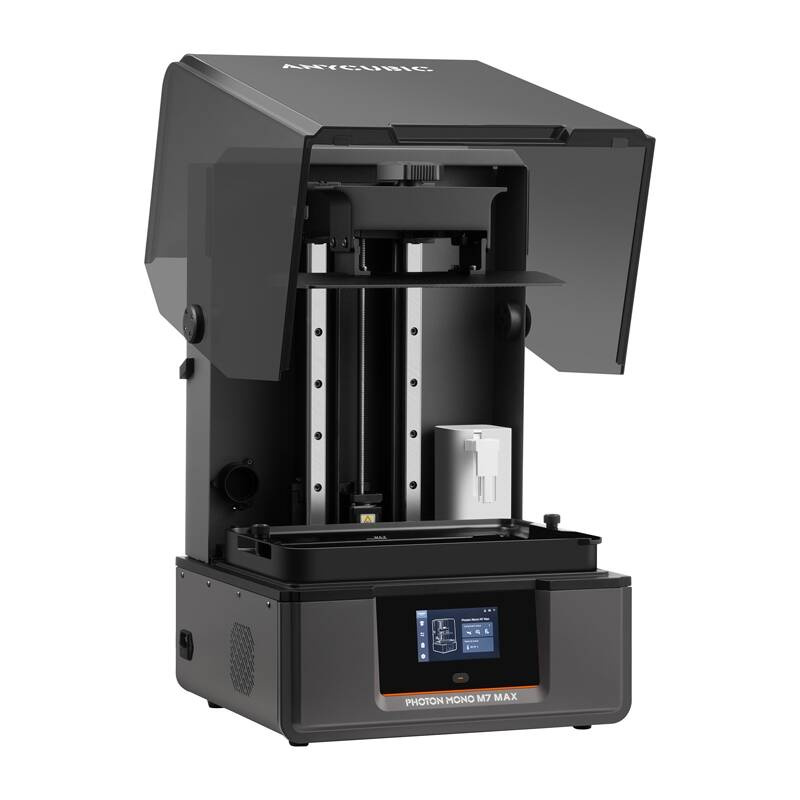

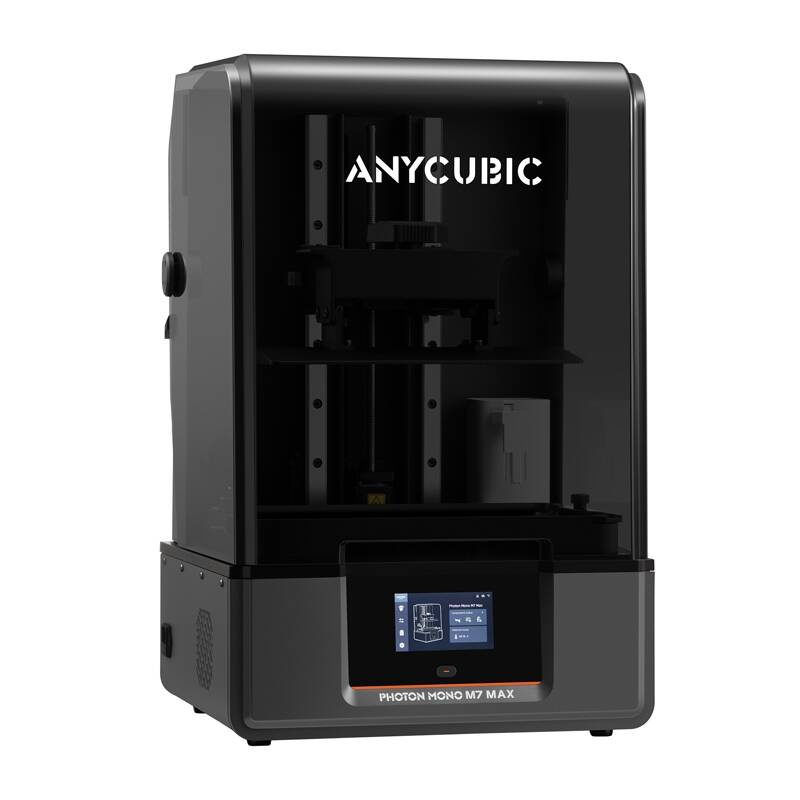

Anycubic Photon Mono M7 Max 3D Printer (PM7M-IP-O)

Anycubic Photon Mono M7 Max 3D Printer (PM7M-IP-O) — image 3

Anycubic Photon Mono M7 Max 3D Printer (PM7M-IP-O) — image 4

Anycubic Photon Mono M7 Max 3D Printer (PM7M-IP-O) — image 5

Price: 736.10 €

Products ID:	175298
Manufactured by:	Anycubic
Availablity:	Ready to Order
Delivery Time	5-10 business days
EAN:	6974662351050

Delivery options to:

Choose country

Anycubic Photon Mono M7 Max 3D Printer (PM7M-IP-O)

The Anycubic Photon Mono M7 Max is a resin 3D printer featuring a large build volume and a 7K monochrome LCD screen, engineered for high-precision prototypes and large-scale models.

Key Features

13.6" 7K Monochrome Screen: Delivers 6480 x 3600 pixel resolution for detailed printing.
Expansive Build Area: 298 x 164 x 300 mm dimensions and 14.7L volume allow for larger prints without segmentation.
UV Curing System: COB light source combined with forward-facing reflectors and a Fresnel lens ensures uniform exposure.
Dual Linear Z-Axis: Features dual liners with 10 µm accuracy for stable vertical motion.
Intuitive Control: Equipped with a 4.3-inch TFT touchscreen and supports data transfer via USB 2.0 and Wi-Fi.

Manufacturer	Anycubic
Model	PM7M-IP-O
Printing dimensions	298 x 164 x 300 mm
Print volume	14.7L
Exposure screen	13.6" monochrome 7K screen (6480 x 3600 px)
Screen lifespan	Typical life of 2000 hours
Light source	COB light source + forward-facing reflectors + fresnel lens
Z axis	Dual liners with 10 um accuracy
Construction platform	Laser-engraved aluminum alloy
Resin tank	1.3 l, unibody design with scale lines
Control panel	4.3-inch TFT touch screen
Data input	USB type A 2.0, Wi-Fi
Machine leveling	4-point manual leveling
Rated power	180 W
Dimensions	425 x 362 x 652 mm
Weight	24 kg

What is the maximum print volume of the Photon Mono M7 Max?

The printer has a maximum build volume of 14.7 liters, with printing dimensions of 298 x 164 x 300 mm.

How can data be transferred to the printer?

The device supports data input via a USB Type-A 2.0 drive and Wi-Fi connectivity.

What items are included in the package?

The package includes the Anycubic Photon Mono M7 Max printer, printing platform, resin vat, two scrapers, a hex key set, leveling paper, auto-fill unit cap, USB drive, power cord, protective equipment, filter, user manual, and antenna.
