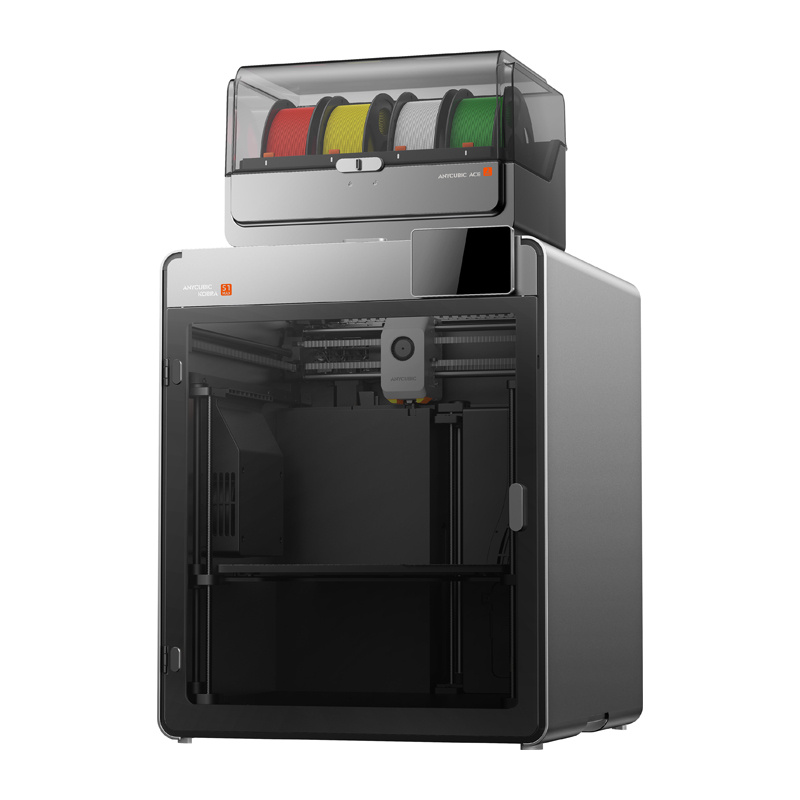

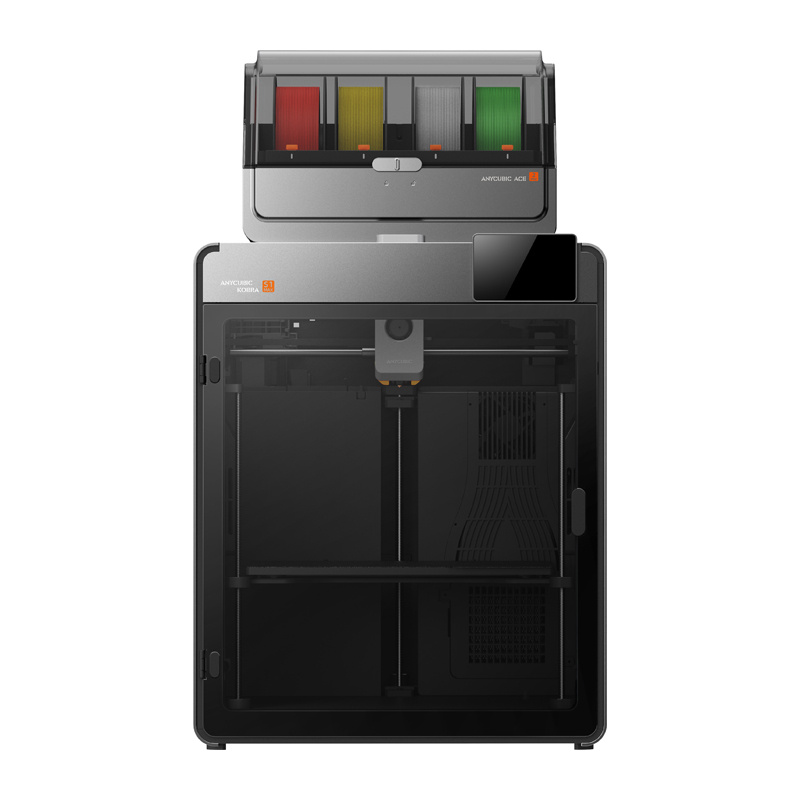

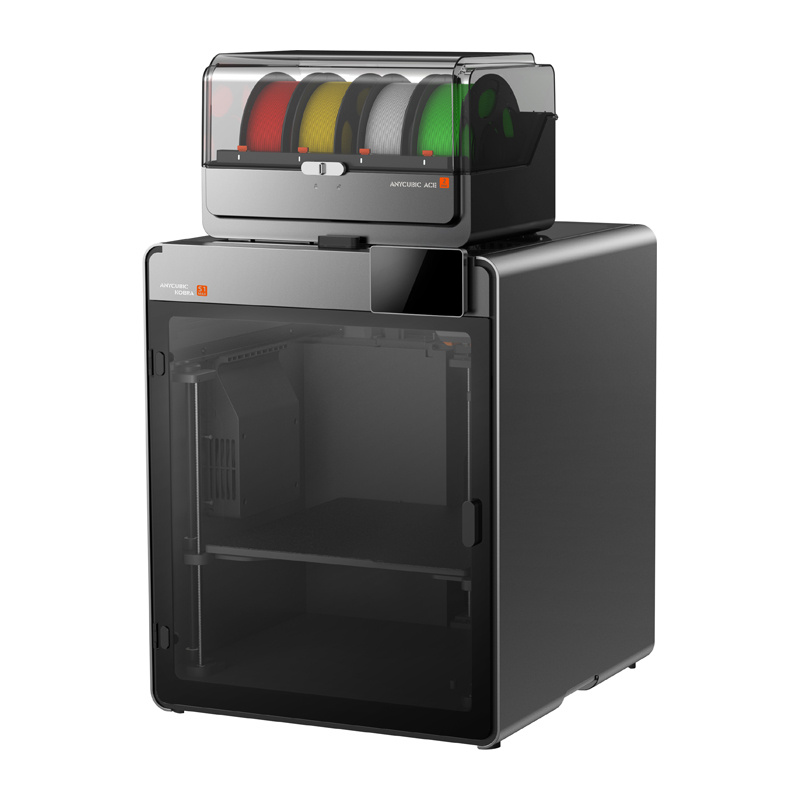

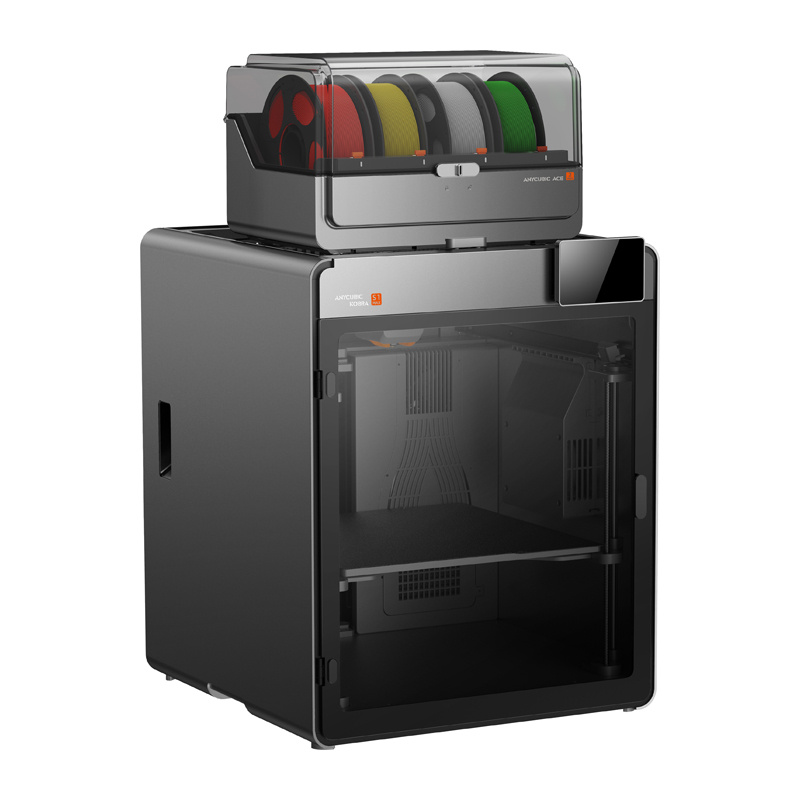

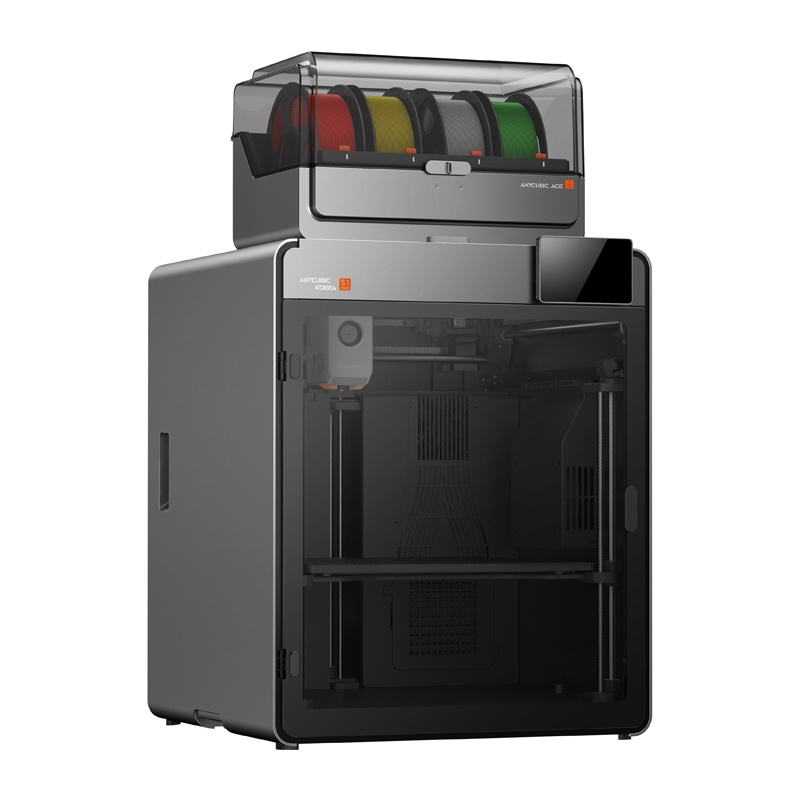

Anycubic Kobra S1 Max Combo 3D printer with ACE 2 Pro, 350 × 350 × 350 mm
Delivery options to:
Choose countryThe Anycubic Kobra S1 Max Combo is an FDM 3D printer for large models and multi-part builds. Its included ACE 2 Pro enables 4-colour printing and filament drying during printing; an additional system upgrade expands colour support to 16.
Build capacity and materials
A 350 × 350 × 350 mm build volume is paired with an all-metal CoreXY design and X/Y linear guides. Recommended print speed is 300 mm/s, with a maximum of 600 mm/s. The hotend reaches 350 °C, the build plate 120 °C and the actively heated chamber 65 °C, supporting a broad range of filaments including reinforced materials. A hardened steel extruder gear and nozzle handle abrasive filaments, while a titanium alloy coupler provides a thermal barrier.
Automation and control
- Preparation: LeviQ 3.0 adaptive levelling and flow dynamics calibration.
- Print monitoring: foreign-object and spaghetti detection, damaged-object skipping and recovery after a power loss.
- Filament management: ACE 2 Pro monitors temperature and humidity, actively removes moisture, estimates remaining filament and supports automatic changes and identification.
- Access: a 4.3-inch touchscreen, Ethernet, dual-band Wi-Fi with Wi-Fi 6 support and remote monitoring through the Anycubic app.
Time-lapse recording, activated carbon filtration, a quick-release hotend and an accessible waste channel support everyday operation. The printer’s quiet mode operates at 45 dB.
Included equipment
Includes 1 printer, 1 ACE 2 Pro, 1 spool holder, 1 spool holder assembly, 1 signal cable, 4 Teflon tubes, 2 power cords, 1 re-enter detection module with 4-in-1 hub, 2 M4×16 screws, 2 M2.5×25 screws and 2 cable clips. Also supplied: one each of 2.5, 2.0 and 1.5 mm Allen keys, filament samples, a nozzle cleaning needle, lubricant, a 0.6 mm hardened steel nozzle, a nozzle cleaning module, a nozzle washer and an activated carbon pack.
| Printing method | FDM |
|---|---|
| Design | CoreXY |
| Build volume | 350 × 350 × 350 mm |
| Printer dimensions | 502.7 × 483 × 584 mm |
| Printer net weight | 25.7 kg |
| Recommended print speed | 300 mm/s |
| Maximum print speed | 600 mm/s |
| Layer thickness | 0.08–0.28 mm |
| X / Y / Z positioning accuracy | 0.0125 / 0.0125 / 0.0008 mm |
| Number of nozzles | 1 |
| Standard nozzle diameter | 0.4 mm |
| Optional nozzle diameters | 0.25 / 0.6 / 0.8 mm |
| Maximum print head temperature | 350 °C |
| Maximum build plate temperature | 120 °C |
| Heated chamber | Active, up to 65 °C |
| Compatible filaments | PLA, PETG, TPU, PET, PLA-CF, PETG-CF, PVA, ABS, ASA, PC, PA, PA6-CF, PC-CF, PC-GF, PET-CF |
| X/Y axes | Linear guides |
| Z axis | Single motor, three trapezoidal screws, three guides |
| Automatic levelling | LeviQ 3.0, adaptive |
| Flow dynamics calibration | Supported |
| Print cooling | Dual fan |
| Air filtration | Activated carbon |
| Control screen | 4.3-inch capacitive touchscreen |
| Firmware | Kobra OS |
| Time-lapse recording | Supported |
| Filament end sensor | Supported |
| AI detection | Foreign-object detection, spaghetti detection, object skipping |
| Resume after power loss | Supported |
| Ethernet port | Supported |
| Quiet mode | 45 dB |
| Slicer software | AC Slicer / PrusaSlicer / Cura |
| Ecosystem | Anycubic Slicer Next / Anycubic App / Makeronline |
| Input formats | STL, OBJ |
| Output format | GCode |
| Connection software | Anycubic App, Anycubic Slicer |
| Wi-Fi frequencies | 2.4 GHz, 5 GHz |
| Wi-Fi mode | STA |
| Additional connectivity support | Wi-Fi 6 |
| Input voltage | 110 V~ / 220 V~ |
| Rated power | 1000 W / 2200 W |
| Multicolour printing | 4 colours as standard, expandable to 16 colours |
| Multicolour module model | ACE 2 Pro |
| ACE 2 Pro dimensions | 368 × 291.5 × 236.5 mm |
| ACE 2 Pro net weight | 3.7 kg |
| ACE 2 Pro active drying | Up to 65 °C during printing |
| ACE 2 Pro motor type | Brushless |
| ACE 2 Pro noise level | Below 48 dB |
| Temperature and humidity monitoring | Supported |
| Active moisture removal | Solenoid valves |
| EAN | 6974662353931 |
|---|
Does this set print in 16 colours out of the box?
No. The included single ACE 2 Pro module enables 4-colour printing. Printing in up to 16 colours requires an additional system upgrade.
Can filament be dried while printing?
Yes. ACE 2 Pro actively dries filament at up to 65 °C during printing and monitors temperature and humidity inside the module.
