TFA HumidCheck Contact 30.5503 Material Moisture Meter
TFA
| Products ID: | 186333 |
|---|---|
| Manufactured by: | TFA |
| Availablity: | Ready to Order |
| Delivery Time | 7-15 business days |
| EAN: | 4009816019264 |
Delivery options to:
Choose country
The TFA HumidCheck Contact 30.5503 is a capacitive material moisture meter designed for quick and straightforward moisture testing of firewood, building materials, and walls.
Non-Destructive Measurement

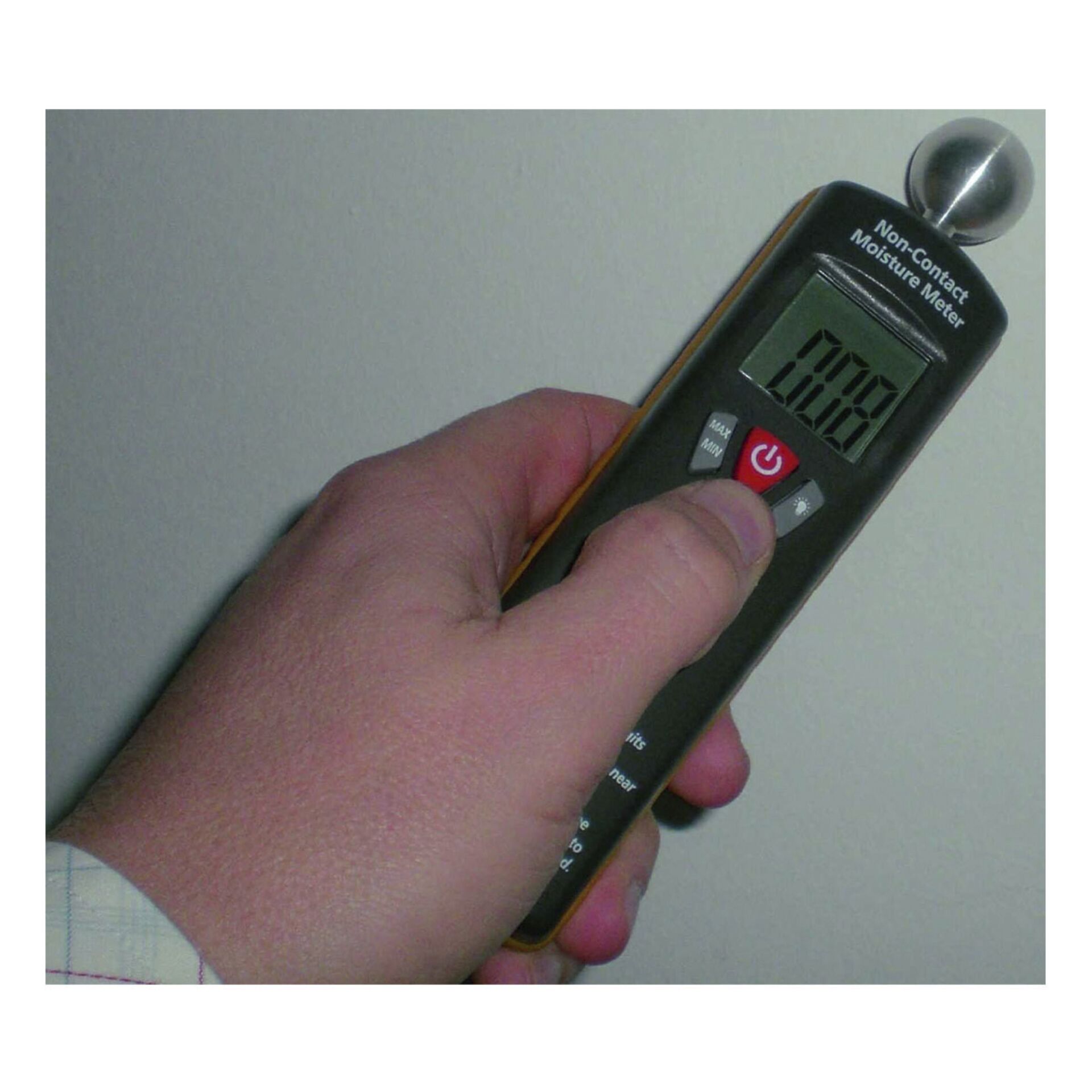

This measuring device is suitable for on-site inspections at construction sites and in new buildings. Thanks to the capacitive measuring principle, it measures up to 40 mm deep without causing surface damage. Operation requires simply touching the object with the sensor ball, pressing the measurement button, and reading the value on the display.
Practical Monitoring Features
The device includes a display backlight and a function for tracking highest and lowest recorded values. Checking the moisture content of firewood prior to burning is particularly important, as wood cell moisture exceeding 20% reduces heating efficiency and leads to soot, tar, and smoke formation.
- Measures moisture in wood and building materials
- Non-destructive depth measurement up to 40 mm
- Highest and lowest value recording function
- Display backlight for clear visibility
- Capacitive measurement principle using a contact ball
| Depth | 48 mm |
|---|---|
| Weight | 139 g |
| Colour | Black |
| Width | 34 mm |
| Height | 200 mm |
| Plastic Pipes, Filled with Water | No |
| Ferrous Metals | No |
| Live Wires | No |
| Non-Ferrous Metals | No |
| Wooden Substructure | Yes |
| Plastic Pipe, Empty | No |
| Maximum Detection Depth | 40 mm |
| Automatic Switch-Off | No |
| Required Number of Batteries | 1 |
| Type of Battery | 9V-Block (6LR61) |
| Type | Material Humidity Meter |
How deep can the device measure without causing damage?
The capacitive sensor can measure up to 40 mm deep into the material without penetrating or damaging the surface.
What type of battery powers the meter?
The device operates on a single 9V block battery (6LR61).
Which materials can be checked with this meter?
It is designed for checking moisture in firewood, walls, and building materials, and detects wooden substructures.
