Thermal Master X2 USB-C Thermal Imaging Camera
Price: 293.70 €
| Products ID: | 177000 |
|---|---|
| Manufactured by: | THERMAL MASTER |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 6977658980043 |
Delivery options to:
Choose country

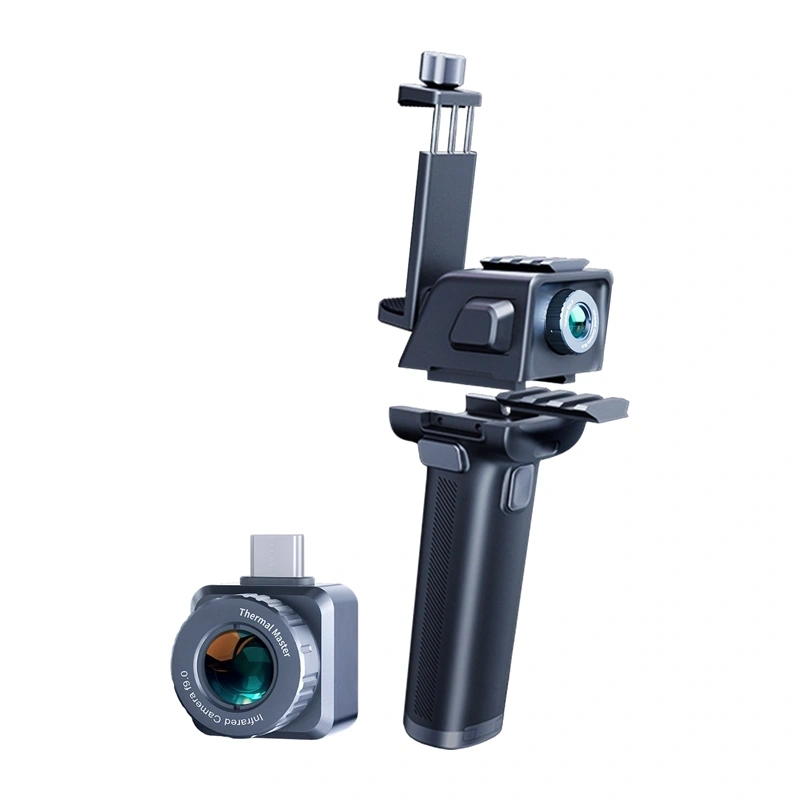

The Thermal Master X2 is a compact USB-C thermal imaging camera designed to turn a compatible smartphone into a precise diagnostic and outdoor observation tool.
Key Features
- Infrared sensor with 256 × 192 resolution, upscaled to 512 × 384 via the X³ Super algorithm
- Smooth 50 Hz refresh rate for real-time tracking and inspection
- Built-in 15x digital zoom for detailed viewing of distant objects
- HD and Highlight image display modes for clear thermal analysis
- Controlled via the dedicated Thermal Master application on Android
| Manufacturer | THERMAL MASTER |
|---|---|
| Model | X2 |
| Detection range | 984 yards (person 1.8 m tall) |
| Magnification | 15x zoom |
| Infrared resolution | 256 to 512 pixels |
| X³ Super algorithm | Supported |
| Frame rate | 50 Hz |
| 20-in-1 | ArmorX tactical kit, supports 20 modifications |
| 2-in-1 | Thermal monocular + thermography |
| Focal length | 39 mm lens = 13 mm lens ©17 µm |
| Focus mode | Manual focus |
| Dual-image mode | HD mode and backlight mode, one-touch switching |
| Block arc mode | Exclusive patent |
| Hotspot tracking (hotspot) | Tactical heat tracking |
| Crosshair | 8 shapes + 5 colors, quick switching |
| Ninja mode | 2 meters completely hidden |
| Razor X | Supported |
| Insight+ | Supported |
| Tactical assistant | E-compass/speed/position/weather/time |
| Professional temperature measurement | Supports correction for emissivity/target distance/ambient temperature |
| NETD | 40 mK (@25°C, F#1.0) |
| Precise 1Q+ temperature measurement | Supported |
| Dedicated color palette for outdoor use | Night vision Green/Bird/Hot White/Hot Black/Red Head/Iron Red |
| Battery life | 300–480 minutes (e.g., Samsung Galaxy S23+ with a 4700 mAh battery – 367 minutes) |
| Application scenarios | Outdoors/camping/off-road/rescue/tactics/hidden camera detection/leak detection in HVAC systems, etc. |
| Field of view | 19.63° x 14.71° |
| Weight (with lens) | 18.5 g |
| Temperature measurement range | (0°C–100°C) |
| Operating temperature | (-20°C–60°C) |
| Dimensions (with lens) | 23 mm x 23 mm x 23.8 mm |
| Video memory | Photo and video recording function |
| App name | Thermal Master |
| Operating system | Android 9.0 and later |
What is included in the package?
The package includes the thermal imaging camera, a mount, an ArmorX case/cover, and a user manual.
Which operating systems are compatible?
The device is compatible with Android 9.0 and later using the Thermal Master application.
