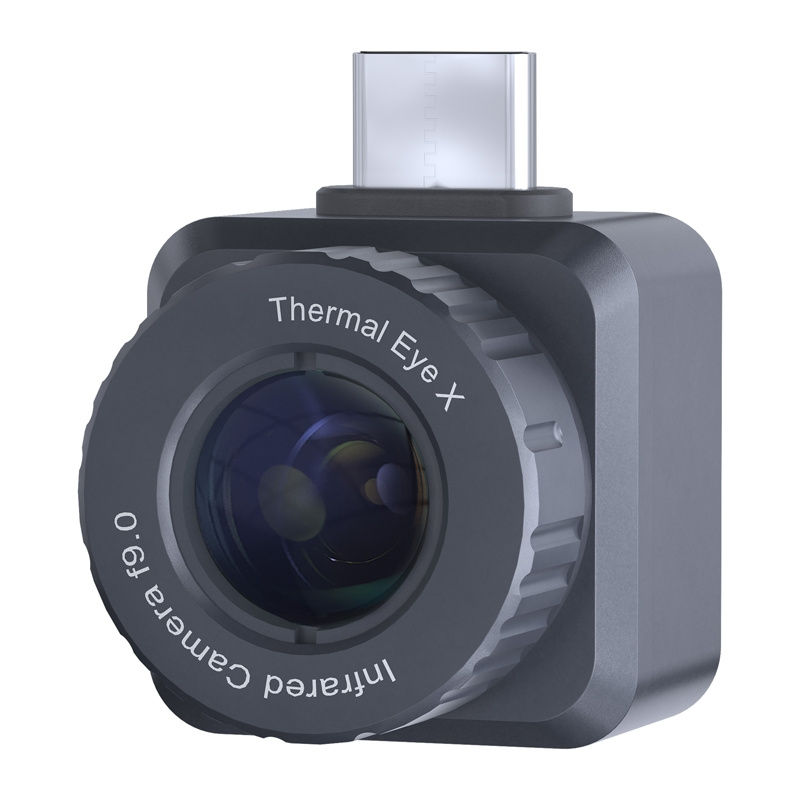

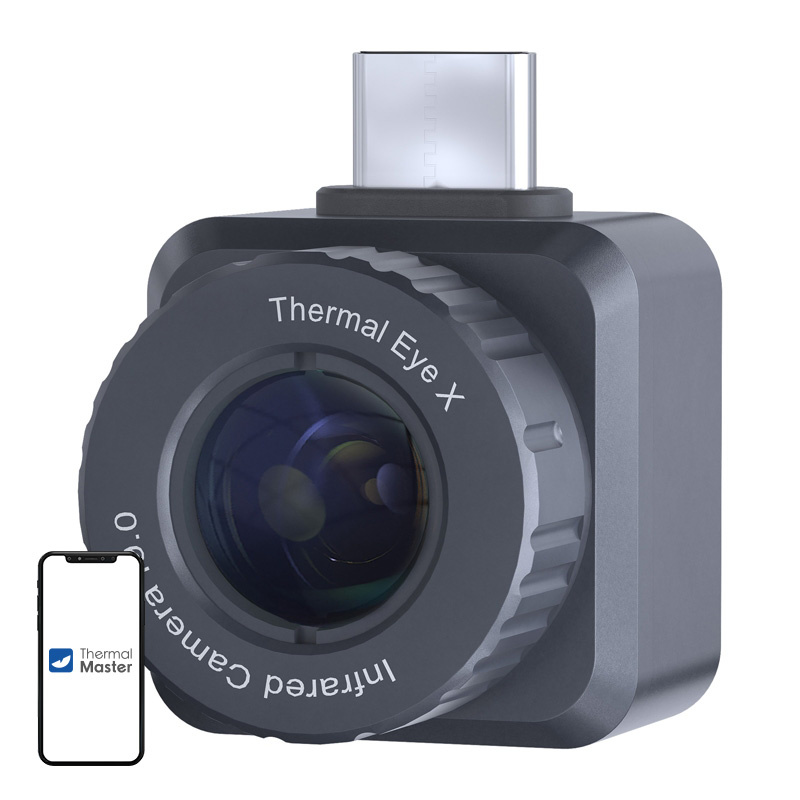

THERMAL MASTER X2 USB-C Mini Thermal Camera
Price: 249.70 €
| Products ID: | 177001 |
|---|---|
| Manufactured by: | THERMAL MASTER |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
Delivery options to:
Choose countryThe THERMAL MASTER X2 USB-C is a compact mini thermal camera designed to turn compatible Android smartphones with a USB-C port into a diagnostic and observation tool.
Key Features
- Infrared sensor with 256 × 192 resolution, upscaled to 512 × 384 with X³ Super algorithm
- Smooth 50 Hz refresh rate for real-time tracking and inspection
- 15x digital zoom for observing distant objects
- Heat source detection range up to 476 yards (approx. 435 meters)
- HD and Highlight display modes for clear temperature analysis
- Compact dimensions of 23 mm x 23 mm x 23.8 mm and 18.5 g weight
| Manufacturer | THERMAL MASTER |
|---|---|
| Model | X2 |
| Detection range | 984 yards (person 1.8 m tall) |
| Magnification | 15x zoom |
| Infrared resolution | 256 to 512 pixels |
| X³ Super algorithm | Supported |
| Frame rate | 50 Hz |
| 20-in-1 | ArmorX tactical kit, supports 20 modifications |
| 2-in-1 | Thermal monocular + thermography |
| Focal length | 39 mm lens = 13 mm lens ©17 µm |
| Focus mode | Manual focus |
| Dual-image mode | HD mode and backlight mode, one-touch switching |
| Compound bow mode | Exclusive patent |
| Hotspot tracking | Tactical heat tracking |
| Reticle | 8 shapes + 5 colors, quick switching |
| Ninja mode | 2 meters fully concealed |
| Razor X | Supported |
| Insight+ | Supported |
| Tactical Assistant | E-compass/speed/position/weather/time |
| Professional temperature measurement | Supports correction for emissivity/target distance/ambient temperature |
| NETD | 40 mK (@25°C, F#1.0) |
| Precise temperature measurement 1Q+ | Supported |
| Dedicated color palette for outdoor use | Night vision Green/Bird/Hot White/Hot Black/Red Head/Iron Red |
| Battery life | 300–480 minutes (e.g., Samsung Galaxy S23+ with a 4700 mAh battery – 367 minutes) |
| Application scenarios | Outdoors/camping/field/rescue/tactics/hidden camera detection/leak detection in HVAC systems, etc. |
| Field of view | 19.63° x 14.71° |
| Weight (with lens) | 18.5 g |
| Temperature measurement range | (0°C–100°C) |
| Operating temperature | (-20°C–60°C) |
| Dimensions (with lens) | 23 mm x 23 mm x 23.8 mm |
| Video memory | Photo and video recording function |
| App name | Thermal Master |
| Operating system | Android 9.0 and later |
Which operating system is required for the THERMAL MASTER X2?
The camera requires Android 9.0 or later and operates using the dedicated Thermal Master application.
What is the temperature measurement range of the camera?
The temperature measurement range is from 0°C to 100°C.
