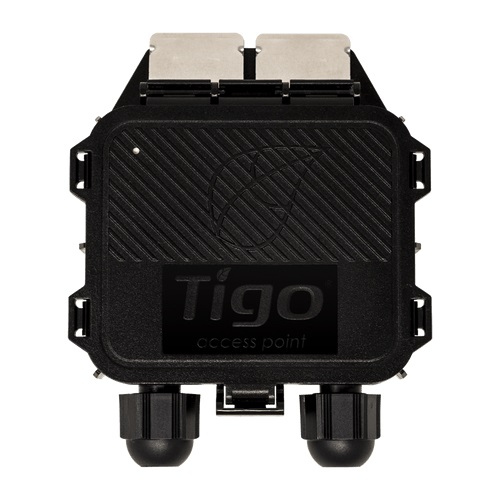

Tigo Access Point (TAP) for Solar PV Modules
Price: 61.20 €
| Products ID: | 173181 |
|---|---|
| Manufactured by: | Tigo |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 9990000821181 |
Delivery options to:

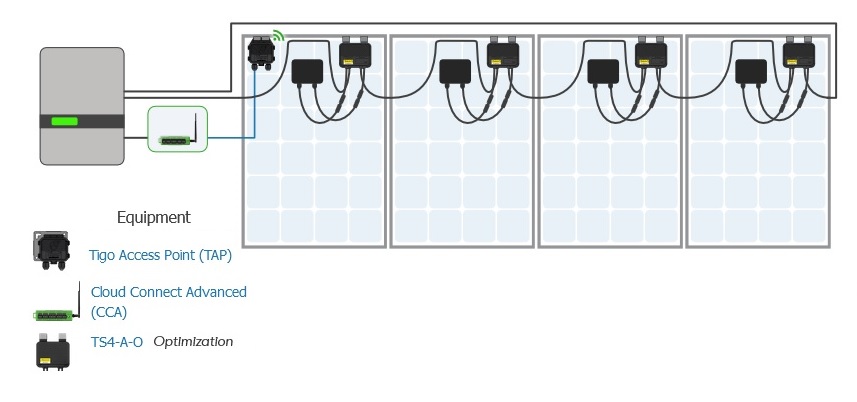

Choose countryThe Tigo Access Point (TAP) provides wireless communication with Tigo TS4 retrofit and smart module devices, enabling module-level data management and safety when paired with Cloud Connect Advanced (CCA).
Key Features
- Direct wireless communication with TS4 units (TS4-A-O, TS4-A-S, TS4-A-M)
- Supports data collection from up to 300 TS4 units
- Tool-free mounting directly onto the solar module frame
- Module-level monitoring when combined with Cloud Connect Advanced (CCA)
- Quick setup via the Tigo SMART app on Android and iOS devices
| Input voltage range | 5V-25V DC |
|---|---|
| Power consumption | 0.5W, max. 1W |

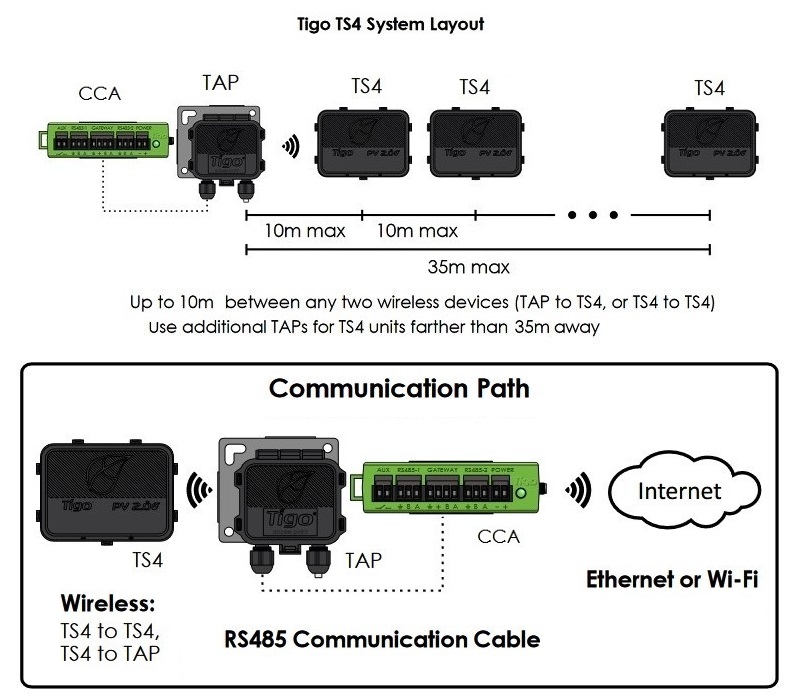

| Connectivity | Wireless with TS4 devices, RS485 cable with CCA |
| Recommended cable type | RS485, 18-22AWG |
| Max distance to TS4 unit | 10m to closest, 35m to farthest |
| Max TS4 units supported | 300 |
| Application | Tigo SMART, Android, iOS |
| Operating temperature | -30°C ~ +70°C |
| Protection rating | IP68, NEMA 4R |
| Weight | 227 g |

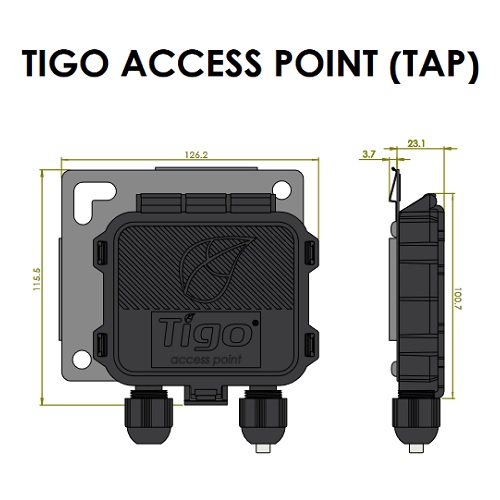

| Dimensions | 126.2 x 130 x 26.8 mm |
| Warranty | 24 months |
What additional components are required to use the TAP?
The TAP requires Cloud Connect Advanced (CCA) and Tigo TS4 devices (TS4-A-O, TS4-A-S, or TS4-A-M) for operation.
How many TS4 units can a single TAP manage?
A single Tigo Access Point can collect data from up to 300 TS4 units.
