Solar Module Optimizer Tigo TS4-A-O, 700W, 15A
Price: 51.20 €
| Products ID: | 172706 |
|---|---|
| Manufactured by: | Tigo |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 9990000823147 |
Delivery options to:

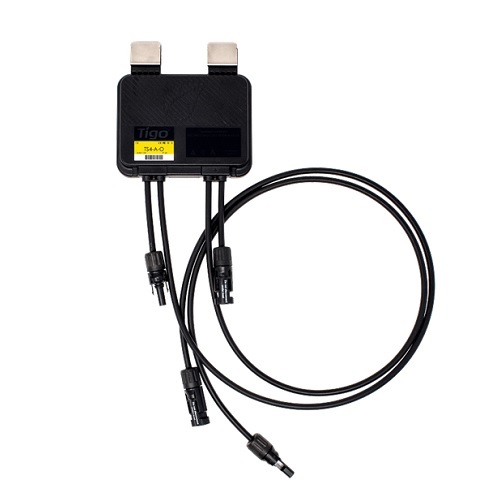

Choose countryThe Tigo TS4-A-O is an add-on solution that brings smart module functionality to standard PV modules, including optimization, rapid shutdown, and module-level monitoring.
Features
- Suitable for solar modules up to 700W
- Predictive IV Technology (PIV) with selective deployment capability
- Meets NEC rapid shutdown requirements
- Wireless communication with TAP and CCA
- MC4 connectors and IP68 protection rating
| Max power | 700W |
|---|---|
| Maximum Input Voltage (Voc) | 80V |
| Input voltage range | 16-80V |
| Max Input Current (Imax) | 15A |
| Max system voltage | 1000V |
| Max short circuit current (Isc) | 20A |
| Communication | Wireless |
| Connectors | MC4 |
| Conductor AWG range | 10-12AWG |
| Wire length | Input 0.12m, output 1.2m |
| Working temperature | -40°C ~ +70°C |
| Safety class | IP68, NEMA 3R |
| Dimensions | 138.4x139.7x22.9mm |
| Weight | 520g |
What required components are needed for Tigo TS4-A-O?

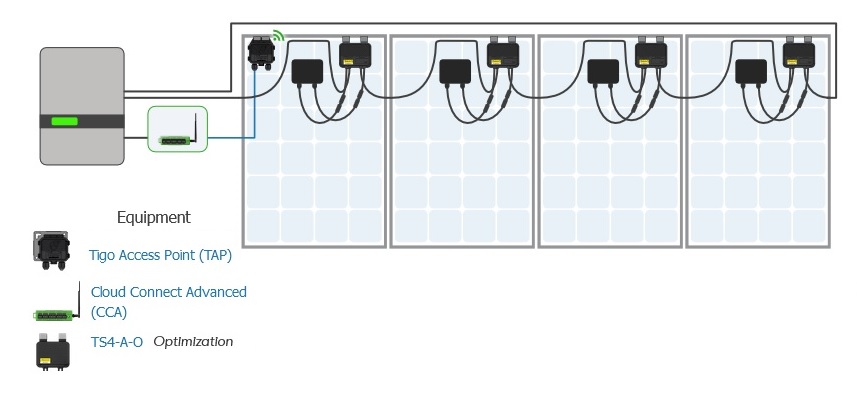

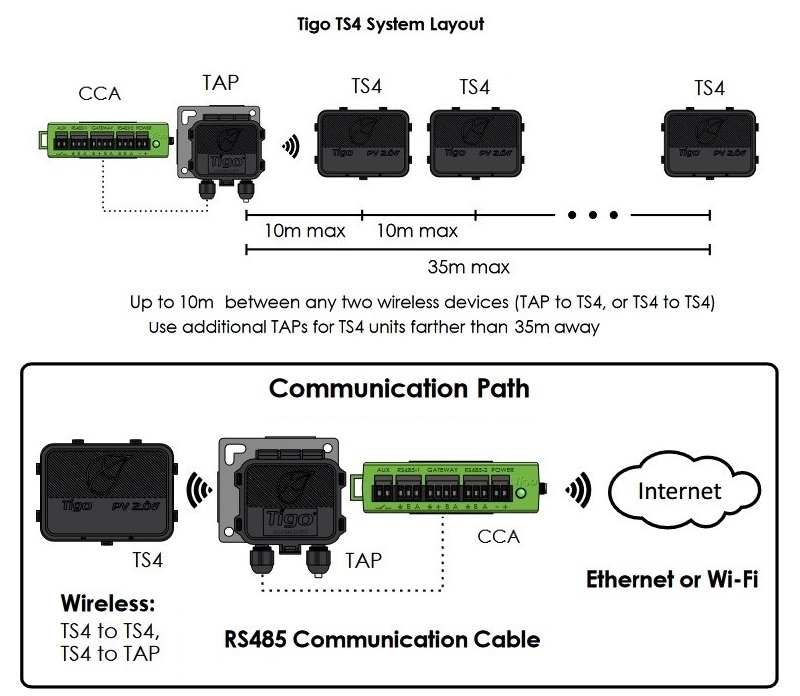

Cloud Connect Advanced (CCA) and Tigo Access Point (TAP) are required for full wireless operation and monitoring.
What is the maximum module power supported?
The optimizer supports PV modules with a maximum power output of up to 700W.
