Uni-T

USB Tester Uni-T UT658LOAD with Electronic Load 60W, White

18.50 € incl. VAT
In supplier warehouse · 45 pcs. Delivery Time: 4–10 business days

In your cart: 0

Delivery options to:

Choose country

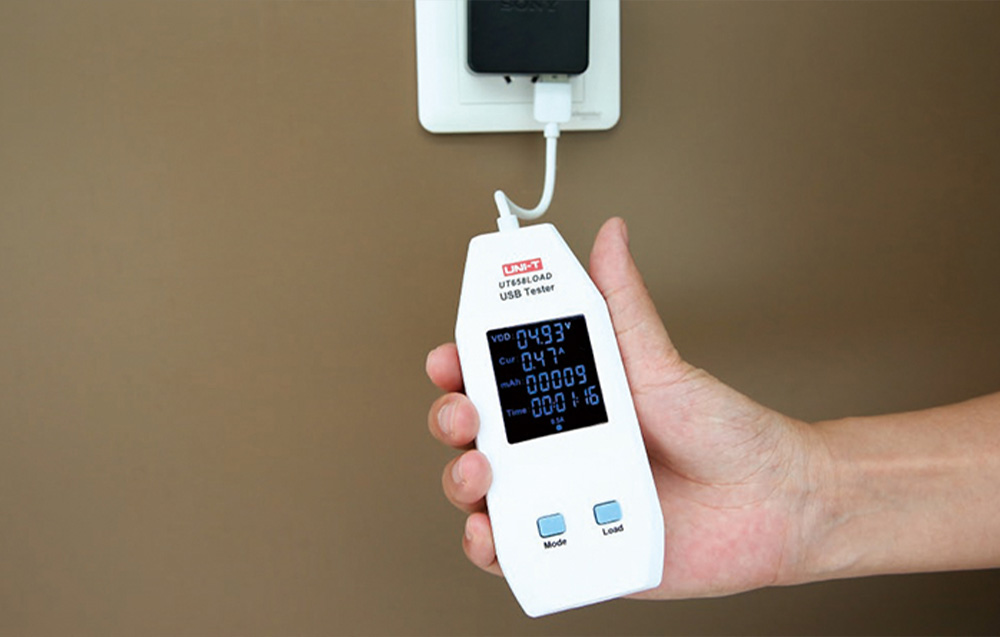

The Uni-T UT658LOAD is a USB tester with USB Type-A ports designed for diagnostics and performance testing of chargers, power banks, and USB cables.

Key Features

  • Measures voltage from 4 to 24 V DC and current from 0.05 to 3 A DC.
  • Built-in electronic load of 0.5 A, 1 A, 2 A, and 3 A with up to 60 W maximum power.
  • Capacity measurement up to 99,999 mAh, energy up to 1000 Wh, and circuit resistance of 1–480 Ω.
  • Supports USB 2.0 / 3.0 standards and QC 3.0 fast charging protocol.
  • Built-in memory for 10 data sets and logging duration up to 99 h 59 min 59 s.

ManufacturerUni-T
ModelUT658LOAD
TypeUSB Tester
Input and Output PortsUSB Type-A
Data and Charging Protocol2.0 / 3.0
Voltage Range4~24V DC
Voltage Resolution0.01V
Current range0.05~3A DC
Current resolution0.01A
Capacity0~99999mAh
Capacity resolution1mAh
Energy0~1000Wh
Circuit equivalent resistance measurement1~480Ω
USB D+ data cable voltage0~3.3V
USB D- data cable voltage0~3.3V
Data storage10 sets
Electrical load0.5A / 1A / 2A / 3A
Maximum power60W
Maximum recording time99h 59min 59sec
Time resolution1s
Fast charging protocolQC 3.0
ColorWhite
Weight114.4g
Dimensions122mm x 53mm x 27mm
CertificationsCE, UKCA
EAN6935750565100
What is included in the package?

The package contains the USB tester and a user manual.

What are the electronic load ratings?

The built-in electronic load supports 0.5 A, 1 A, 2 A, and 3 A settings with a maximum power of 60 W.

How many data sets can be stored?

The device features memory for storing up to 10 data sets.
