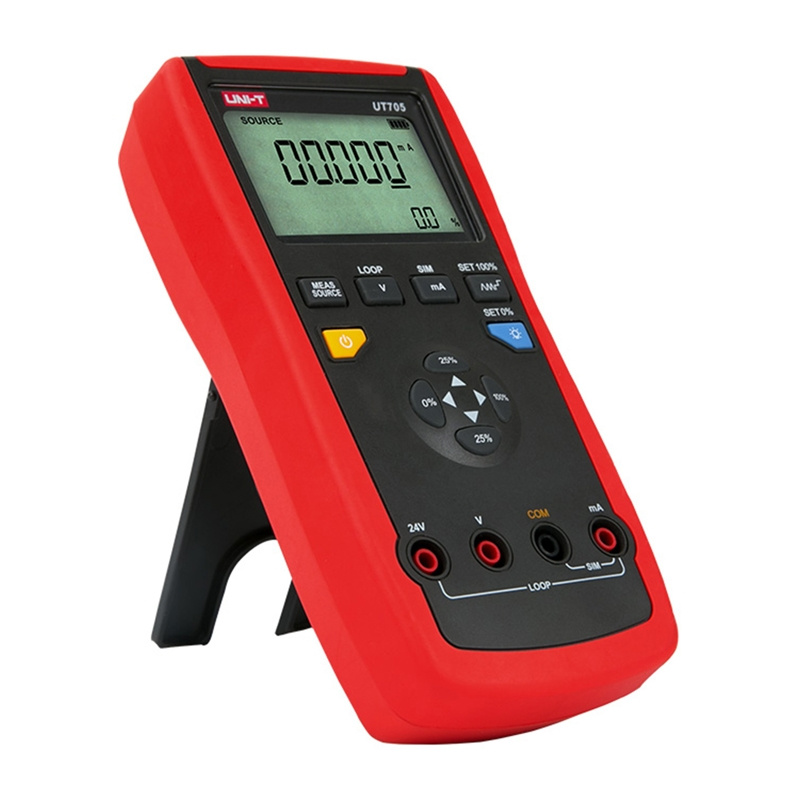

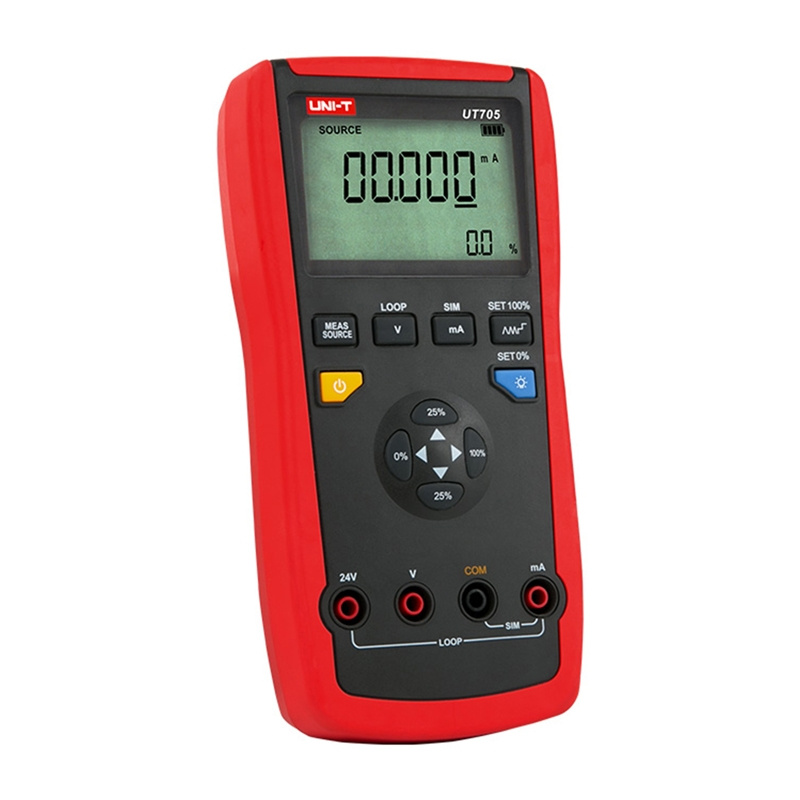

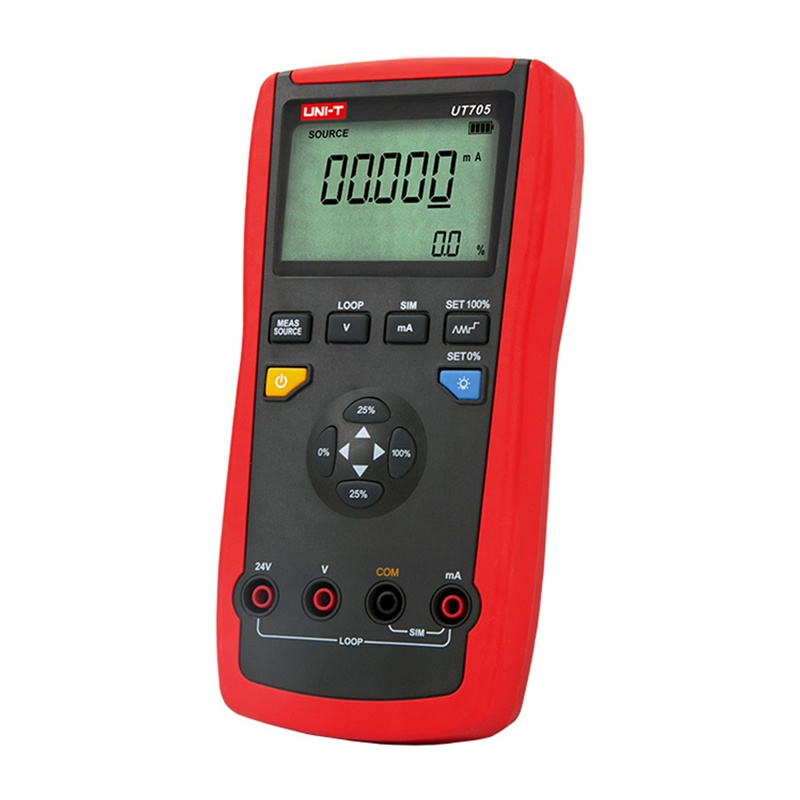

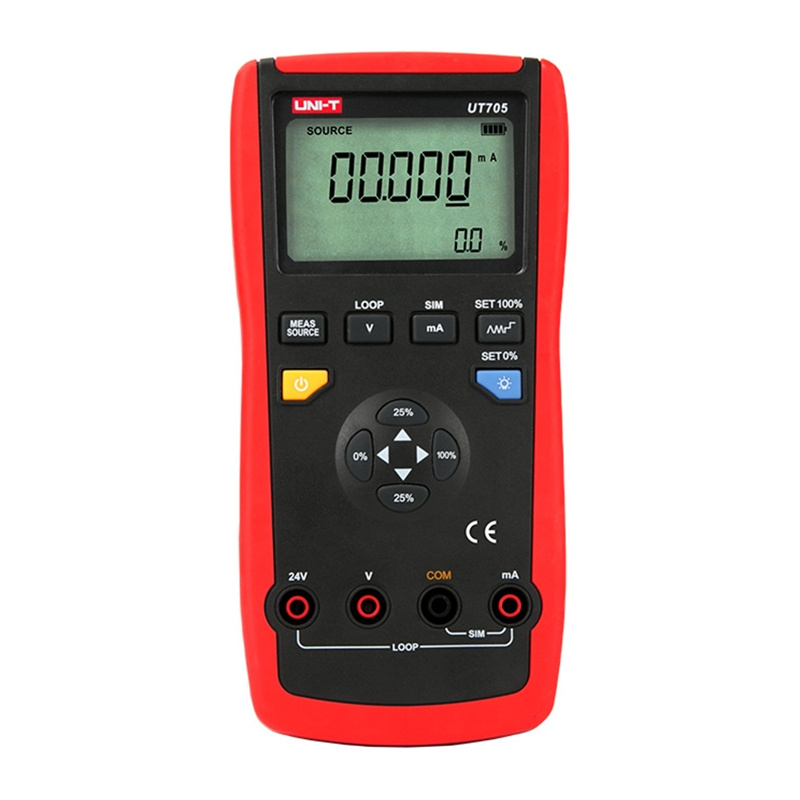

Uni-T UT705 Process Calibrator

Uni-T UT705 Process Calibrator — image 3

Uni-T UT705 Process Calibrator — image 4

Uni-T UT705 Process Calibrator — image 5

Price: 299.20 €

Products ID:	176999
Manufactured by:	Uni-T
Availablity:	Ready to Order
Delivery Time	5-10 business days
EAN:	6935750570180

Delivery options to:

Choose country

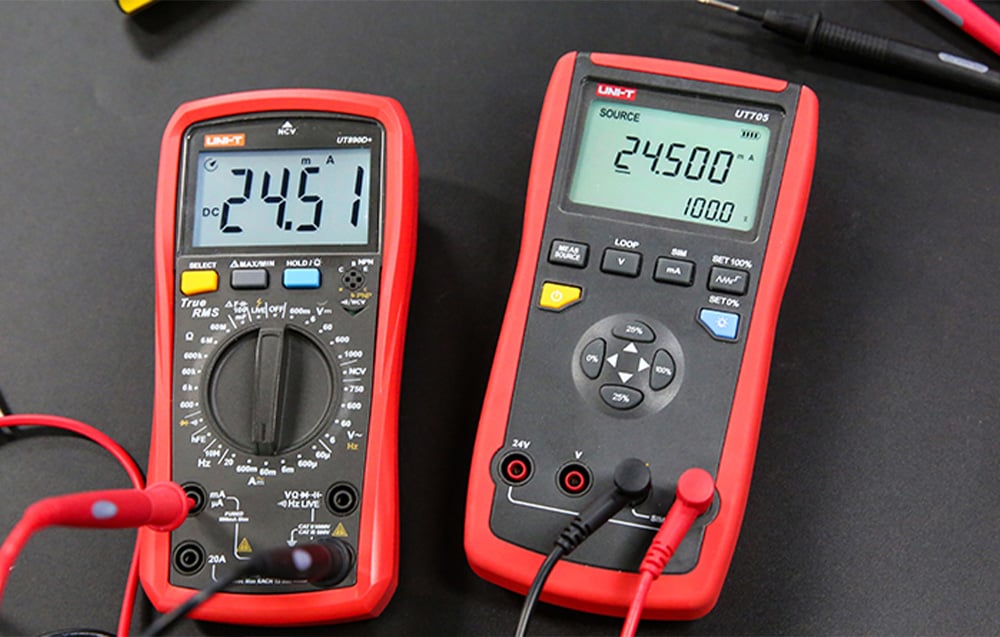

The Uni-T UT705 is a current loop calibrator designed for calibration, diagnostics, and maintenance tasks in industrial automation systems. It measures DC voltage up to 30.000 V and DC current/loop current up to 24.000 mA, while also providing DC current sourcing, simulation, and a 24 V loop power supply.

Key Features

High measurement accuracy of ±(0.02% + 2) for reliable calibration results
Manual and automatic signal ramping with 25% and 100% step modes
Save and recall settings memory to streamline repetitive tasks
Backlit LCD display and automatic power-off function
Durable design with 1-meter drop resistance for workshop and field use

Manufacturer	Uni-T
Model	UT705
Product type	Process loop calibrator
DC voltage measurement range	30.000 V ±(0.02% + 2)
DC current measurement range	24.000 mA ±(0.02% + 2)
Loop current measurement range	24.000 mA ±(0.02% + 2)
DC current source range	24.000 mA ±(0.02% + 2)
DC current simulation range	24.000 mA ±(0.02% + 2)
Loop power supply output	24 V
Loop power supply accuracy	10%
Ramping functions	Slow ramp, fast ramp, step ramp
Step functions	25% of range, 100% of range
Settings memory (Save/Recall)	Yes
LCD backlight	Yes
Auto power off	Yes
Drop resistance	1 m
Power supply	9V battery (6F22)
Display dimensions	63 × 40 mm
Color	Red and gray
Dimensions	96 × 193 × 47 mm
Weight	410 g
Certifications	CE, UKCA
