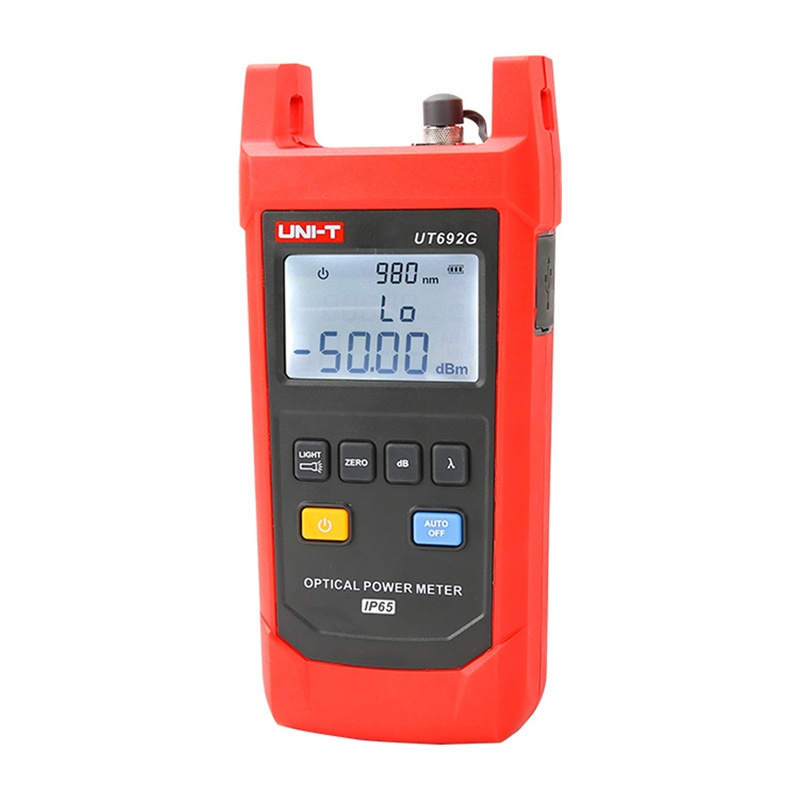

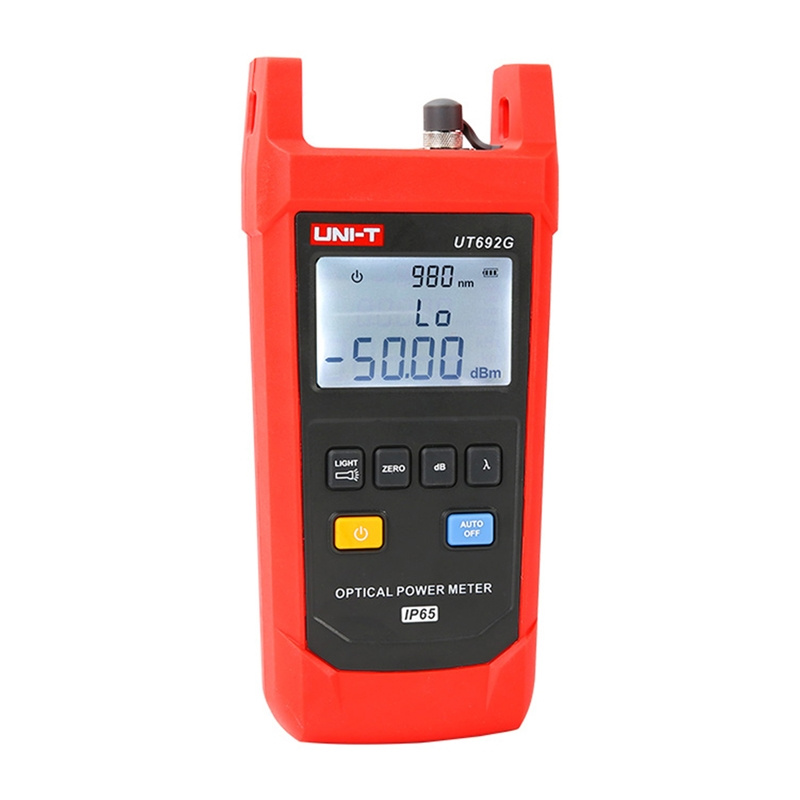

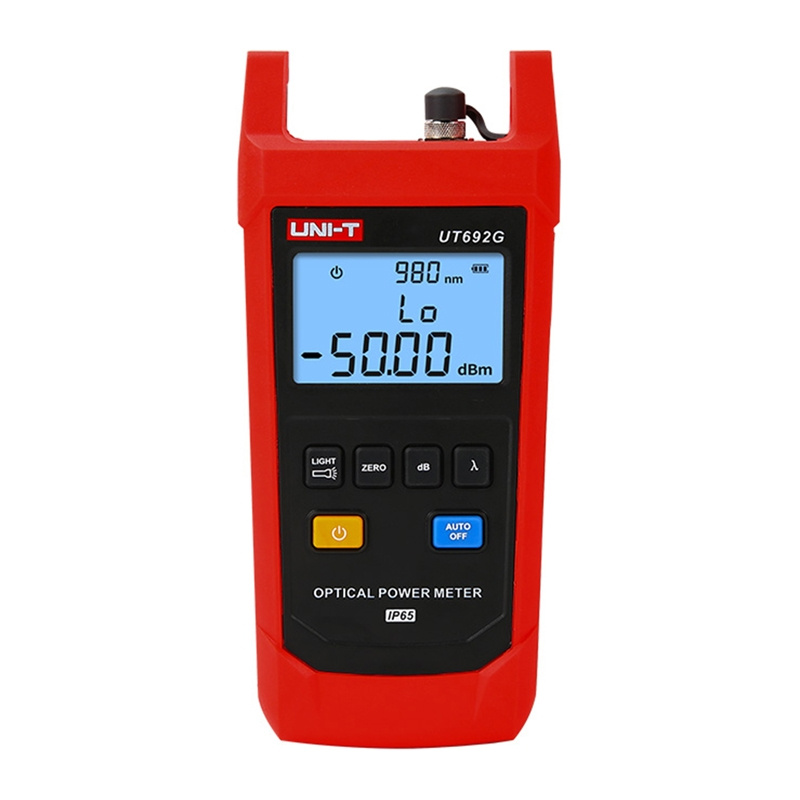

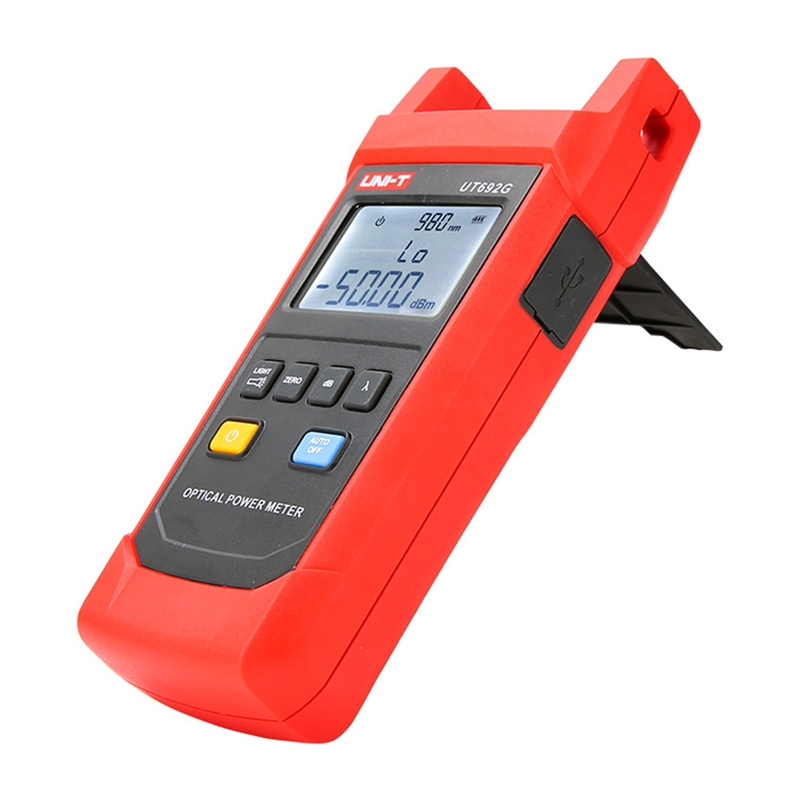

Uni-T UT692G Optical Power Meter Fiber Optic Tester
Price: 40.50 €
| Products ID: | 176858 |
|---|---|
| Manufactured by: | Uni-T |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 6935750569214 |
Delivery options to:
Choose countryThe Uni-T UT692G is a fiber optic tester and optical power meter designed to measure optical power and signal loss across fiber optic networks with an extended measurement range from -50 to +26 dBm.
Key Features
- InGaAs sensor supporting wavelengths from 800 to 1700 nm
- Backlit LCD display and data memory for 60 data sets
- User calibration function and stored reference values
- Built-in flashlight and auto-off power reduction feature
- IP65-rated housing with 2-meter drop resistance
| Manufacturer | Uni-T |
|---|---|
| Model | UT692G |
| Product type | Optical power meter |
| Power measurement range | -50...26 dBm |
| Wavelength range | 800–1700 nm |
| Calibrated wavelengths | 850 nm / 980 nm / 1300 nm / 1310 nm / 1490 nm / 1550 nm / 1625 nm / 1650 nm |
| Measurement accuracy | ±5% |
| Sensor type | InGaAs |
| Linear resolution | 0.1% |
| Logarithmic resolution | 0.01 dB |
| Data logging memory | 60 data sets |
| Display type | Backlit LCD |

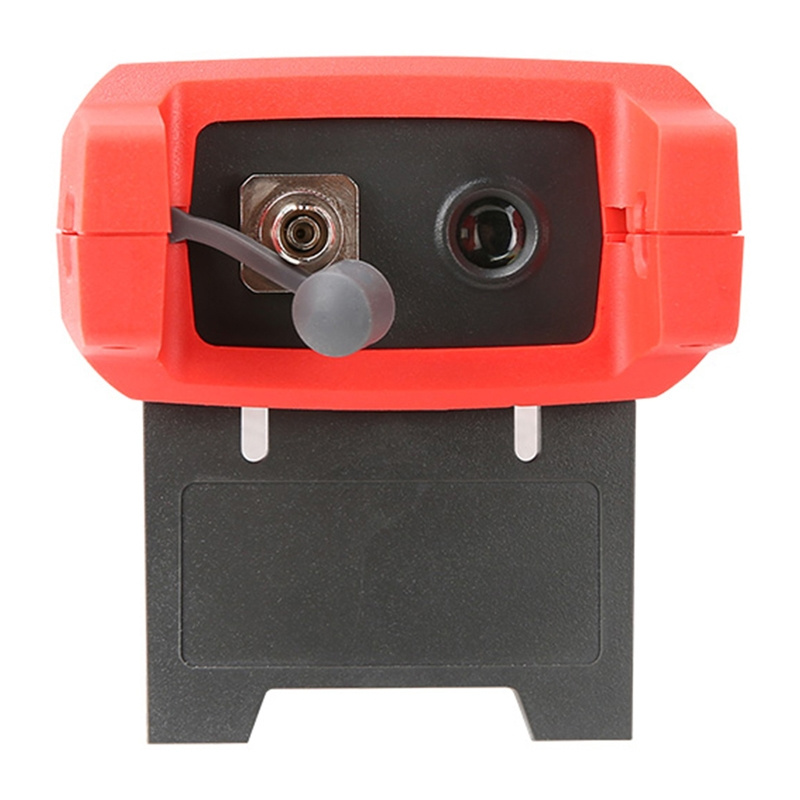

| Connector types | FC / SC / ST (2.5 mm adapter) |
| Power supply | 3 × 1.5 V AA batteries |
| Operating time | ≥60 hours |
| Protection and durability | IP65, 2 m drop resistance |
| Dimensions | 189 × 87 × 45 mm |
| Weight | 286 g |
| Certifications | CE, UKCA |
What is included in the package?
The package contains the fiber optic tester, 3 AA batteries, a carrying case, and a user manual.
Which connector types are supported?
The tester supports FC, SC, and ST connectors using the included 2.5 mm adapter.
