UNI-T UT682D Wire Pair Detector Cable Tester
Price: 23.20 €
| Products ID: | 175125 |
|---|---|
| Manufactured by: | Uni-T |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 6935750568262 |
Delivery options to:

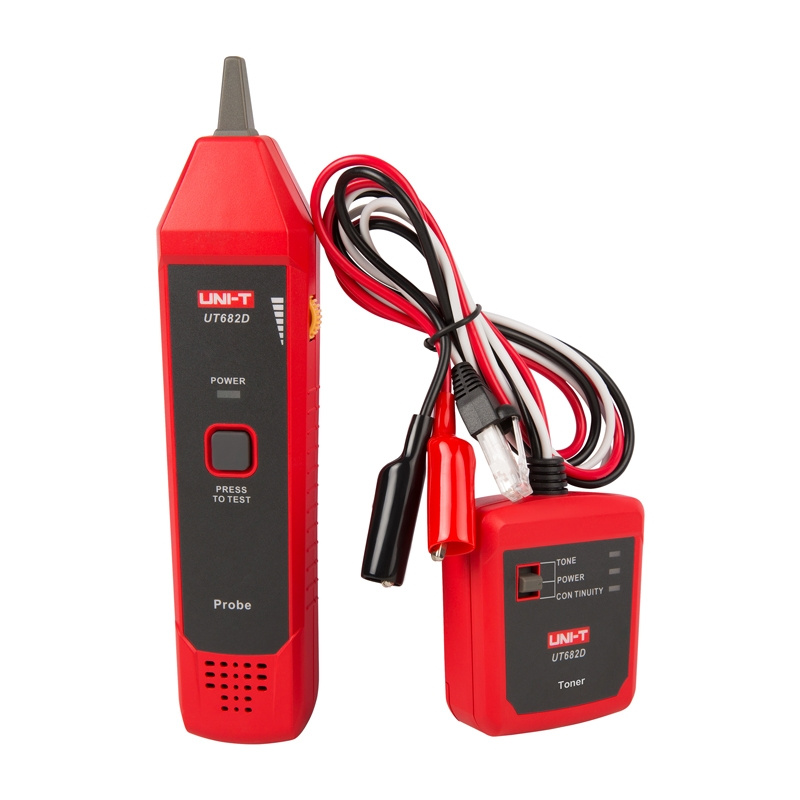

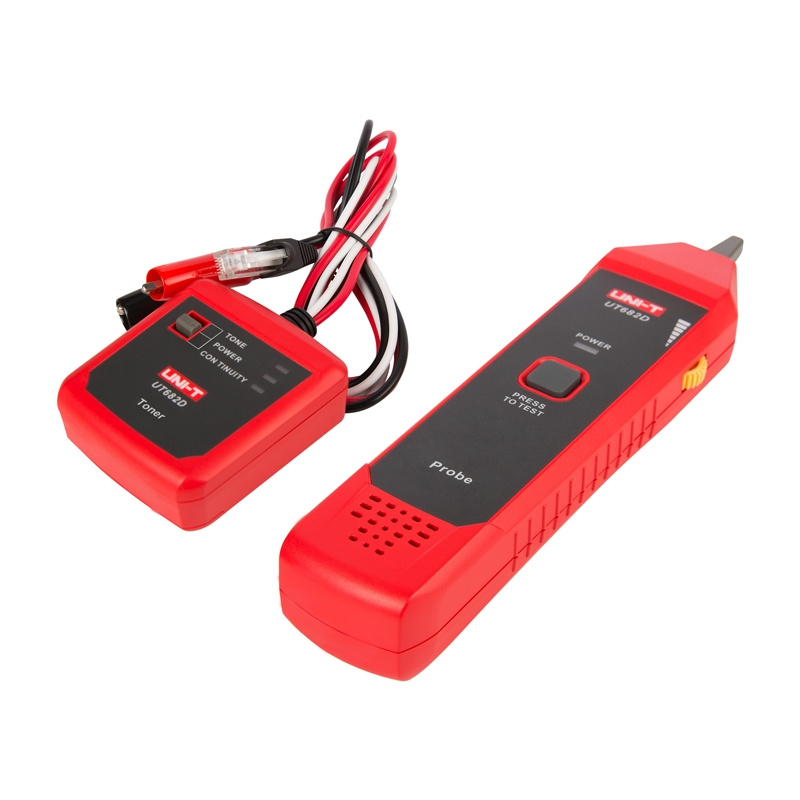

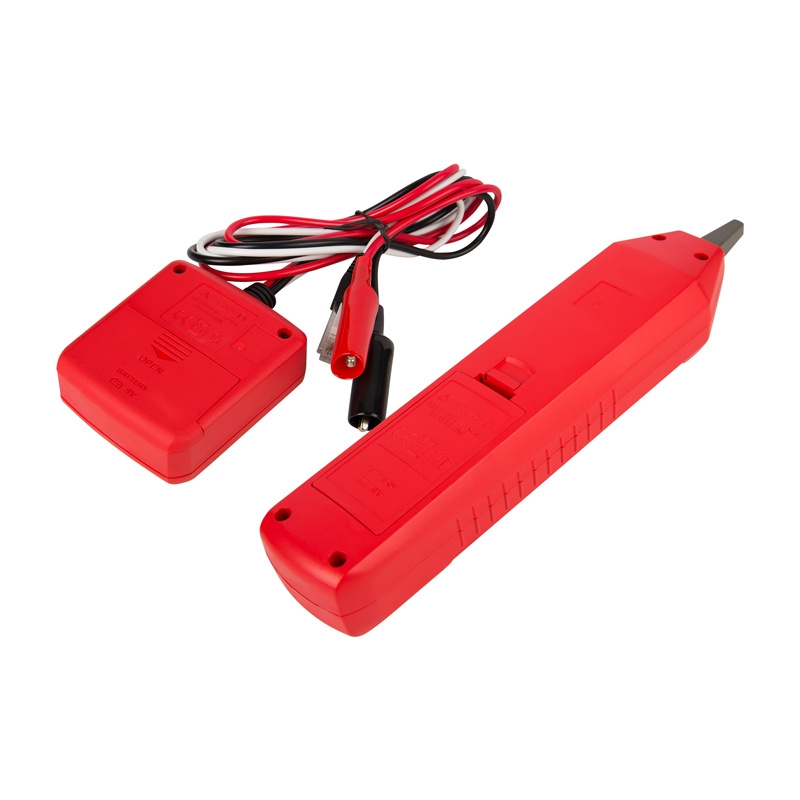

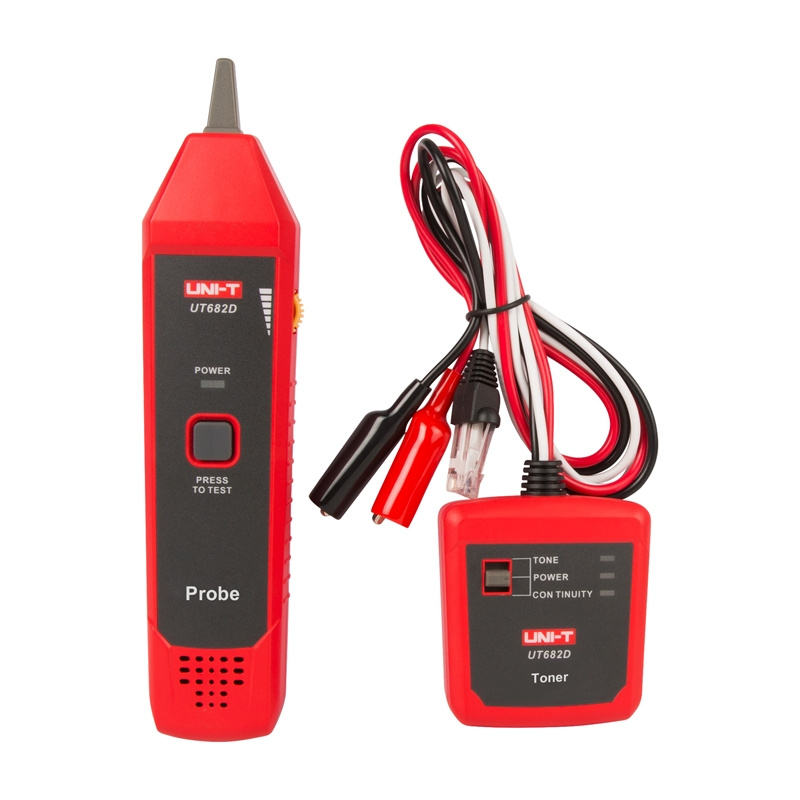

Choose countryThe UNI-T UT682D is a wire pair detector designed to locate breaks, short circuits, and connection faults in telephone lines, network cables, and electrical wiring. It includes a transmitter and a receiver for accurate wire tracing and diagnostics.
Key Features
- Traces telephone wires at distances up to 3000 m
- Compatible with telephone lines, twisted pair, and electrical wires
- Short circuit and circuit break testing
- DC voltage level testing from ±(5V~52V)
- Headphone socket and volume control for noisy environments
- Selectable fast and slow measurement speed modes
- Powered by 9V batteries for transmitter and receiver
| Manufacturer | Uni-T |
|---|---|
| Model | UT682D |
| Supported cables | Telephone lines, twisted pair, electrical wires |
| Telephone wire tracking distance | Up to 3000 m |
| Short circuit / interruption test | Yes |
| Polarity indication | Yes |
| DC voltage level test | ±(5V~52V) |
| Wire sequence measurement | Yes |
| Operating modes | Fast and slow selectable |
| Signal strength indicator | Yes |
| Transmitter power supply | 9V battery |
| Receiver power supply | 9V battery |
| Headphone socket | Yes |
| Volume control | Yes |
| Certifications | CE, UKCA |
What cable types are supported by the UNI-T UT682D?
The device supports telephone lines, twisted pair network cables, and electrical wires.
What is the maximum wire tracing distance?
It can track telephone wires at distances of up to 3000 meters.
What power source does the device require?
Both the transmitter and the receiver are powered by standard 9V batteries.
