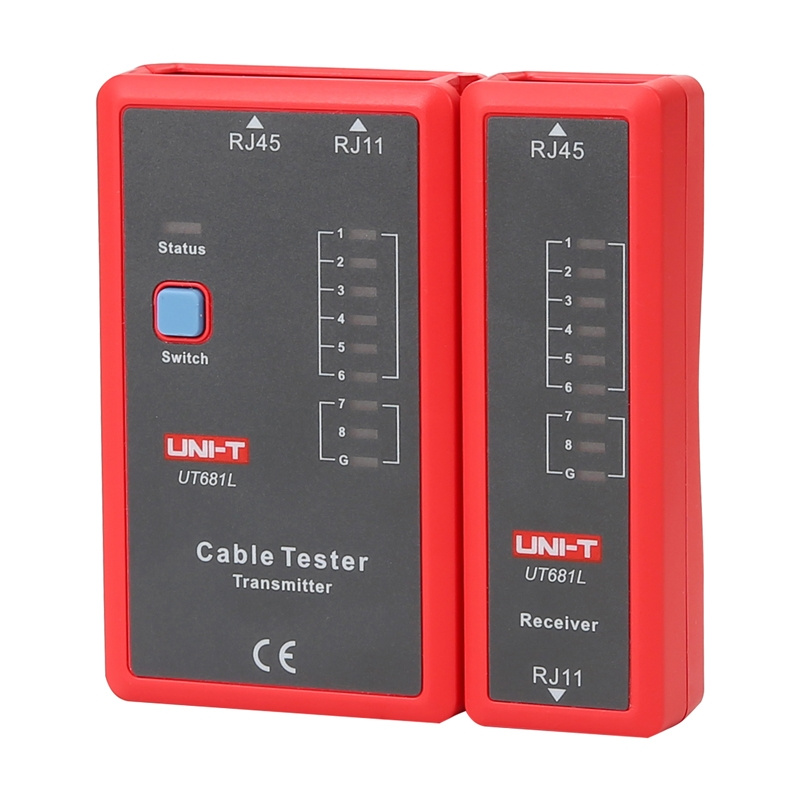

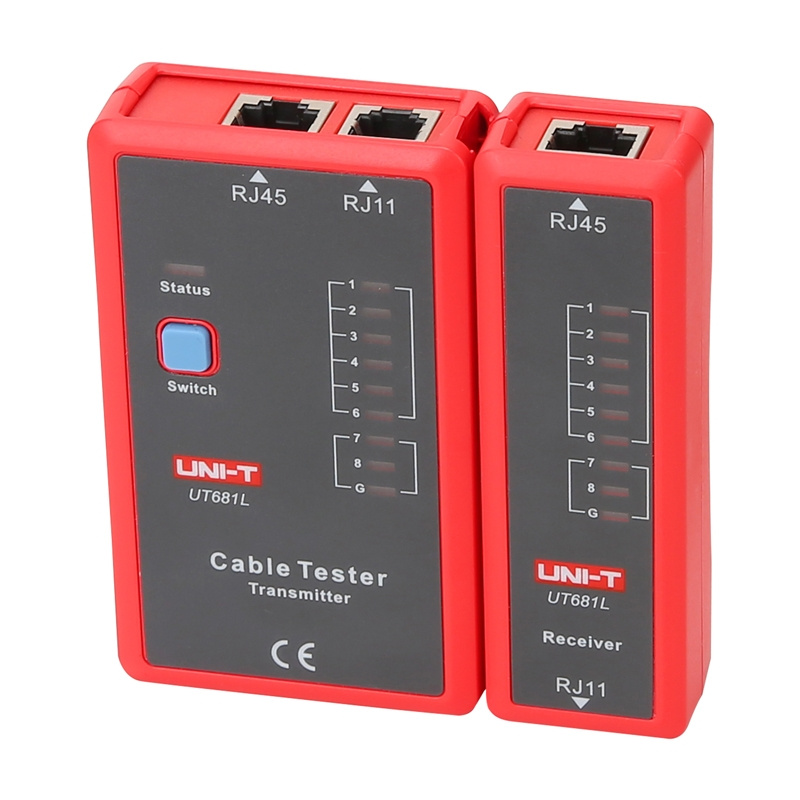

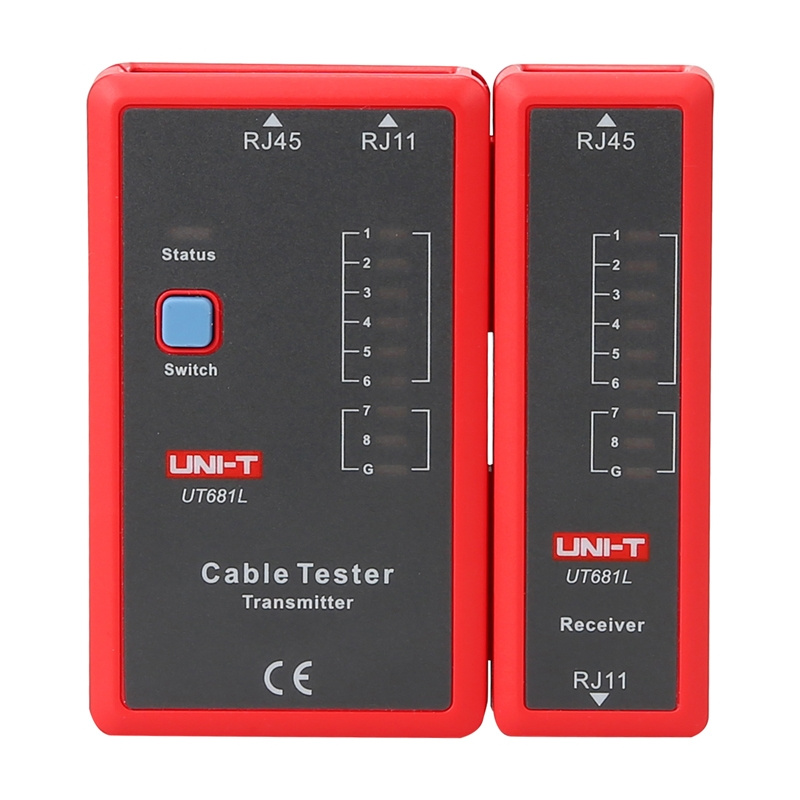

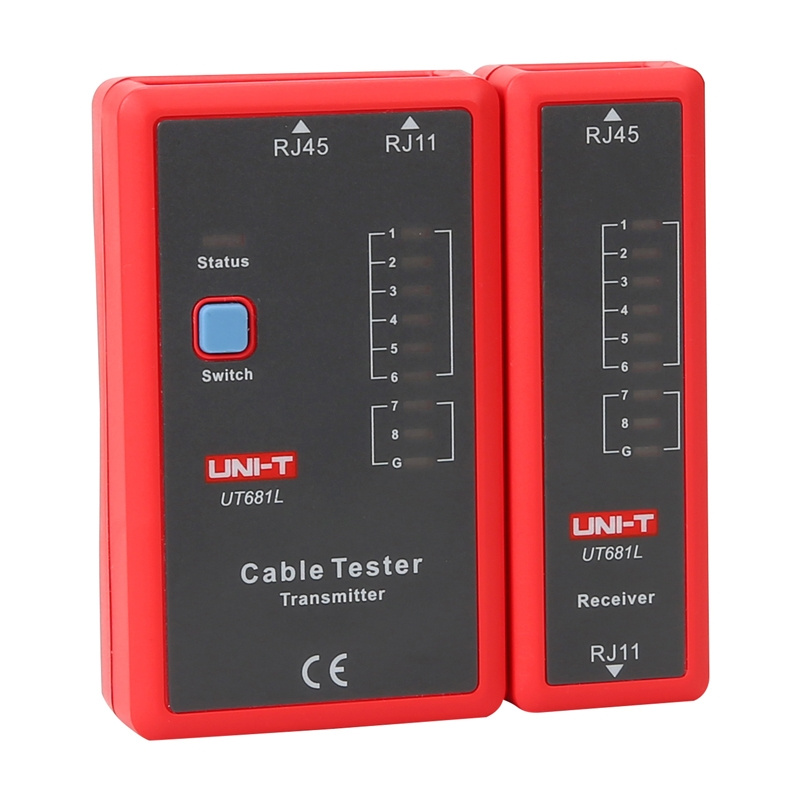

UNI-T UT681L Network Cable Tester RJ45 RJ11
Price: 14.20 €
| Products ID: | 175591 |
|---|---|
| Manufactured by: | Uni-T |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 6935750568132 |
Delivery options to:
Choose countryThe UNI-T UT681L is a practical tester designed for diagnosing network and telephone cables. It allows quick verification of cable continuity, identifying short circuits, open circuits, and crossed pairs on RJ45 and RJ11 connections.
Key Features
- Supports RJ45 and RJ11 connector testing
- Tests continuity and Ethernet cable shielding
- Two operational speeds: fast and slow mode
- LED status indicators for each individual wire
- Automatic power-off after 10 minutes of inactivity
- Includes transmitter, receiver, and 9V battery
| Manufacturer | UNI-T |
|---|---|
| Model | UT681L |
| Supported connectors | RJ45, RJ11 |
| Test functions | Detection of short circuits, breaks, crossings and incorrect connections |
| Test modes | fast, slow |
| Result display | LEDs (LED1~LED8, LED_G) |
| Ethernet cable shielding test | Yes |
| Power supply | 9V battery |
| Automatic shutdown | After 10 minutes of inactivity |
| Low battery indicator | Below 7.2V |
| One button operation | Yes |
| Operating temperature | 0~40°C |
| Storage temperature | -10~50°C |
| Operating humidity | 20~80% RH |
| Storage humidity | 10~90% RH |
| Maximum operating altitude | ≤2000 m |
| Safety standards | CE EN61326-1:2013, EN61326-2-2:2013 |
| Dimensions | Transmitter - 102 × 62 × 28 mm; receiver - 102 × 37 × 28 mm |
| Net weight | Transmitter - 87 g, receiver - 51 g |
| Color | red-gray |
What connectors are supported by the UNI-T UT681L?
The tester supports cables terminated with RJ45 and RJ11 connectors.
What is included in the package?
The package includes the UNI-T UT681L cable tester (transmitter and receiver), a 9V battery, and an English user manual.
