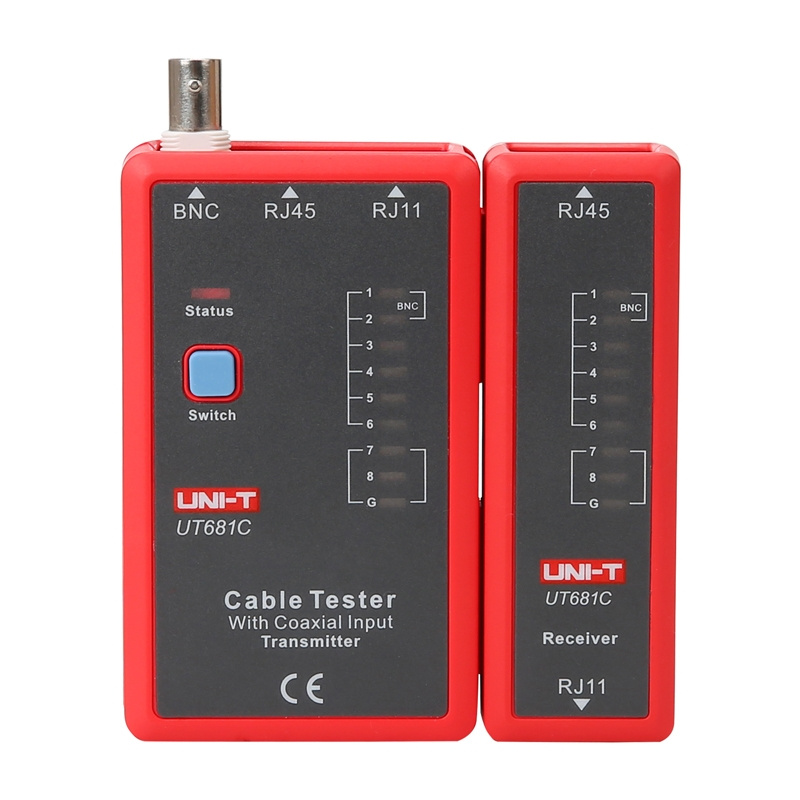

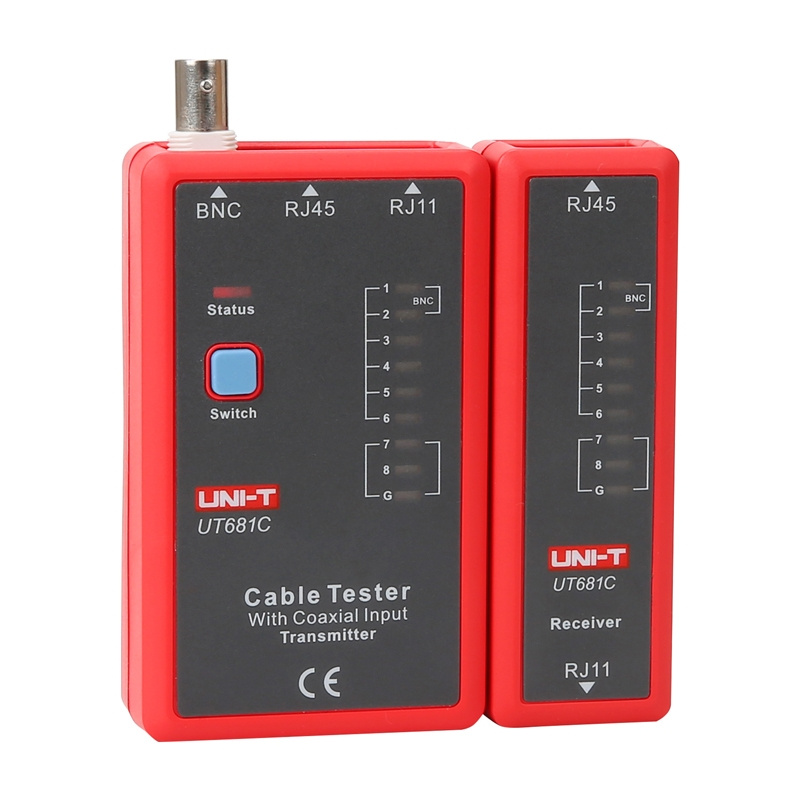

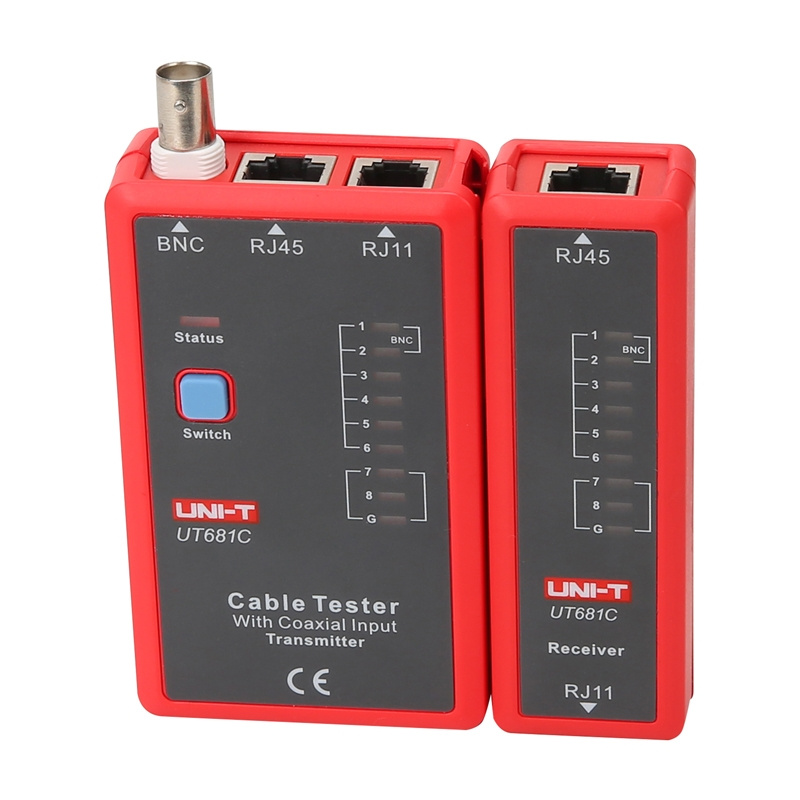

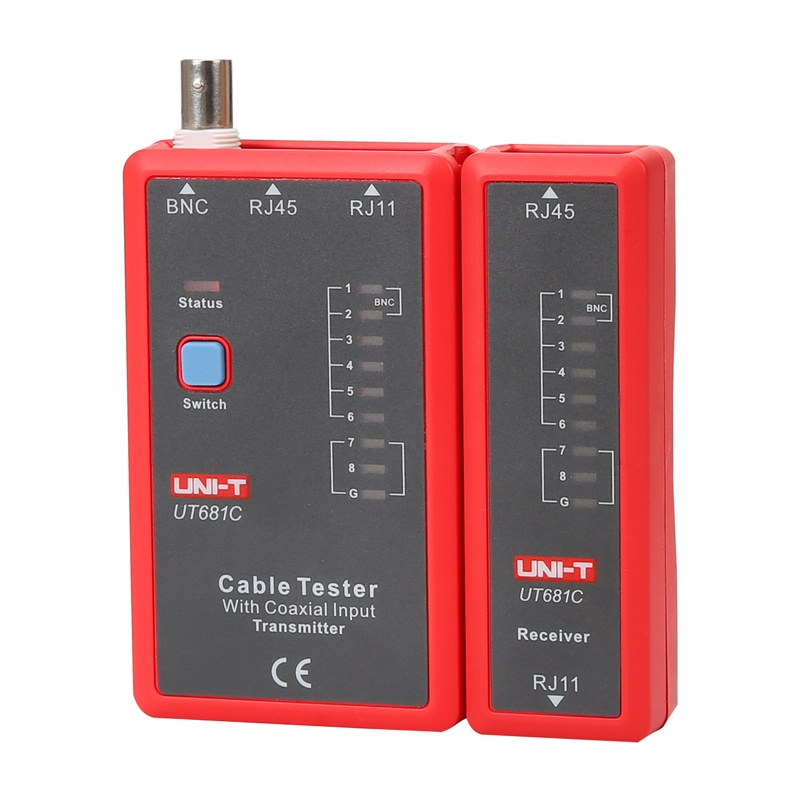

UNI-T UT681C Network Cable Tester (RJ45, RJ11, BNC)
Price: 18.30 €
| Products ID: | 175382 |
|---|---|
| Manufactured by: | Uni-T |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 6935750568118 |
Delivery options to:
Choose countryThe UNI-T UT681C is a cable tester designed to check the integrity of Ethernet, telephone, and BNC cables. It quickly diagnoses open circuits, short circuits, misconnections, and crossed pairs.
Key Features
- Compatible with RJ45, RJ11, and BNC connectors (via the included RJ45-BNC adapter).
- LED indicators (LED1~LED8, LED_G) for line-by-line and shield status testing.
- Fast and slow scanning test modes.
- Single-button operation and automatic power-off after 10 minutes of inactivity.
- Low battery indicator triggered when voltage drops below 7.2V.
| Brand | UNI-T |
|---|---|
| Model | UT681C |
| Supported connectors | RJ45, RJ11, BNC (with RJ45-BNC adapter) |
| Test functions | Detection of short circuits, breaks, crossings, and incorrect connections |
| Test modes | Fast, slow |
| Result display | LEDs (LED1~LED8, LED_G) |
| Ethernet cable shielding test | Yes |
| Power supply | 9V battery |
| Automatic shutdown | After 10 minutes of inactivity |
| Low battery indicator | Below 7.2V |
| Operating temperature | 0~40°C |
| Storage temperature | -10~50°C |
| Operating humidity | 20~80% RH |
| Storage humidity | 10~90% RH |
| Maximum operating altitude | ≤2000 m |
| Safety standards | CE EN61326-1:2013, EN61326-2-2:2013 |
| Transmitter dimensions | 102 × 62 × 28 mm |
| Receiver dimensions | 102 × 37 × 28 mm |
| Transmitter weight | 87 g |
| Receiver weight | 51 g |
| Color | Red-gray |
What cable types can be tested with the UNI-T UT681C?
It tests cables terminated with RJ45 and RJ11 connectors, as well as BNC cables using the supplied RJ45-BNC adapter.
What is included in the package?
The package includes the UNI-T UT681C tester (transmitter and receiver), a 9V battery, an RJ45-BNC adapter, and a user manual.
