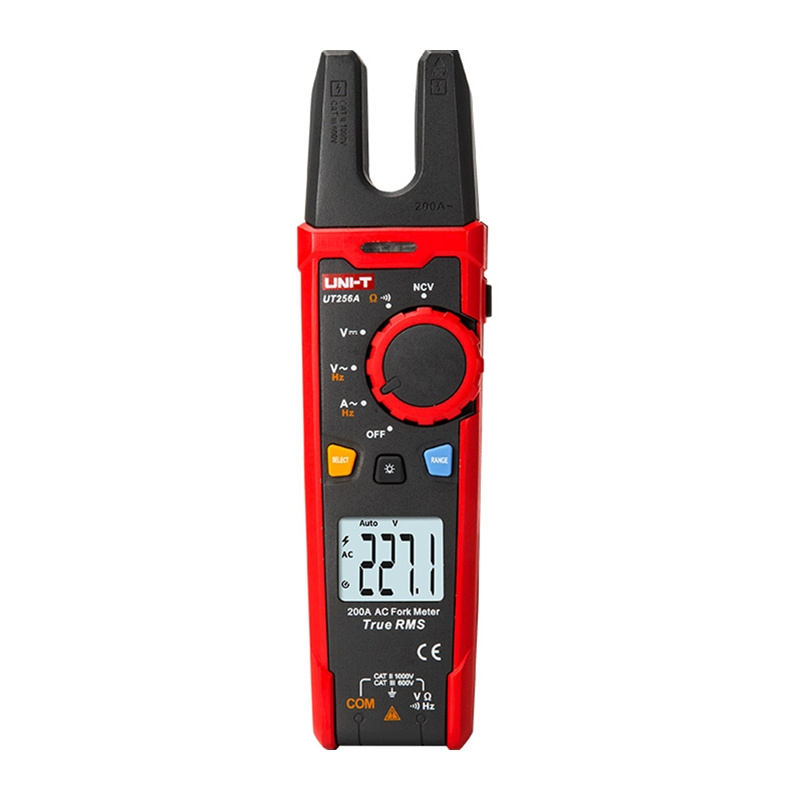

Uni-T UT256A True RMS Digital Clamp Meter
Price: 53.30 €
| Products ID: | 176889 |
|---|---|
| Manufactured by: | Uni-T |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 6935750525609 |
Delivery options to:
Choose countryThe Uni-T UT256A is a True RMS digital clamp meter with an open-jaw design that allows convenient AC current measurement without moving mechanical parts. It is suitable for a wide range of electrical diagnostics and service tasks.
Key Features
- AC current measurement up to 200 A and AC/DC voltage up to 1000 V
- Resistance measurement up to 60 MΩ and frequency from 10 Hz to 10 kHz
- True RMS technology with a 6000-count display and auto-ranging
- Non-contact voltage detection (NCV) and continuity buzzer
- Data Hold function, backlit LCD screen, and auto power-off
- Complies with CAT II 1000V and CAT III 600V safety standards
| Manufacturer | Uni-T |
|---|---|
| Model | UT256A |
| Product type | True RMS digital clamp meter |
| AC current range | 200 A ±(1.8% + 5) |
| AC voltage range | 1000 V ±(1.2% + 3) |
| DC voltage range | 1000 V ±(0.8% + 3) |
| Resistance measurement range | 60 MΩ ±(1% + 2) |
| Frequency range | 10 Hz – 10 kHz ±(0.1% + 5) |
| Maximum display reading | 6000 |
| Functions | True RMS, NCV, continuity test, Data Hold, auto-range, LCD backlight, auto-off, low battery indicator |
| Measurement category | CAT II 1000V / CAT III 600V |
| Power supply | 2 × 1.5 V AA batteries (LR6) |
| Display dimensions | 35 × 26 mm |
| Dimensions | 217 × 58.8 × 38.5 mm |
| Weight | 248 g |
| Certifications | CE, UKCA, cETLus |
What is included in the package with the Uni-T UT256A?
The package includes the clamp meter, 1 pair of test leads, 2 AA batteries (LR6), a carrying case, and a user manual.
What safety categories does this clamp meter meet?
The Uni-T UT256A complies with CAT II 1000V and CAT III 600V measurement safety categories.
