Uni-T UT213A 400A Digital Clamp Meter CAT III 600V
Price: 41.70 €
| Products ID: | 176851 |
|---|---|
| Manufactured by: | Uni-T |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 6935750521311 |
Delivery options to:

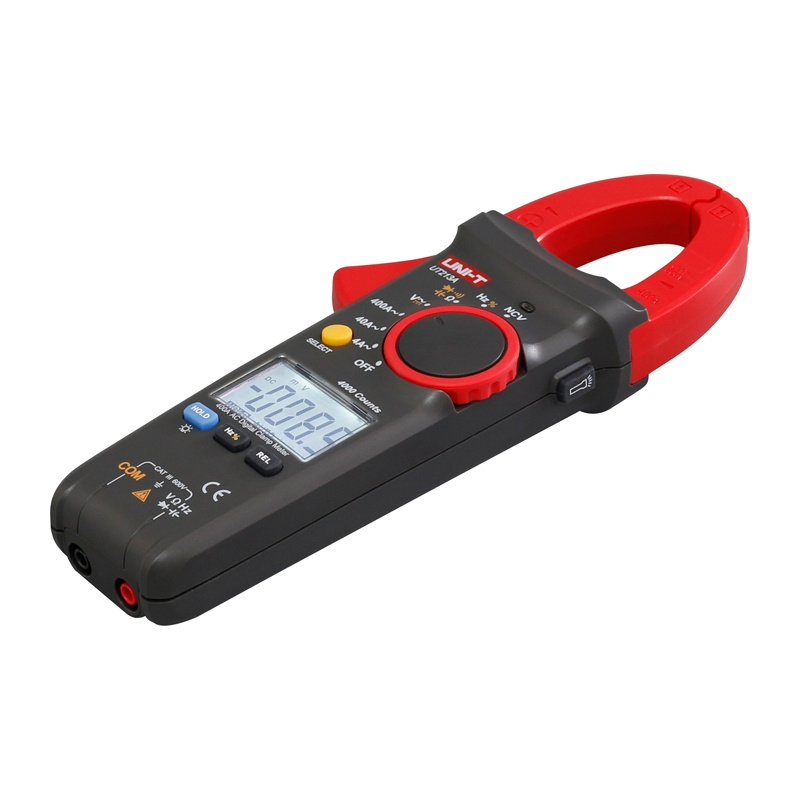

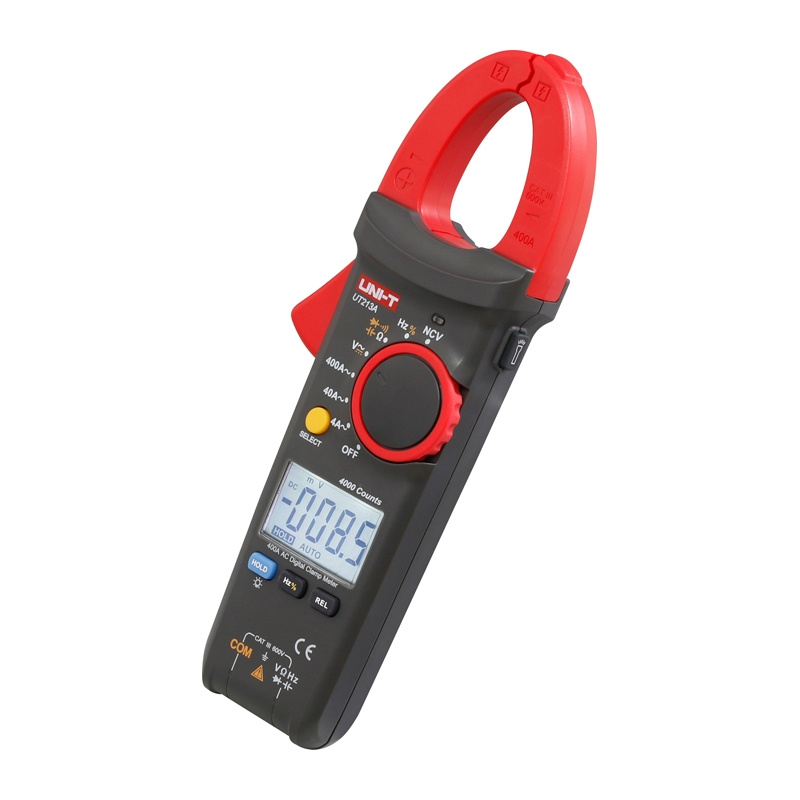

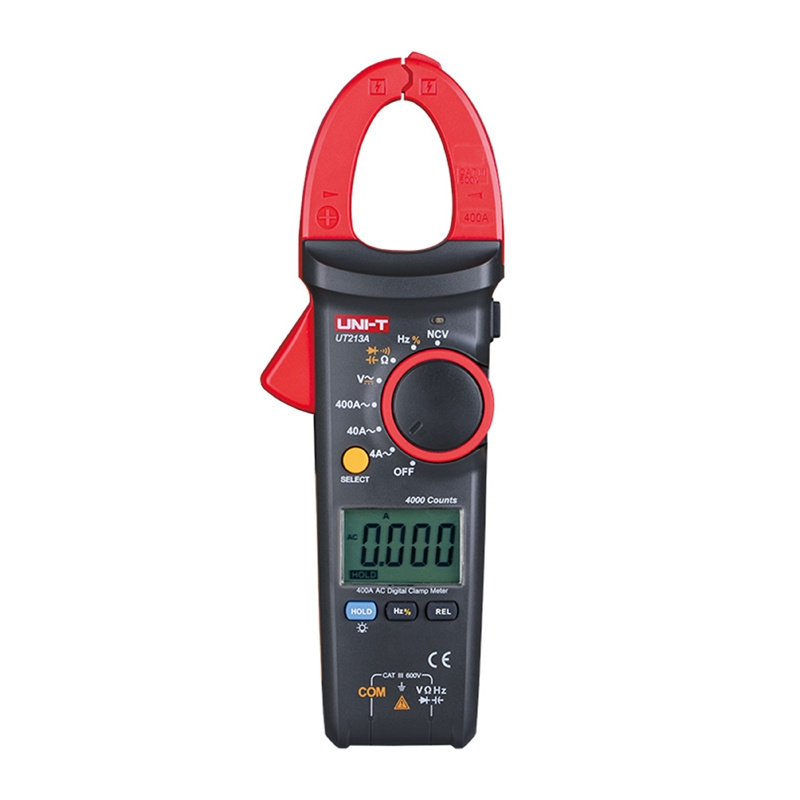

Choose countryThe Uni-T UT213A is a compact 400A digital clamp meter compliant with the CAT III 600V safety standard. It features automatic range switching, a clear backlit LCD, and a built-in flashlight for working in dimly lit environments.
Key Features
- AC current measurement up to 400 A and AC/DC voltage measurement up to 600 V
- Resistance measurement up to 40 MΩ, capacitance up to 100 µF, and frequency from 10 Hz to 1 MHz
- 30 mm jaw opening for easy conductor clamping
- Equipped with NCV detection, diode test, continuity buzzer, Data Hold, and Relative mode
- Clear 4000-count display with backlight and low battery indication
| Manufacturer | Uni-T |
|---|---|
| Model | UT213A |
| Product type | Digital clamp meter |
| AC current range | 400 A ±(1.8% + 9) |
| AC voltage range | 600 V ±(1.2% + 5) |
| DC voltage range | 600 V ±(0.8% + 1) |
| Resistance measurement range | 40 MΩ ±(1% + 2) |
| Capacitance measurement range | 100 µF ±(4% + 5) |
| Frequency range | 10 Hz – 1 MHz ±(0.1% + 4) |
| Maximum display reading | 4000 |
| Functions | NCV, diode test, continuity test, Data Hold, Relative mode, LCD backlight, flashlight, auto-range, auto-off, low battery indicator |
| Jaw opening | 30 mm |
| Measurement category | CAT III 600V |
| Power supply | 3 × 1.5 V (R03) |
| Display dimensions | 38 × 24 mm |
| Dimensions | 220 × 75 × 40 mm |
| Weight | 280 g |
| Certifications | CE, UKCA, cETLus |
What is included in the package?
The package includes the clamp meter, 1 pair of test leads, 3 AAA batteries, and a user manual.
What is the maximum jaw opening size?
The clamp meter has a jaw opening of 30 mm.
What type of batteries does the device require?
The device is powered by three 1.5 V R03 (AAA) batteries.
