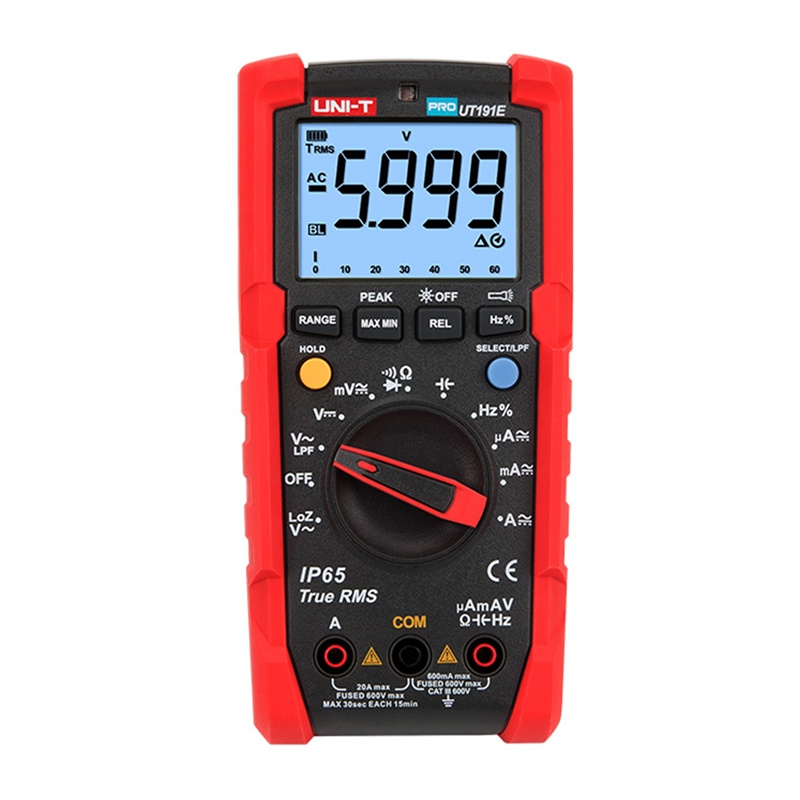

UNI-T UT191E Professional Digital Multimeter True RMS IP65
-4%
60.20 €57.90 €
Products ID: 175939
In supplier warehouse
Available to order: 10+ pcs.
Delivery Time 5–12 business days
Delivery options to:
Choose countryThe UNI-T UT191E is a professional digital multimeter equipped with True RMS, designed for precise measurements in industrial environments, servicing, and installation work.
Key Features
- Measures AC and DC voltage up to 600 V
- Measures AC and DC current up to 20 A
- Resistance measurement up to 60 MΩ and capacitance up to 60 mF
- Frequency range from 10 Hz to 1 MHz and duty cycle from 0.1% to 99.9%
- True RMS and LoZ low input impedance mode
- IP65-rated housing resistant to drops up to 2 meters
- 6,000 counts resolution with auto and manual range selection
| Manufacturer | UNI-T |
|---|---|
| Model | UT191E |
| DC voltage measurement range | 600 V ±(0.5%＋3) |
| AC voltage measurement range | 600 V ±(0.7%＋3) |
| LoZ ACV | 600 V ±(2%＋5) |
| ACV LPF | 600 V ±(2%＋5) |
| DC current | 20 A ±(0.8%+3) |
| AC current | 20 A ±(1%+3) |
| Resistance | 60MΩ ±(0.8%+2) |
| Capacitance | 60mF ±(3%+5) |
| Frequency | 10Hz~1MHz ±(0.1%+4) |
| Duty cycle | 0.1%~99.9% ±(2%＋5) |
| True RMS | Yes |
| Sampling frequency | 3 times/second |
| Protection rating | IP65 / 2 m drop test |
| Power supply | 9V battery |
| LCD display size | 58 x 42 mm |
| Dimensions | 180 x 87 x 59 mm |
| Weight | 428 g |
| EAN | 6935750519103 |
|---|
What is the protection rating of the UNI-T UT191E?
The multimeter housing meets the IP65 standard for dust and water resistance and has passed a 2-meter drop test.
What are the maximum voltage and current measurement limits?
The device measures AC/DC voltage up to 600 V and AC/DC current up to 20 A.
What type of battery powers the UT191E?
The multimeter is powered by a 9V battery.
